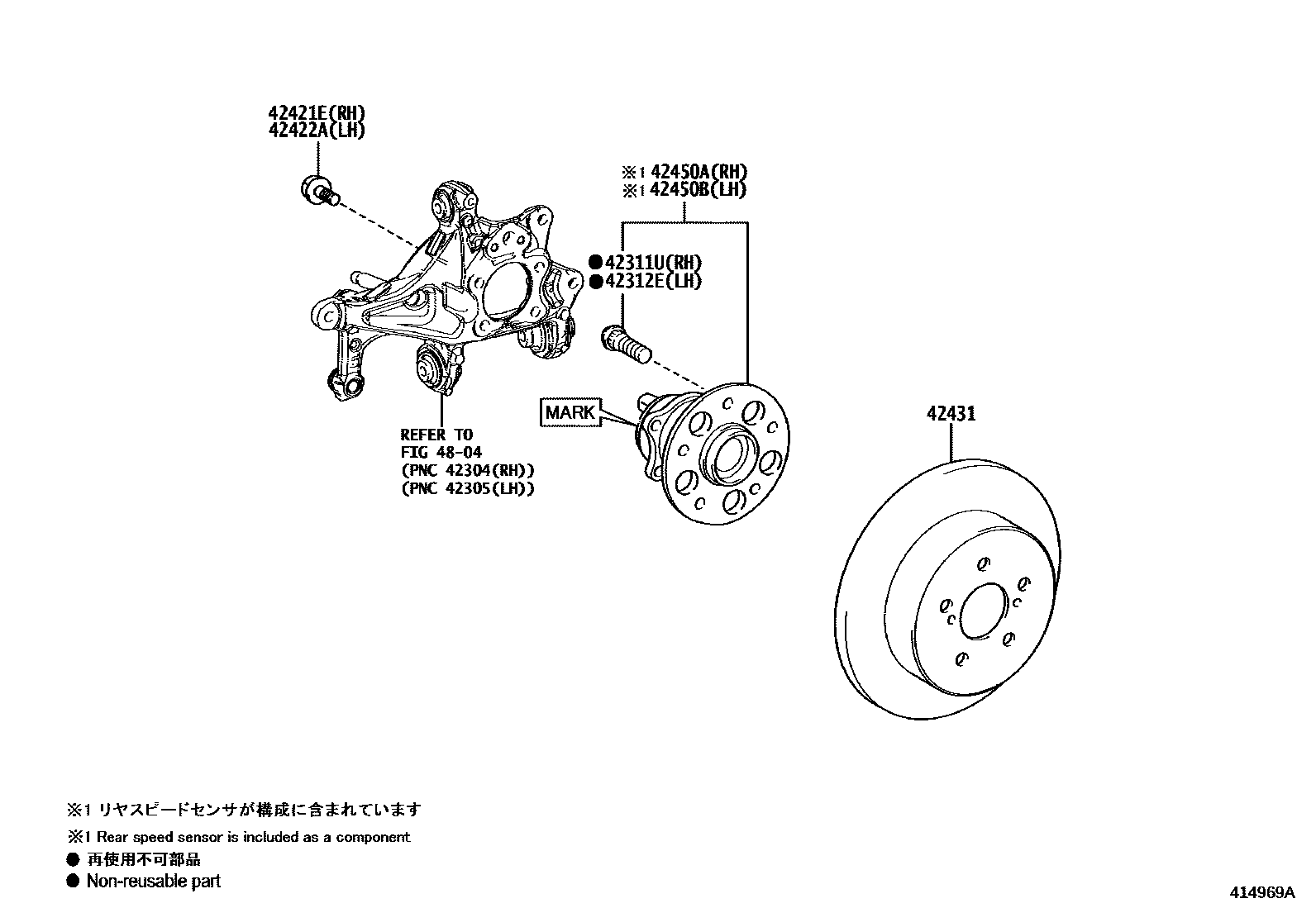

REAR AXLE SHAFT & HUB
42311UBOLT, HUB(FOR REAR AXLE RH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42421EBOLT (FOR REAR AXLE BEARING CASE RH)
42422ABOLT (FOR REAR AXLE BEARING CASE LH)
main90105-12406×4iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
42431DISC, REAR
main42431-42080×2iAXAH52..LHD..M..EUR;AXAH54,MXAA52..X..GCC;AXAA5#,AXAL5#..EUR,GCC;MXAA54..JPP..(GCC,RUS);AXAH52..(G,P,X)..(EUR,GCC);AXAH54..LHD..(G,M,P,V)..(EUR,GCC)202310
main42431-78010×2iMXAA52..X..(ARL,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,MXAA54..ARL,GEN,SA202310
42450AHUB & BEARING ASSY, REAR AXLE, RH
main42410-47050iAXAA54,AXAL54..JPP;AXAH54..LHD..(G,M,P,V)..EUR;AXAH54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA); MXAA54..EUR202310
MARK=89544-33020
main42450-42060iMXAA52..JPP..CVT;AXAL52..(G,M,P)..EUR;MXAA52..LHD..6F..GEN;AXAH52..X..(ARL,GCC,GEN);AXAH52,AXAL52..LHD..X..EUR;AXAH52..(G,M,P)..(ARL,EUR);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
42450BHUB & BEARING ASSY, REAR AXLE, LH
main42410-42060iMXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;MXAA54..JPP..(M,V,X);AXAA54..ARL,GCC,GEN,SA;AXAH54,AXAL54..ARL,EUR,GCC,GEN201811-202007
main42410-47050iAXAA54,AXAL54..JPP;AXAH54..LHD..(G,M,P,V)..EUR;AXAH54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA); MXAA54..EUR202310
MARK=89544-33020
main42450-42060iMXAA52..JPP..CVT;AXAL52..(G,M,P)..EUR;MXAA52..LHD..6F..GEN;AXAH52..X..(ARL,GCC,GEN);AXAH52,AXAL52..LHD..X..EUR;AXAH52..(G,M,P)..(ARL,EUR);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
7 parts on this diagram · 3 diagrams in section
