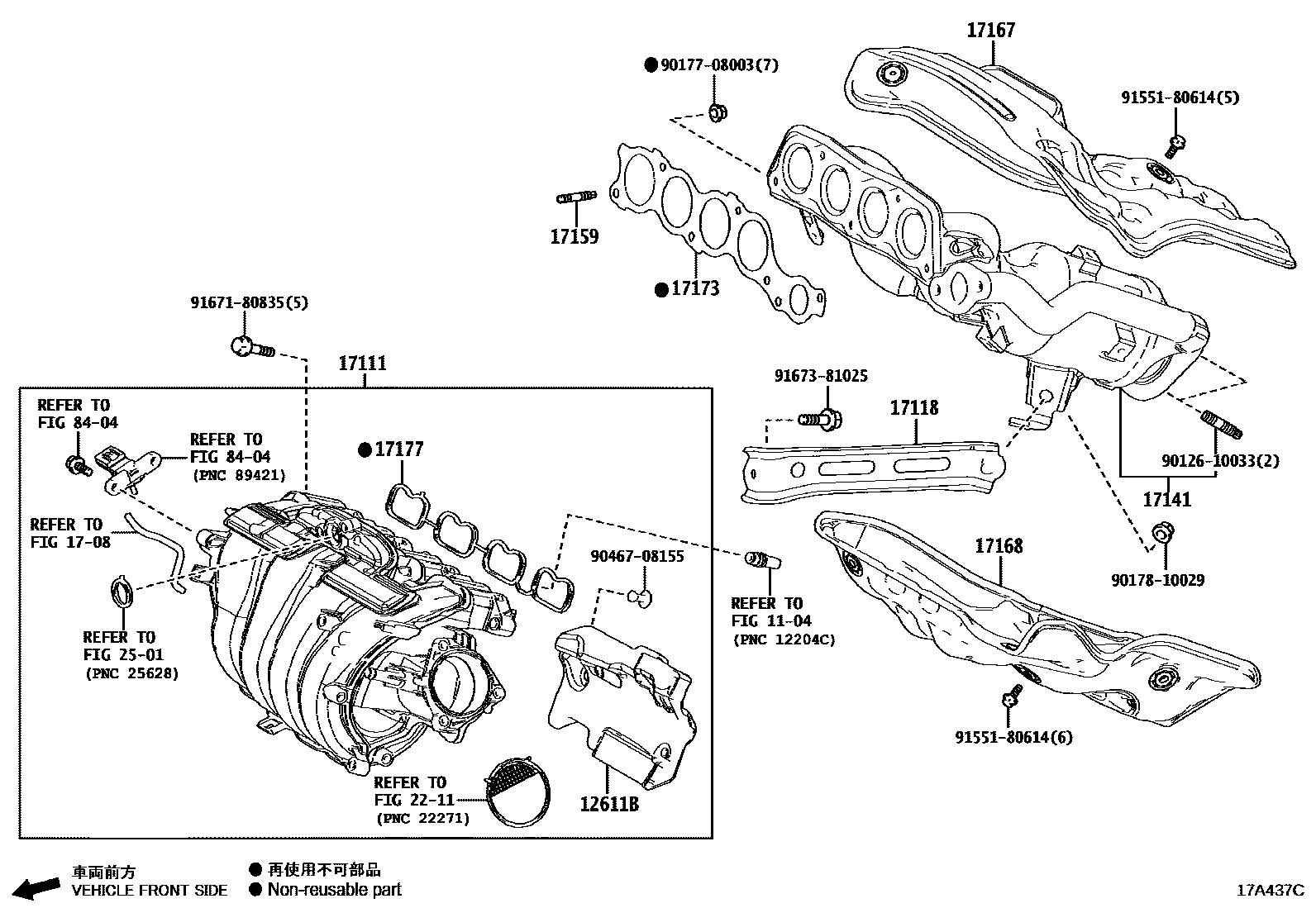

MANIFOLD
1104CYLINDER HEAD
12611BCOVER, ENGINE, NO.1
1708VACUUM PIPING
17111MANIFOLD, INTAKE
main17120-24010iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS..MXAA54..JPP..LHD..6F..(M,X)202008-202210
main17120-25020iA25AFXS..AXAL5#..ARL;A25AFXS..AXAH5#..RHD..M..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202008-202111
17118STAY, MANIFOLD
main17118-24020iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS..MXAA54..JPP..LHD..6F..(M,X)202008-202210
main17118-25030iA25#..AXAA52,AXAH5#,AXAL5#;A25AFKS..AXAA54..JPP..LHD..M;A25AFKS..AXAA54..JPP..(G,V,X)202210-202310
17141MANIFOLD, EXHAUST
main17141-24080supersedes 17141-24330iM20AFKS..MXAA52..ARL; M20AFKS..MXAA52..X..ARL; M20AFKS..MXAA54..GCC,GEN,SA;M20AFKS..MXAA52..X..(GCC,GEN);M20AFKS..MXAA52..(G,M)..(GEN,SA)202310
OCEANIA OTHERS SPEC; PAPUA NEW GUINEA, SAMOA SPEC
MARK = Y4
*114=*587
main17141-24330iM20AFKS..MXAA5#..JPP..(ARL,RUS); M20AFKS..MXAA52..LHD..G; M20AFKS..MXAA54..LHD..V;M20AFKS..MXAA52..LHD..CVT..X..GEN; M20AFKS..MXAA54..M..GCC;M20AFKS..MXAA52..LHD..CVT..M..GEN;M20AFKS..MXAA52..LHD..X..(GCC,GEN);M20AFKS..MXAA54..LHD..(G,V,X)..(GCC,GEN)202210-202310
EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS),MARK = Y8; EXHAUST EMISSION CONTROL-TAIWAN6,WITH(ON BOARD DIAGNOSIS),MARK = Y8; MARK = Y8; TAIWAN SPEC,MARK = Y8
main17141-25141iA25AFKS..AXAA52;A25AFKS..AXAA54..JPP..LHD..M;A25AFKS..AXAA54..JPP..(G,V,X)202210-202301
main17141-25150iA25AFXS..AXAH52..G..ARL;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH5#,AXAL5#..LHD..EUR;A25AFXS..AXAH52..(M,X)..(ARL,GEN);A25AFXS..AXAH54,AXAL5#..ARL,GCC,GEN201811-202007
*114=TOYOTA/25150/Y
main17141-25151iA25AFXS..AXAH52..LHD;A25AFXS..AXAH54..G..GEN;A25AFXS..AXAH5#..ARL,GCC;A25AFXS..AXAH54..LHD..EUR;A25AFXS..AXAH54..LHD..M..GEN202008-202112
*114=TOYOTA/25150/Y
main17141-25180iA25AFXS..AXAH5#..RHD..EUR; A25AFXS..AXAH52..LHD..EUR; A25AFXS..AXAH54..LHD..EUR201902-201905
*114=TOYOTA/25180/Y; *114=TOYOTA/25180/Y,EXHAUST EMISSION CONTROL-EURO6D,WITH(OBD),WITH(GPF); *114=TOYOTA/25180/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)
*114=TOYOTA/25180/Y; *114=TOYOTA/25180/Y,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)
*114=TOYOTA/25180/Y
main17141-25580iA25AFXS..AXAH5#,AXAL5#..LHD..X..EUR;A25AFXS..AXAH5#,AXAL5#..(G,M,P,V)..EUR202112-202210
*114=TOYOTA/25580/Y
main17141-25620iA25AFXS..AXAH5#..ARL,GCC,GEN,SA; A25AFXS..AXAH5#..LHD..EUR; A25AFXS..AXAH52..LHD..(G,M)..EUR;A25AFXS..AXAH54..LHD..(G,M,V,X)..EUR; A25AFXS..AXAH54..LHD..(G,M,X)..EUR202210-202301
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&AZERBAIJAN,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS); REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&EXCEPT WVTA COUNTRY&EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS); REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&EXCEPT WVTA COUNTRY&IRAN SPEC&EXHAUST EMISSION CONTROL-EURO6 UNDER,WITHOUT(ON BOARD DIAGNOSIS); REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&UKRAINE,MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO6 UNDER,WITH(ON BOARD DIAGNOSIS)
main17141-25630iA25AFXS..AXAH5#..LHD..EUR; A25AFXS..AXAH52..LHD..GEN;A25AFXS..AXAH5#..ARL,GCC,SA;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN202209-202210
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL
*114=TOYOTA/25160/Y,EXHAUST EMISSION CONTROL-EURO6D,WITH(OBD),WITHOUT(GPF)
*114=TOYOTA/25160/Y,BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS)
BRAZIL SPEC&EXHAUST EMISSION CONTROL-BRAZIL L7,WITH(ON BOARD DIAGNOSIS),MARK 32:REF.ILLUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90126-08052×7iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR; M20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202310
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
main17167-24040supersedes 17167-24050iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202310
REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA)
EXHAUST EMISSION CONTROL-EURO6D,WITH(OBD),WITHOUT(GPF)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
main17168-25040iA25#..AXAA52,AXAH5#,AXAL5#;A25AFKS..AXAA54..JPP..LHD..M;A25AFKS..AXAA54..JPP..(G,V,X)202210-202310
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17171-24020iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
main17171-25010iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202008-202111
2211FUEL INJECTION SYSTEM
2501EXHAUST GAS RECIRCULATION SYSTEM
8404ELECTRONIC FUEL INJECTION SYSTEM
9012610033
main90126-10033
9017708003
main90177-08003
9017810029
main90178-10029
9046708155
main90467-08155
9155180614
main91551-80614
9167180835
main91671-80835
9167381025
main91673-81025
21 parts on this diagram · 5 diagrams in section
