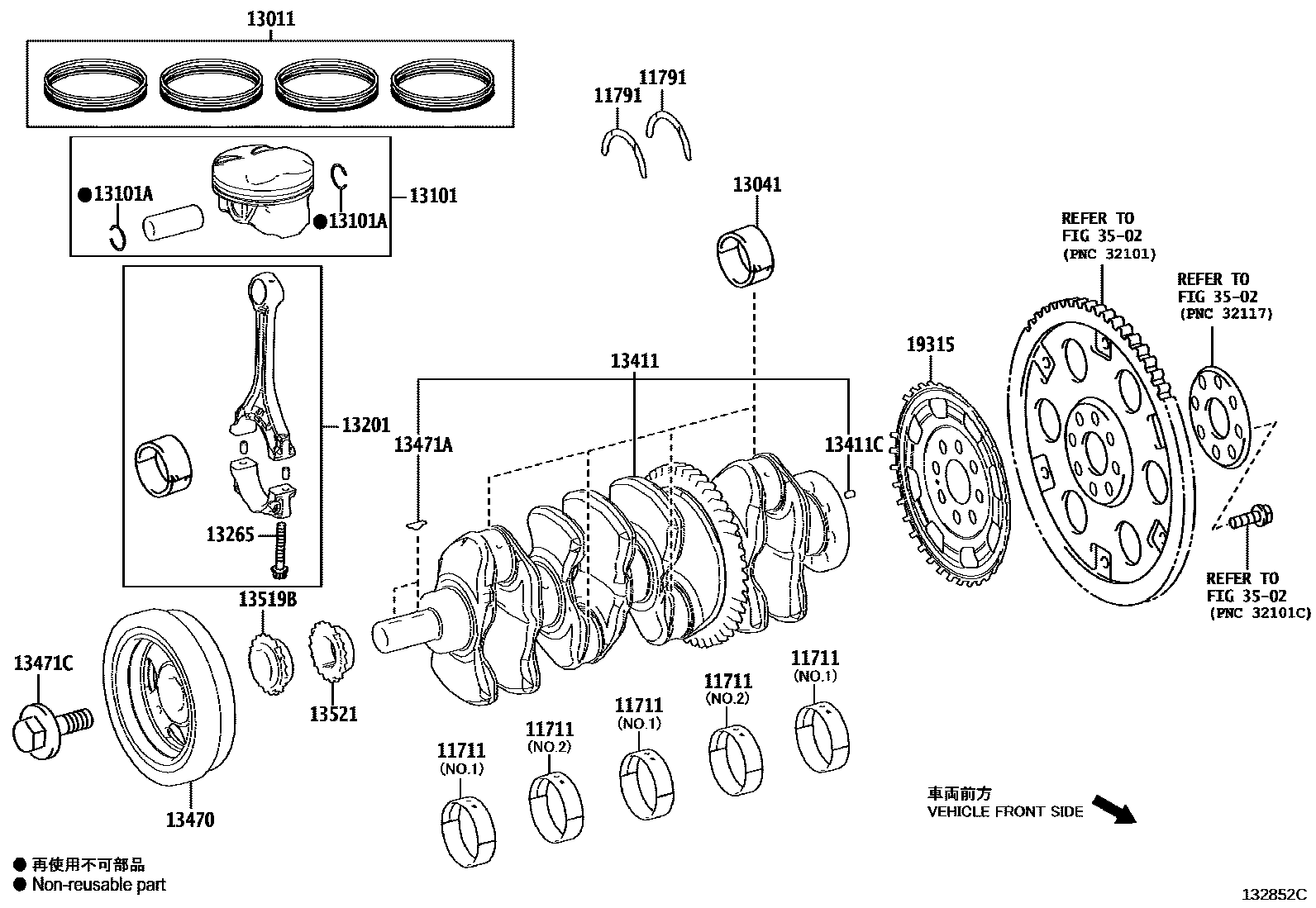

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11711BEARING, CRANKSHAFT

main11701-24010-01×5iM20AFKS..MXAA5#..RUS201811-202009

MARK 1,*132:REFER R/M

main11701-24010-02×5iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

MARK 2,*132:REFER R/M

main11701-24010-03×5iM20AFKS..MXAA5#..JPP202210-202303

MARK 3,REFER REPAIR MANUAL

main11701-24010-04×5iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)201811-202007

MARK 4,*132:REFER R/M

main11701-24010-05×5iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

MARK 5,*132:REFER R/M

main11701-24010-06×5iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

MARK 6,*132:REFER R/M

main11701-24011-01×5iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 1,REFER REPAIR MANUAL

main11701-24011-02×5iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 2,REFER REPAIR MANUAL

main11701-24011-03×5iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)202303

MARK 3,REFER REPAIR MANUAL

main11701-24011-04×5iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202310

MARK 4,REFER REPAIR MANUAL

main11701-24011-05×5iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 5,REFER REPAIR MANUAL

main11701-24011-06×5iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202303-202310

MARK 6,REFER REPAIR MANUAL

main11701-25010-01×5iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202310-202410

MARK 1,NO.1 & NO.2,REF. R/M

main11701-25010-02×3iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201906-202007

MARK 2,NO.1,REFER R/M

main11701-25010-03×5iA25AFKS..AXAA54..RUS202111-202203

MARK 3,NO.1 & NO.2,REF. R/M

main11701-25010-04×3iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN201906-202004

MARK 4,NO.1,REFER R/M

main11701-25010-05×5iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202310

MARK 5,NO.1 & NO.2,REF. R/M

main11701-25020-01×2iA25#..AXAA5#,AXAH5#,AXAL5#202008-202111

MARK 1,NO.2,REFER R/M

main11701-25020-02×2iA25AFKS..AXAA54..RUS201906-202009

MARK 2,NO.2,REFER R/M

main11701-25020-03×2iA25AFKS..AXAA54..RUS201906-202009

MARK 3,NO.2,REFER R/M

main11701-25020-04×2iA25AFKS..AXAA54..RUS201906-202009

MARK 4,NO.2,REFER R/M

main11701-25020-05×2iA25#..AXAA5#,AXAH5#,AXAL5#202008-202111

MARK 5,NO.2,REFER R/M

main11701-F2030-01×5iM20AFKS..MXAA5#..RUS201910-202009

MARK 1,*613:REFER R/M

main11701-F2030-02×5iM20AFKS..MXAA5#..RUS201910-202009

MARK 2,*613:REFER R/M

main11701-F2030-03×5iM20AFKS..MXAA5#..RUS201910-202009

MARK 3,*613:REFER R/M

main11701-F2030-04×5iM20AFKS..MXAA5#..RUS202010-202203

MARK 4,REFER REPAIR MANUAL

main11701-F2030-05×5iM20AFKS..MXAA5#..RUS202010-202203

MARK 5,REFER REPAIR MANUAL

main11701-F2030-06×5iM20AFKS..MXAA5#..RUS202010-202203

MARK 6,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202310

STD

main11791-24030×2iM20AFKS..MXAA5#201811-201905

STD

main11791-25030×2iA25AFXS..AXAH54..RUS201811-201909

STD

main11791-25040×2iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202310

STD

main11791-F2040×2iM20AFKS..MXAA5#..RUS202010-202203

STD

13011RING SET, PISTON

main13011-24040iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

STD

main13011-25080iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202310

STD

main13011-F2020iM20AFKS..MXAA5#..RUS202010-202203

STD

13041BEARING, CONNECTING ROD

main13041-24020-01×4iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS..MXAA54..JPP..LHD..6F..(M,X)202008-202210

MARK 1,REFER REPAIR MANUAL

main13041-24020-02×4iM20AFKS..MXAA5#..RUS201811-202009

MARK 2,*132

main13041-24020-03×4iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)202008-202111

MARK 3,REFER REPAIR MANUAL

main13041-25020-01×4iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202008-202111

MARK 1,REFER REPAIR MANUAL

main13041-25020-02×4iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202310-202410

MARK 2,REFER REPAIR MANUAL

main13041-25020-03×4iA25AFKS..AXAA54..RUS202008-202203

MARK 3,REFER REPAIR MANUAL

main13041-F2010-01×4iM20AFKS..MXAA5#..RUS202010-202203

MARK 1,REFER REPAIR MANUAL

main13041-F2010-02×4iM20AFKS..MXAA5#..RUS202010-202203

MARK 2,REFER REPAIR MANUAL

main13041-F2010-03×4iM20AFKS..MXAA5#..RUS201910-202009

MARK 3,*613

13101PISTON SUB-ASSY, W/PIN

main13101-24040×4iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)201811-202007

STD

main13101-25030×4iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFKS..AXAA52..LHD..(G,M)..GEN;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA)202008-202210

STD

main13101-25040×4iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007

STD

main13101-F2090×4iM20AFKS..MXAA5#..RUS202104-202203

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

main90520-21024×8iA25AFXS..AXAH54..RUS201811-201909

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202310-202410

MARK A,REFER REPAIR MANUAL

main13201-29815-B0×4iA25AFKS..AXAA54..EUR;A25AFXS..AXAH52..RHD..G..GEN201811-202004

MARK B,REFER REPAIR MANUAL

main13201-29815-C0×4iA25AFKS..AXAA54..RUS202008-202203

MARK C,REFER REPAIR MANUAL

main13201-29825-A0×4iM20AFKS..MXAA5#201811-201903

MARK A,REFER REPAIR MANUAL

main13201-29825-B0×4iM20AFKS..MXAA5#201811-201903

MARK B,REFER REPAIR MANUAL

main13201-29825-C0×4iM20AFKS..MXAA5#201811-201903

MARK C,REFER REPAIR MANUAL

main13201-29835-A0×4iM20AFKS..MXAA5#..6F..G..(GEN,SA)201904-201909

MARK A,REFER REPAIR MANUAL

main13201-29835-B0×4iM20AFKS..MXAA5#..6F..G..(GEN,SA)201904-201909

MARK B,REFER REPAIR MANUAL

main13201-29835-C0×4iM20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS..MXAA54..JPP..LHD..6F..(M,X)202008-202210

MARK C,REFER REPAIR MANUAL

main13201-F9010-A0×4iM20AFKS..MXAA5#..RUS202010-202203

MARK A,REFER REPAIR MANUAL

main13201-F9010-B0×4iM20AFKS..MXAA5#..RUS201910-202009

MARK B,REFER REPAIR MANUAL

main13201-F9010-C0×4iM20AFKS..MXAA5#..RUS201910-202009

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020×8iA25#..AXAA5#,AXAH5#,AXAL5#..JPP; M20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

13411CRANKSHAFT

main13401-24020iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)202210

main13401-25010iA25AFXS..AXAH54..RUS201811-201909

main13401-F2040iM20AFKS..MXAA5#..RUS202010-202203

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iA25AFXS..AXAH54..RUS; M20AFKS..MXAA5#..6F..G..(GEN,SA)201811-201909

13470PULLEY ASSY, CRANKSHAFT

main13470-24010iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)202210

main13470-24030iM20AFKS..MXAA5#..RUS202010-202203

main13470-25010iA25AFKS..AXAA54..RUS202008-202203

main13470-25020iA25AFXS..AXAH54..RUS201811-201909

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH5#,AXAL5#..LHD..X..EUR;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA);A25#..AXAA52,AXAH52..LHD..(G,M,P)..GEN;A25AFXS..AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA); M20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS..MXAA54..JPP..LHD..6F..(M,X)202008-202210

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iA25AFKS..AXAA54..RUS; M20AFKS..MXAA5#..RUS202008-202203

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010iM20AFKS..MXAA5#..RUS201811-202009

main13519-25010iA25AFXS..AXAH54..RUS201811-201909

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010iM20AFKS..MXAA5#..RUS201811-202009

main13521-25010iA25AFKS..AXAA54..RUS202008-202203

main13521-F2040iM20AFKS..MXAA5#..RUS202106-202203

(L)

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010iM20AFKS..MXAA54..EUR;M20AFKS..MXAA52..G..EUR;M20AFKS..MXAA52..(M,X)..(EUR,SA)202210

main19315-25010iA25AFXS..AXAH54..RUS201811-201909

main19315-25011iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202008-202111

main19315-F2020iM20AFKS..MXAA5#..RUS202106-202203

(L)

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

17 parts on this diagram · 3 diagrams in section
