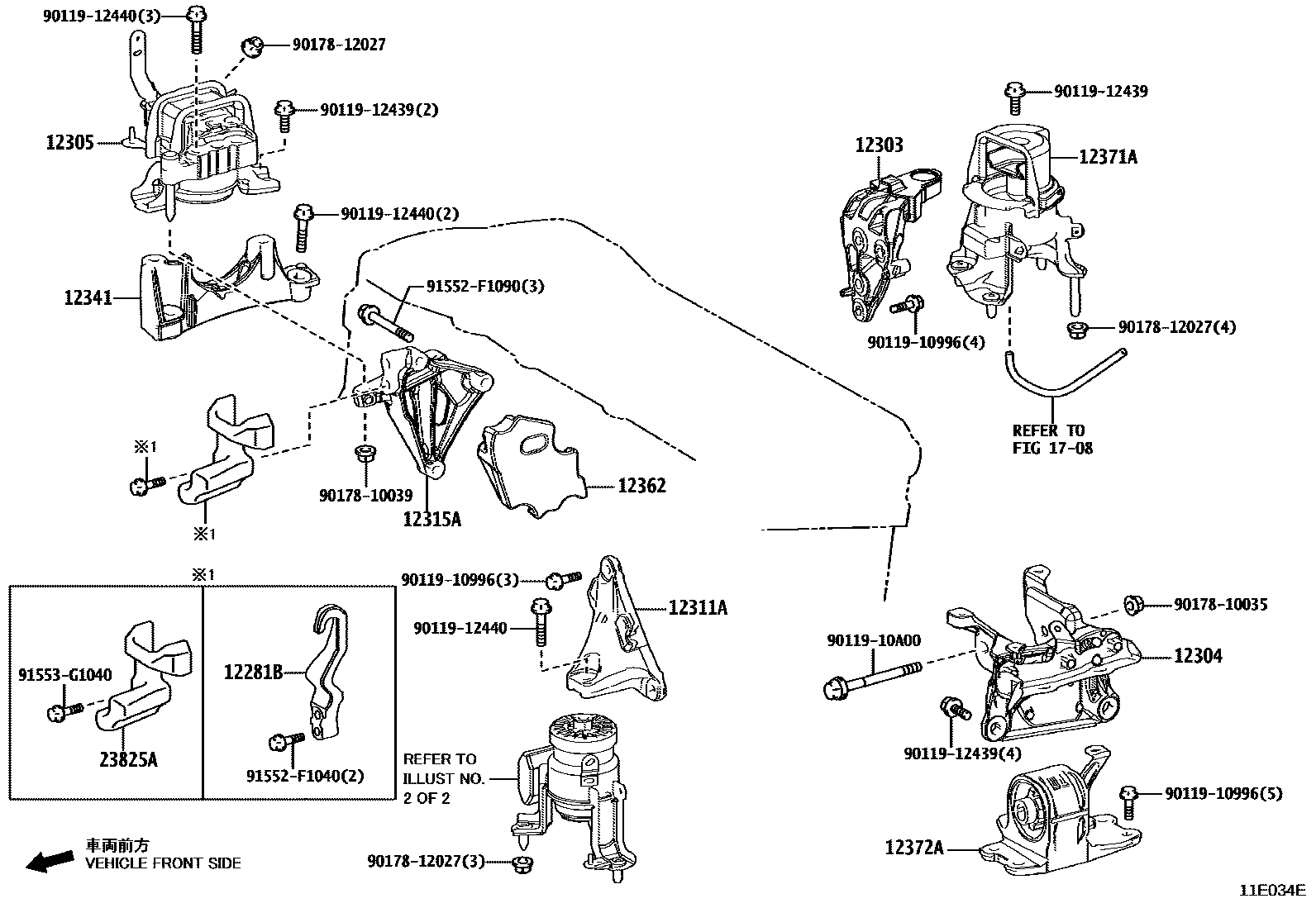

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12281BHANGER, ENGINE, NO.1

main12281-25030iA25AFKS..AXAA54..RUS201811-202410

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-24020iM20AFKS..MXAA52..CVT..RUS201811-202310

main12303-25010iA25AFKS..AXAA52201811-202310

main12303-25020iA25AFXS..AXAH5#,AXAL5#201811-202410

main12321-24050iM20AFKS..MXAA54..CVT..EUR201811-202310

main12321-24060iM20AFKS..MXAA52..RHD..6F..(ARL,GEN)201811-202310

main12321-24070iM20AFKS..MXAA54..6F..RUS201811-202310

12304BRACKET SUB-ASSY, ENGINE MOUNTING, LH

main12304-24010iM20AFKS..MXAA5#..CVT..RUS201811-202310

main12304-24020iM20AFKS..MXAA5#..6F..RUS201811-202310

main12304-25010iA25AFKS..AXAA54..RUS201811-202310

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24030iM20AFKS..MXAA52..CVT..X..(ARL,GCC,GEN);M20AFKS..MXAA52..CVT..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)201811-202310

main12305-24040iM20AFKS..MXAA5#..6F..GEN201811-202310

main12305-25030iA25AFKS..AXAA5#..JPP201811-202310

main12305-25040iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202410

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-24010iM20AFKS..MXAA5#..CVT..RUS201811-202310

main12311-24020iM20AFKS..MXAA5#..RHD..6F..(ARL,GEN)201811-202310

main12311-25070iA25AFKS..AXAA54..RUS201811-202310

main12311-25080iA25AFXS..AXAL5#..ARL;A25AFXS..AXAH5#..RHD..M..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR201811-202410

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24020iM20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)201811-202310

main12315-25030iA25AFXS..AXAH54..RUS201811-202003

main12315-25031iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202003-202410

main12315-F2030iM20AFKS..MXAA5#..RUS201910-202203

12341SPACER, ENGINE MOUNTING

main12341-25010iM20AFKS..MXAA5#..RUS201811-202410

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-25010iA25AFKS..AXAA5#201811-201906

main12362-25011iA25AFKS..AXAA54..RUS201907-202310

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-24060iM20AFKS..MXAA5#..6F..GEN201811-202310

main12371-25050iM20AFKS..MXAA52..CVT..RUS201811-202310

main12371-25060iA25AFKS..AXAA54..JPP201901-202310

main12371-25070iA25AFXS..AXAL5#;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR201811-202410

main12371-25090iA25AFKS..AXAA54..EUR,GCC,GEN201811-201908

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-25020iA25AFXS..AXAL5#..ARL;A25AFXS..AXAH5#..RHD..M..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR201811-202410

main12306-25030iA25AFKS..AXAA52..RHD;A25AFKS..AXAA52..X..GEN201811-202310

main12372-24040iM20AFKS..MXAA5#..CVT..RUS201811-202310

main12372-24050iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202310

main12372-25030iA25AFKS..AXAA54..G..ARL;A25AFKS..AXAA54..RHD..V..GEN201811-202310

1708VACUUM PIPING

→ Go to FIG 17-08

23825AGUARD, FUEL DELIVERY

main23825-24010iM20AFKS..MXAA5#..6F..G..(GEN,SA)201811-202310

main23825-25010iA25#..AXAA5#,AXAH5#,AXAL5#..JPP201811-202410

9011910996

main90119-10996

9011910A00

main90119-10A00

9011912439

main90119-12439

9011912440

main90119-12440

9017810035

main90178-10035

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91553G1040

main91553-G1040

22 parts on this diagram · 7 diagrams in section
