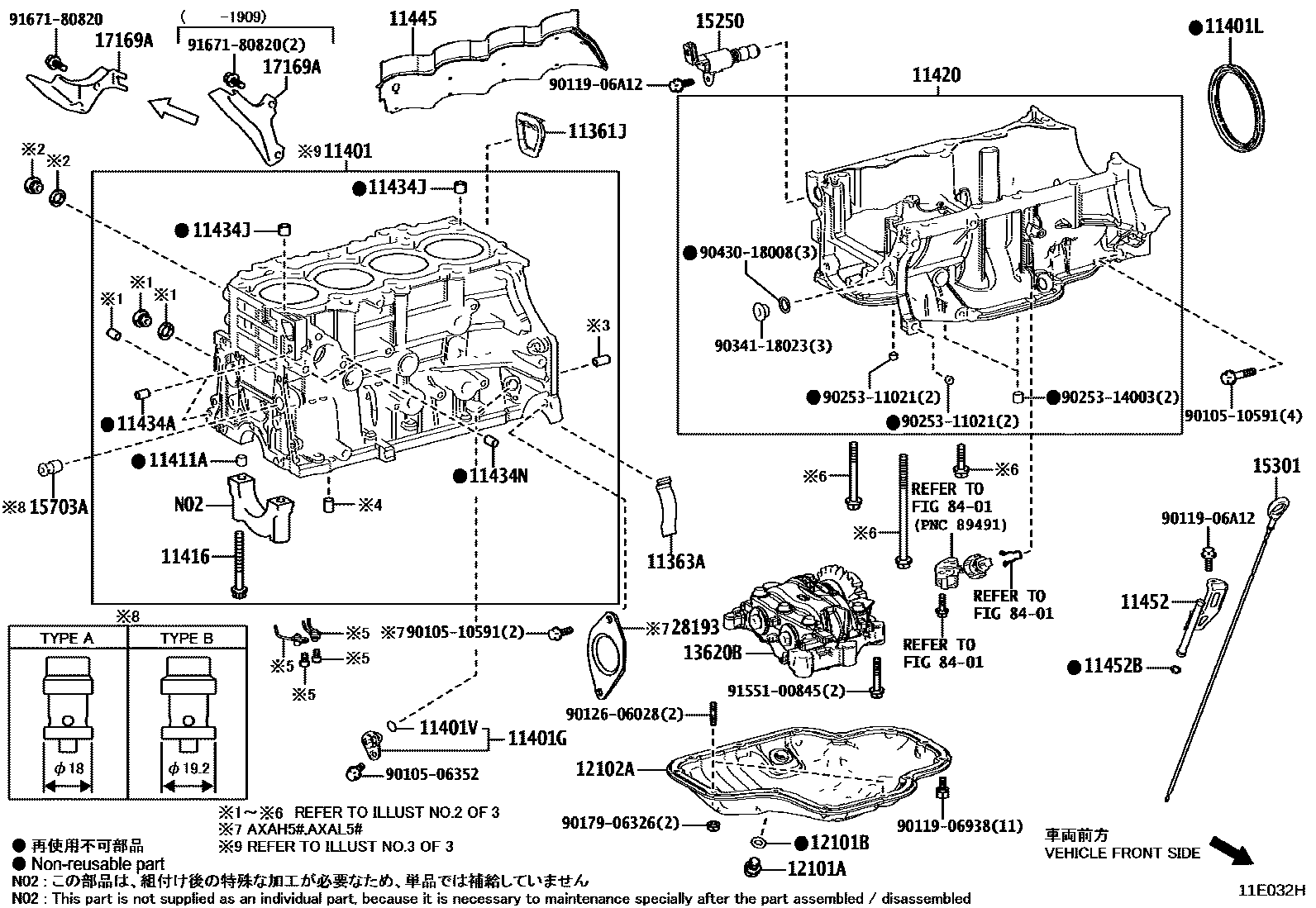

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
main11361-25010iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR; M20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)202008-202111
11363ACOVER, FLYWHEEL HOUSING SIDE
main11363-33010iA25AFXS..AXAH52..M,X;A25AFXS..AXAH52..LHD..G..GEN;A25AFXS..AXAH52..G..(ARL,EUR);A25AFKS..AXAA5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54,AXAL5#..ARL,EUR,GCC,GEN; M20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA5#..6F..G..EUR;M20AFKS..MXAA54..JPP..CVT..G;M20AFKS..MXAA54..JPP..(M,V,X);M20AFKS..MXAA52..JPP..6F..(M,X)201811-202007
11401BLOCK SUB-ASSY, CYLINDER
main11410-29505iA25AFKS..AXAA52..X..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25#..AXAA52,AXAH52..RHD..GEN202008-202111
TYPE A:REFER ILLUST.
main11410-29515iA25AFKS..AXAA52..RHD;A25AFKS..AXAA54..RHD..V..GEN; A25AFKS..AXAA52..X..GEN; A25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202008-202111
COLOMBIA SPEC,TYPE A:REFER ILLUST.; ECUADOR SPEC,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.; ZAMBIA,KENYA,UGANDA,TANZANIA,ZIMBABWE,TYPE A:REFER ILLUST.
main11410-29675iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
main11410-29685supersedes 11410-29515iA25AFXS..AXAH52..P..GEN; A25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202310-202410
PARAGUAY SPEC,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL&UKRAINE,MOLDOVA SPEC
EGYPT SPEC; MOROCCO SPEC
PANAMA SPEC,TYPE B:REFER ILLUST.
11401GSENSOR, CRANK POSITION
LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN
11401LSEAL, ENGINE REAR OIL
main90311-90010iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR; M20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)202008-202111
(L)
11401VO-RING, CRANK POSITION SENSOR
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
main90253-14003×10iA25#..AXAA5#,AXAL5#..JPP;A25AFXS..AXAH52..LHD..M..EUR;A25AFXS..AXAH52..(G,P,X)..EUR;A25AFXS..AXAH5#..ARL,GCC,GEN,SA;A25AFXS..AXAH54..LHD..(G,M,P,V)..EUR202310
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02197×10iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR; M20AFKS..MXAA54..(G,V)..GCC;M20AFKS..MXAA5#..RHD..6F..(ARL,GEN)202008-202111
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
main90253-13017×2iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202310
main90253-14003×2iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202008-202111
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
main11445-24010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
main11445-25010iA25AFXS..AXAH54..X..EUR;A25AFXS..AXAH54..RHD..EUR;A25AFXS..AXAH52..RHD..M..EUR202310-202410
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012iA25#..AXAA5#,AXAH5#,AXAL5#..JPP; M20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
main12102-25010iA25AFXS..AXAL5#..ARL;A25AFKS..AXAA54..G..ARL;A25AFKS..AXAA52..X..GEN;A25AFXS..AXAH54..RHD..M..GEN;A25AFKS..AXAA54..RHD..V..GEN;A25#..AXAA52,AXAH52..RHD..GEN;A25AFXS..AXAH5#,AXAL5#..RHD..X..EUR202008-202111
13620BBALANCER ASSY, ENGINE
main13620-24010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202310
15250VALVE ASSY, OIL PRESSURE CONTROL
15301GAGE SUB-ASSY, OIL LEVEL
15703AVALVE SUB-ASSY, OIL NOZZLE
main15703-25011iA25AFKS..AXAA52..GCC;A25AFKS..AXAA54..LHD..V;A25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFKS..AXAA54..(M,V,X)..ARL;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH5#,AXAL5#..LHD..X..EUR;A25AFKS..AXAA54..(G,M,X)..(GCC,GEN,SA);A25#..AXAA52,AXAH52..LHD..(G,M,P)..GEN;A25AFXS..AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA); M20AFKS..MXAA52..JPP..CVT;M20AFKS..MXAA52..6F..(EUR,SA);M20AFKS..MXAA52..LHD..6F..GEN;M20AFKS..MXAA54..JPP..CVT..(M,X);M20AFKS..MXAA54..(G,V)..(EUR,GEN,SA);M20AFKS..MXAA54..JPP..LHD..6F..(M,X)202008-202210
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
main17169-24010iM20AFKS..MXAA52..X..(ARL,GCC,GEN);M20AFKS..MXAA52..(G,M)..(ARL,GEN,SA);M20AFKS..MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
28193INSULATOR, STARTER HOLE
main28193-25010iA25AFXS..AXAH54..(G,P)..GEN;A25AFXS..AXAH54..LHD..M..GEN;A25AFXS..AXAL5#..(G,M,P,V)..EUR;A25AFXS..AXAH5#..X..(ARL,GCC,GEN);A25AFXS..AXAH52..LHD..(G,M,P)..GEN;A25AFXS..AXAH5#,AXAL5#..LHD..X..EUR;A25AFXS..AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA)202008-202210
8401SWITCH & RELAY & COMPUTER
9010506352
main90105-06352
9010510591
main90105-10591
9011906938
main90119-06938
9011906A12
main90119-06A12
9012606028
main90126-06028
9017906326
main90179-06326
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
9043018008
main90430-18008
9155100845
main91551-00845
9167180820
main91671-80820
38 parts on this diagram · 5 diagrams in section
