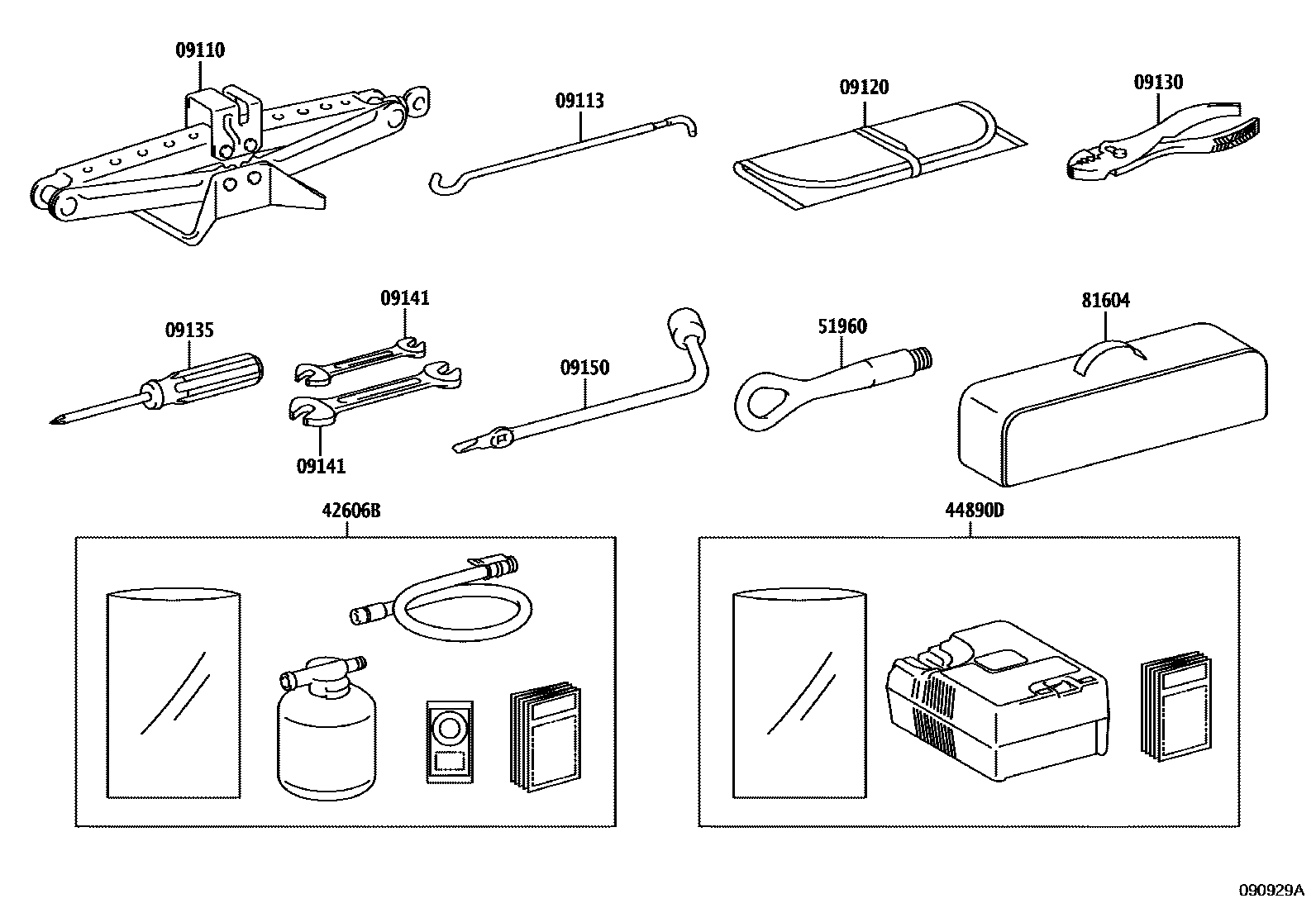

STANDARD TOOL
09110JACK ASSY
main09111-42050iAXAA5#,AXAH5#,AXAL5#,MXAA5#..EUR,GCC,GEN,SA; MXAA52..LHD..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR202008-202108
JACK-WITHOUT&SPARE TIRE-REPAIR KIT
09113HANDLE, JACK
09120BAG, TOOL
09130PLIERS
09135DRIVER, SCREW
09141SPANNER
8 X 10
12 X 14
09150WRENCH, HUB NUT BOX
main09150-42010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
42606BREPAIR KIT, TUBELESS TIRE
main42606-12040iAXAH52..X..GEN;AXAH54..P..GEN; MXAA54..LHD..V;AXAH52..(G,M,P)..GEN;AXAH54,MXAA52..LHD..CVT..(G,X)..GEN202210-202211
SPARE TIRE-REPAIR KIT,TYPE A:REFER ILLUST.; TAIWAN SPEC&SPARE TIRE-REPAIR KIT,TYPE A:REFER ILLUST.
SPARE TIRE-REPAIR KIT
SPARE TIRE-REPAIR KIT,TYPE A:REFER ILLUST.
SPARE TIRE-REPAIR KIT
main42606-F4041iMXAA52..LHD..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(G,M,P,V)..EUR202109-202210
SPARE TIRE-REPAIR KIT,TYPE B:REFER ILLUST.
44890DCOMPRESSOR ASSY, AIR
main44890-12011iMXAA52..LHD..EUR;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(G,M,P,V)..EUR202111-202209
SPARE TIRE-REPAIR KIT
SPARE TIRE-REPAIR KIT; TAIWAN SPEC&SPARE TIRE-REPAIR KIT
main44890-30030iMXAA52..6F..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..EUR;MXAA52..LHD..CVT..(G,M)..EUR; MXAA52..X..EUR201811-202007
SPARE TIRE-REPAIR KIT; TIRE & DISC WHEEL-225/60R18,SUMMER TIRE,ALUMI&SPARE TIRE-REPAIR KIT; TIRE & DISC WHEEL-225/65R17,SM/CF,ALUMI&SPARE TIRE-REPAIR KIT; TIRE & DISC WHEEL-225/65R17,SUMMER TIRE,ALUMI&SPARE TIRE-REPAIR KIT; TIRE & DISC WHEEL-225/65R17,SUMMER TIRE,STEEL&SPARE TIRE-REPAIR KIT
main44890-42050iAXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..EUR; MXAA54..LHD..V;AXAH52..(G,M,P)..GEN;AXAH54,MXAA52..LHD..CVT..(G,X)..GEN202211-202310
SPARE TIRE-REPAIR KIT,TYPE A:REFER ILLUST.; TAIWAN SPEC&SPARE TIRE-REPAIR KIT,TYPE A:REFER ILLUST.
51960HOOK ASSY, FRONT
main51961-42060iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
81604REFLECTOR SET, TRIANGLE
FIRST-AID KIT PLACE-WITH
FIRST-AID KIT PLACE-WITH
11 parts on this diagram · 3 diagrams in section
