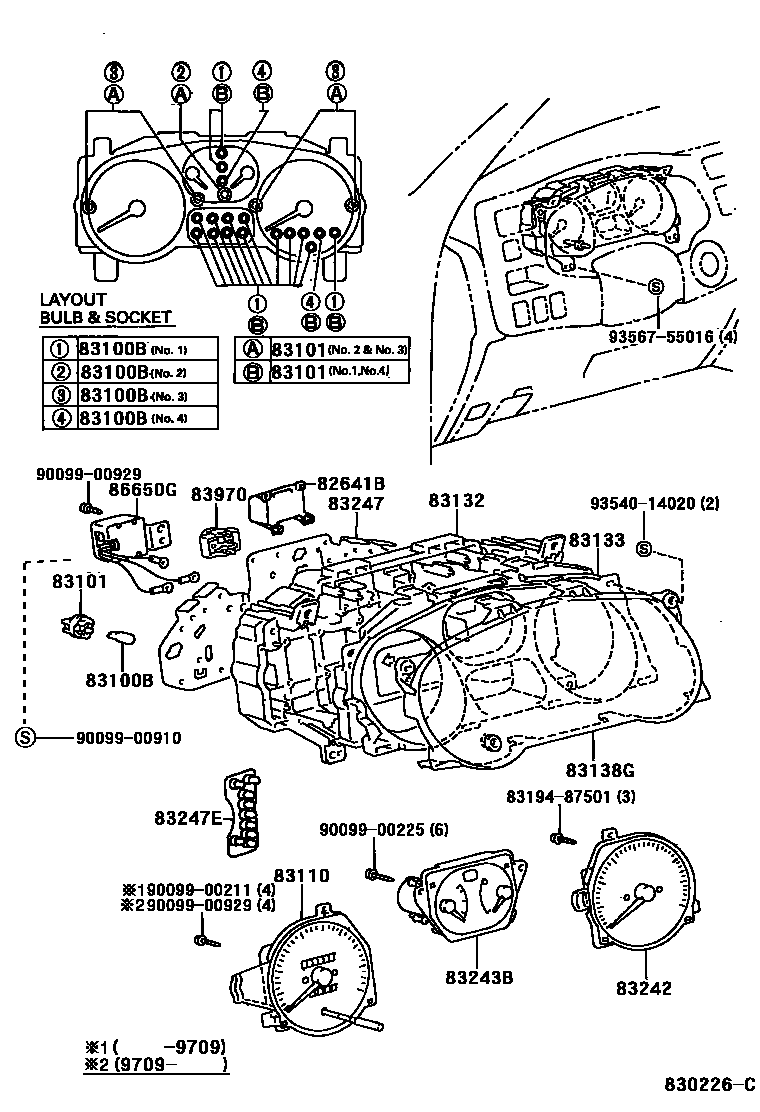

METER

0001 1COMBINATION METER 0002 1SPEED SENSOR & CLOCK

82641BRELAY, INTEGRATION (FOR METER)

main83888-42360iSXA11;SXA10..ARL,EUR,GEN199709

W(ILLUMINATED ENTRY SYSTEM)

main83888-42510iSXA1#..GCC199709

main83888-42660iSXA1#..GEN199709

83100BBULB, COMBINATION METER, NO.1

main83101-20080iSXA1#199802

12V 1.4W,W(SOCKET)

main83119-32010iSXA1#199404

14V 3.0W,NO.2

main83119-42010iSXA1#199404

14V 3.0W,W(CAP),NO.3

main90099-53009iSXA1#..MTM..(ARL,EUR,GEN)199404-199802

14V0.84W W/O(SOCKET),NO.4

main90099-53009iSXA1#199802

14V0.84W W/O(SOCKET)

main90981-11018iSXA1#..ATM..EUR199404-199709

12V 1.2W W/O SOCKET,NO.1

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iSXA10..ATM..GEN199404-199802

NO.1 & NO.4

main83101-32020iSXA1#199404

NO.2 & NO.3

83110SPEEDOMETER ASSY

main83110-42020iSXA1#..ARL,GEN199404-199709

main83110-42030iSXA1#..GEN199404-199709

MILE/H + (KM/H) DUAL READ

main83110-42040iSXA1#..LHD..(EUR,GCC)199404-199709

main83110-42040iSXA10..RHD..EUR199504-199709

HONGKONG SPEC

main83110-42040iSXA11..RHD..EUR199508-199608

SINGAPORE SPEC

main83110-42040iSXA1#..RHD..GEN199505-199709

SOUTH AFRIKA SPEC

main83110-42040iSXA11..RHD..EUR199608-199709

HONG KONG SPEC OR SINGAPORE SPEC

main83220-42040iSXA10..ARL..CVT199712

main83220-42040iSXA1#..(ARL,GEN)..HT199709

CHINA SPEC

main83220-42050iSXA1#..LHD..GEN;SXA1#..RHD..(EUR,GEN)199709

main83220-42060iSXA1#..RHD..EUR199709

KM/H

main83220-42060iSXA1#..RHD..EUR199709

SOUTH AFRIKA SPEC

83132CASE, COMBINATION METER

main83132-42030iSXA1#..EUR,GEN199404-199608

main83132-42050iSXA1#..ARL199404-199608

main83841-42060iSXA10..GCC199601-199709

main83841-42160iSXA1#..EUR199608-199709

main83841-42200iSXA1#..ARL199608-199709

main83841-42360iSXA10..GCC;SXA11..MTM..GCC;SXA11..ATM..(GCC,GEN)199709

main83841-42390iSXA1#..MTM..(EUR,GEN)199709

W(WATER TEMPERATURE GAUGE)

main83841-42450iSXA1#..ATM..EUR199709

W(WATER TEMPERATURE GAUGE)

main83841-42490iSXA1#..MTM..ARL199709

main83841-42500iSXA1#..ATM..ARL199709

83133PLATE, COMBINATION METER, NO.1

main83133-42010iSXA1#199404

83138GGLASS, COMBINATION METER

main83138-42010iSXA1#199404-199709

main83852-42360iSXA1#199709

83242TACHOMETER ASSY, ENGINE

main83242-42030iSXA1#..GEN199404-199608

main83242-42050iSXA1#..ARL,EUR199404-199608

main83881-42060iSXA10..GCC199601-199608

main83881-42100iSXA1#..GEN199608-199709

main83881-42160iSXA1#..EUR199608-199709

main83881-42200iSXA1#..ARL199608-199709

main83881-42240iSXA10..GCC199608-199709

main83881-42390iSXA1#..ARL,EUR,GEN199709-200002

main83881-42390iSXA11..GCC199709

W(WATER TEMPERATURE GAUGE)

main83881-42490iSXA1#..ARL200002

main83881-42550iSXA1#..GCC199709

83243BGAUGE ASSY, COMBINATION

main83243-42030iSXA1#..ARL,EUR,GEN199404-199709

MIDDLE EAST SPEC

main83243-42050iSXA10..ATM..GCC;SXA1#..LHD..MTM..(GCC,GEN)199404-199709

main83882-42160iSXA1#..EUR199608-199709

main83882-42200iSXA1#..ARL199608-199709

main83882-42360iSXA11..MTM..GCC199709

W(WATER TEMPERATURE GAUGE)

main83882-42400iSXA1#..ATM..(ARL,EUR,GEN)199709

W(WATER TEMPERATURE GAUGE)

main83882-42430iSXA1#..MTM..GCC199709

W(WATER TEMPERATURE GAUGE)

main83882-42560iSXA1#..ATM..GCC199709

83247PLATE, METER CIRCUIT

main83247-42030iSXA1#..GEN199404-199608

main83247-42050iSXA1#..ARL,EUR199404-199608

main83861-42060iSXA10..MTM..GCC199601-199709

main83861-42070iSXA10..ATM..GCC199601-199709

main83861-42100iSXA1#..MTM..GEN199608-199709

main83861-42110iSXA10..ATM..GEN199608-199709

main83861-42160iSXA1#..MTM..(ARL,EUR)199608-199709

main83861-42170iSXA1#..ATM..(ARL,EUR)199608-199709

main83861-42390iSXA1#..MTM..GEN199709

main83861-42400iSXA11..ATM..GEN199709

main83861-42450iSXA1#..ATM..(ARL,EUR)199709

W(WATER TEMPERATURE GAUGE)

main83861-42480iSXA11..MTM..GCC199709

W(WATER TEMPERATURE GAUGE)

main83861-42550iSXA1#..MTM..GCC199709

main83861-42560iSXA1#..ATM..GCC199709

83247EPLATE, MATER CIRCUIT, NO.4

main83866-42400iSXA1#..ATM199709

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iSXA1#..MTM199404-199709

86650GBUZZER ASSY

main86650-30110iSXA10..GCC199601-199709

main86650-42010iSXA1#..GCC199709

8319487501

main83194-87501

9009900211

main90099-00211

9009900225

main90099-00225

9009900910

main90099-00910

9009900929

main90099-00929

9354014020

main93540-14020

9356755016

main93567-55016

20 parts on this diagram · 2 diagrams in section
