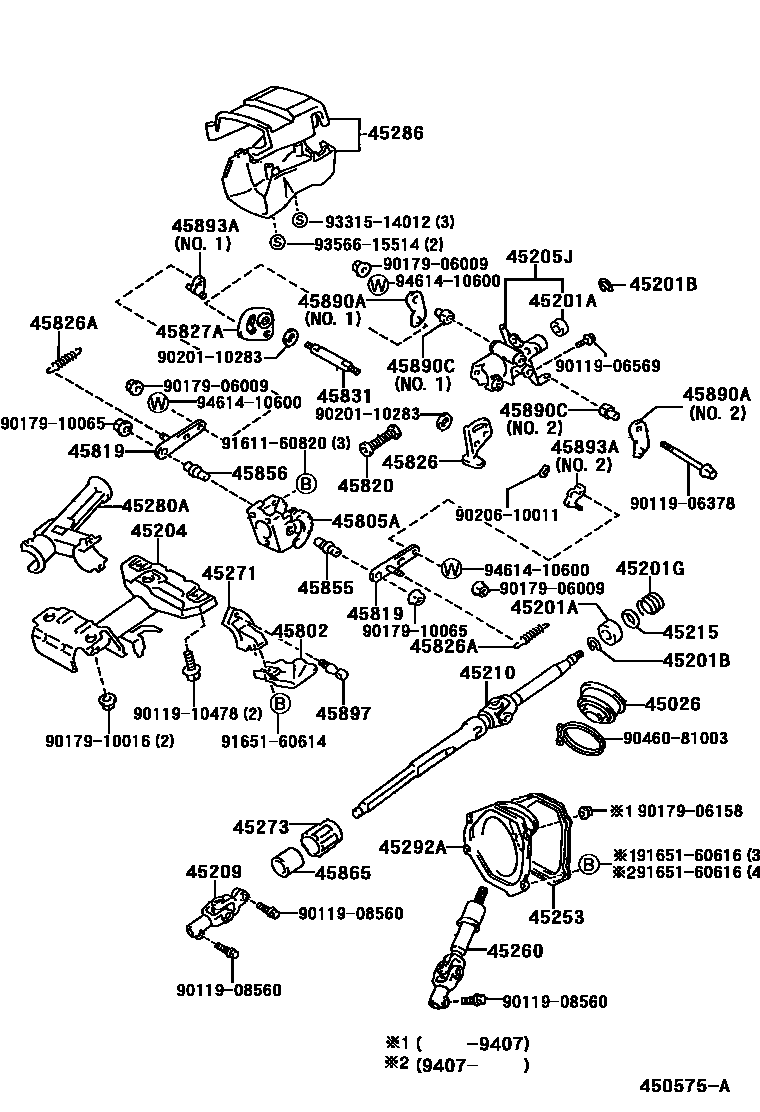

STEERING COLUMN & SHAFT

0001 1W(TILT STEERING) 0002 1W/O(TILT STEERING) 0003 1W(TILT STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-42010iSXA1#199404

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005×2iSXA1#199404-199608

main90363-18009iSXA1#199608

UPPER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iSXA1#199404-199608

T=1.20,W(TILT STEERING)

main90520-17269iSXA1#199404

T=1.20,NO.1

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iSXA1#199404

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-42010iSXA1#..RHD199404-199608

main45204-42020iSXA1#..LHD199404-199608

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-42010iSXA1#..LHD199404-199608

main45205-42020iSXA1#..RHD199404-199608

main45205-42030iSXA1#199608

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iSXA1#199404

45210SHAFT ASSY, STEERING MAIN

main45210-12400iSXA1#199404-199608

W(TILT STEERING)

main45210-20260iSXA1#199404

W/O(TILT STEERING)

main45210-35170iSXA1#199608

W(TILT STEERING)

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iSXA1#199404

45253COVER, STEERING COLUMN HOLE

main45253-42010iSXA1#..LHD199404

main45253-42020iSXA1#..RHD199404

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42010iSXA1#..LHD199404-199608

main45260-42020iSXA1#..RHD199404-199608

main45260-42030iSXA1#..LHD199608

main45260-42040iSXA1#..RHD199608

45271CLAMP, STEERING COLUMN, UPPER

main45271-12070iSXA1#199404

W/O(TILT STEERING)

main45271-12080iSXA1#199404

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16020iSXA1#199512

W/O(TILT STEERING)

main45273-20030iSXA1#199404-199512

W/O(TILT STEERING)

main45273-20040iSXA1#199404-199512

W(TILT STEERING)

main45273-20050iSXA1#199512

W(TILT STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42010iSXA10199404-199504

W(TILT STEERING)

main45280-42011iSXA1#199504-199608

W(TILT STEERING)

main45280-42030iSXA10199404-199504

W/O(TILT STEERING)

main45280-42031iSXA1#199504-199608

W/O(TILT STEERING)

main45280-42050iSXA1#199608

W(TILT STEERING)

main45280-42070iSXA1#199608

W/O(TILT STEERING)

45286COVER, STEERING COLUMN

main45286-42901-C0iSXA10..LHD199404-199504

BLACK,TRIM1#

main45286-42902-C0iSXA10..RHD199404-199504

BLACK,TRIM1#

main45286-42903-C0iSXA10..LHD199404-199504

W(TILT STEERING),BLACK,TRIM1#

main45286-42904-C0iSXA10..RHD199404-199504

W(TILT STEERING),BLACK,TRIM1#

main45286-42905-C0iSXA1#..LHD199504-199608

BLACK,TRIM1#

main45286-42906-C0iSXA1#..RHD199504-199608

BLACK,TRIM1#

main45286-42907-C0iSXA1#..LHD199504-199608

W(TILT STEERING),BLACK,TRIM1#

main45286-42908-C0iSXA1#..RHD199504-199608

W(TILT STEERING),BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-42010iSXA1#..LHD199404

main45292-42020iSXA1#..RHD199404

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45802-12020iSXA10199404-199504

main45802-42010iSXA1#..RHD199504-199709

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iSXA1#199404-199608

45819RETAINER, TILT LEVER

main45819-12020×2iSXA1#199404-199608

main45819-42010iSXA1#199608

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12020iSXA1#199404-199608

45826LEVER, STEERING TILT

main45826-12021iSXA1#199404-199608

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90506-25005iSXA1#199608

main90507-12029×2iSXA1#199404-199608

45827ALEVER, STEERING TILT SUB

main45827-12020iSXA1#199404-199608

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iSXA1#199404-199608

45855BOLT, TILT STEERING, NO.1

main45855-12030iSXA1#199404-199608

OD=9.989-9.998

main45855-12040iSXA1#199404-199608

OD=9.998-10.007

main45855-35010×2iSXA1#199608

OD=10

45856BOLT, TILT STEERING, NO.2

main45856-12030iSXA1#199404-199608

OD=9.989-9.998

main45856-12040iSXA1#199404-199608

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12060iSXA1#199404

45890APAWL ASSY, TILT STEERING

main45890-12021iSXA1#199404-199608

NO.2

main45890-12031iSXA1#199404-199608

NO.1

main45890-35010iSXA1#199608

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iSXA1#199404-199608

MARK 0,NO.1

main90389-07005iSXA1#199404-199608

MARK 2,NO.1

main90389-07006iSXA1#199404-199608

MARK 3,NO.1

main90389-07007iSXA1#199404-199608

MARK 4,NO.1

main90389-07008iSXA1#199404-199608

MARK A,NO.2

main90389-07009iSXA1#199404-199608

MARK 6,NO.2

main90389-07010iSXA1#199404-199608

MARK 7,NO.2

main90389-07011iSXA1#199404-199608

MARK 8,NO.2

45893ASTOPPER, TILT STEERING PAWL

main45893-12021iSXA1#199404-199608

MARK A,NO.2

main45893-12071iSXA1#199404-199608

MARK F OR 11,NO.1

main45893-12120iSXA1#199404-199608

MARK B,NO.2

main45893-12130iSXA1#199404-199608

MARK C,NO.2

main45893-12140iSXA1#199404-199608

MARK D,NO.2

main45893-12150iSXA1#199404-199608

MARK E,NO.2

main45893-12160iSXA1#199404-199608

MARK G OR 12,NO.1

main45893-12170iSXA1#199404-199608

MARK H OR 13,NO.1

main45893-12180iSXA1#199404-199608

MARK I OR 14,NO.1

main45893-12190iSXA1#199404-199608

MARK J OR 15,NO.1

45897BOLT, STEERING LOCK SET

main45897-12020×2iSXA1#199404

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910478

main90119-10478

9017906009

main90179-06009

9017906158

main90179-06158

9017910016

main90179-10016

9017910065

main90179-10065

9020110283

main90201-10283

9020610011

main90206-10011

9046081003

main90460-81003

9161160820

main91611-60820

9165160614

main91651-60614

9165160616

main91651-60616

9331514012

main93315-14012

9356615514

main93566-15514

9461410600

main94614-10600
