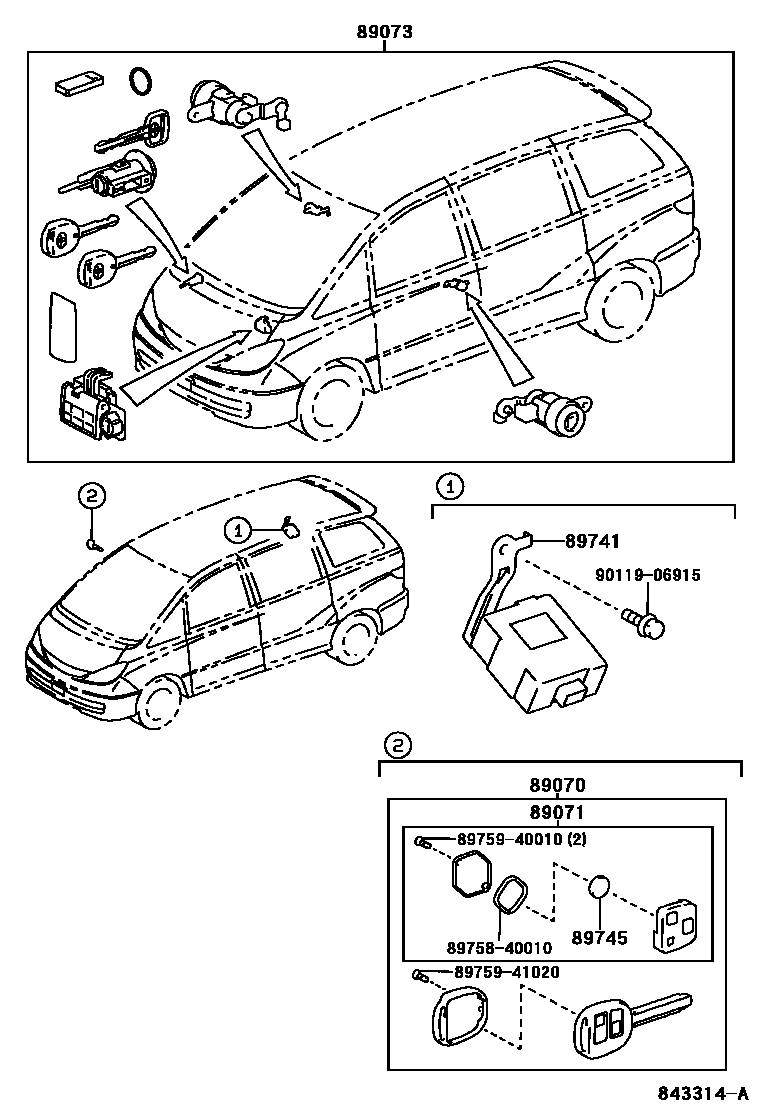

WIRELESS DOOR LOCK
89070TRANSMITTER ASSY, DOOR CONTROL
GERMANY SPEC
FRANCE SPEC
DENMARK SPEC
HONG KONG SPEC
SINGAPORE SPEC
TAIWAN SPEC
W(AUTO SLIDE DOOR & EASY CLOSER)
BERMUDA OR HONG KONG SPEC
BERMUDA SPEC & W(AUTO SLIDE DOOR & EASY CLOSER); W(AUTO SLIDE DOOR & EASY CLOSER)
SINGAPORE SPEC
SINGAPORE SPEC & W(AUTO SLIDE DOOR & EASY CLOSER)
TAIWAN SPEC
TAIWAN SPEC & W(AUTO SLIDE DOOR & EASY CLOSER)
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
TAIWAN SPEC
TAIWAN SPEC & W(AUTO SLIDE DOOR & EASY CLOSER)
W(AUTO SLIDE DOOR & EASY CLOSER)
HONG KONG SPEC & W(AUTO SLIDE DOOR & EASY CLOSER); W(AUTO SLIDE DOOR & EASY CLOSER)
SINGAPORE SPEC & W(AUTO SLIDE DOOR & EASY CLOSER)
HONG KONG SPEC
SINGAPORE SPEC
SINGAPORE SPEC
BERMUDA OR HONG KONG SPEC
TAIWAN SPEC
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
W(AUTO SLIDE DOOR & EASY CLOSER)
W(EASY CLOSER & AUTO SLIDE DOOR)
GERMANY SPEC
FRANCE SPEC
DENMARK SPEC
HONG KONG SPEC
SINGAPORE SPEC
TAIWAN SPEC
89741RECEIVER, DOOR CONTROL
PART NUMBER LABEL=89741-28131
HONG KONG SPEC
PART NUMBER LABEL=89741-28150
TAIWAN SPEC
PART NUMBER LABEL=89741-28210
89745BATTERY, TRANSMITTER
TAIWAN SPEC
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
9011906915
main90119-06915
9 parts on this diagram · 4 diagrams in section
