REAR FLOOR PANEL & REAR FLOOR MEMBER

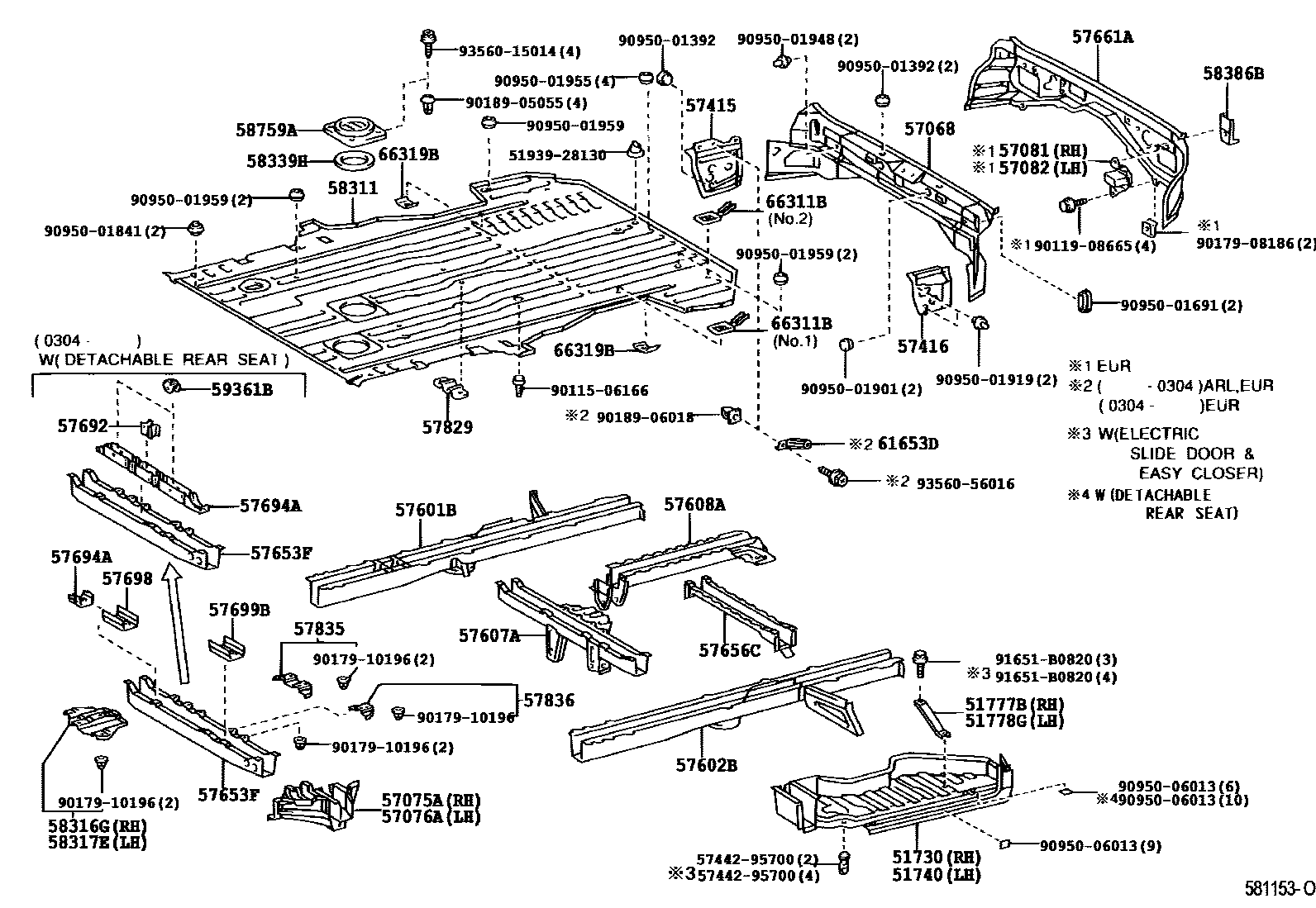

Parts diagram
51730STEP ASSY, REAR FLOOR, RH
main51730-28030i200002-200404
main51730-28040i200002-200304
W(DETACHABLE REAR SEAT)
main51730-28060i200304
W(ELECTRIC SLIDE DOOR & EASY CLOSER)
51740STEP ASSY, REAR FLOOR, LH
main51740-28030i200002-200404
main51740-28040i200002-200304
W(DETACHABLE REAR SEAT)
main51740-28050i200304
W(ELECTRIC SLIDE DOOR & EASY CLOSER)
51777BSTAY, STEP PLATE
main51777-28010i200002-200304
main51777-28020i200304
W(ELECTRIC SLIDE DOOR & EASY CLOSER)
51778GSTAY, STEP PLATE, LH
main51778-28010i200002-200304
main51778-28020i200304
W(ELECTRIC SLIDE DOOR & EASY CLOSER)
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
main57068-28240i200002-200511
main57068-28250i200511
57075ABRACKET SUB-ASSY, REAR SUSPENSION ARM, RH
main57075-28010i200002-200304
main57075-28030i200304-200404
57076ABRACKET SUB-ASSY, REAR SUSPENSION ARM, LH
main57076-28010i200002-200304
main57076-28030i200304-200404
57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING
main57081-28010i200002-200304
57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
main57082-28010i200002-200304
57415RAIL, FLOOR SIDE, REAR RH
main57415-28080i200002-200404
57416RAIL, FLOOR SIDE, REAR LH
main57416-28090i200002-200404
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
main57601-28020i200002-200304
W(DETACHABLE REAR SEAT)
main57601-28030i200002-200404
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
main57602-28010i200002-200304
W(DETACHABLE REAR SEAT)
main57602-28020i200002-200302
main57602-28040i200302-200404
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
main57607-28380i200002-200007
main57607-28390i200002-200211
W(DETACHABLE REAR SEAT)
main57607-28391i200211-200404
W(DETACHABLE REAR SEAT)
main57607-28392i200405-200601
W(DETACHABLE REAR SEAT)
main57607-28410i200211-200404
main57607-28411i200405-200601
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
main57608-28190i200002-200404
57653FMEMBER, REAR FLOOR CROSS, NO.2
main57653-28070i200002-200105
main57653-28100i200105-200211
main57653-28120i200211-200404
57656CMEMBER, REAR FLOOR CROOS, NO.5
main57656-28040i200002-200404
57661APANEL, REAR FLOOR REAR CROSS, OUTER
main57661-28020i200002-200404
57692BRACKET, FUEL TANK MOUNTING, REAR CENTER
main57696-28020i200304
57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2
main57694-28020i200002-200404
main57694-28040i200304
W(DETACHABLE REAR SEAT)
57698REINFORCEMENT, FUEL TANK
main57698-28010i200002-200404
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
main57699-28010i200002-200404
57829REINFORCEMENT, SEAT LEG
main57829-28020i200002-200304
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
main57835-28100i200002-200304
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
main57836-28070i200002-200304
58311PAN, REAR FLOOR
main58311-28870i200002-200201
W(BENCH SEAT)
main58311-28871i200201-200210
W(BENCH SEAT)
main58311-28872i200210-200301
W(BENCH SEAT)
main58311-28873i200301-200405
W(BENCH SEAT)
main58311-28880i200002-200201
W(CAPTAIN SEAT)
main58311-28880i200105-200110
main58311-28881i200201-200210
W(CAPTAIN SEAT)
main58311-28882i200210-200301
W(CAPTAIN SEAT)
main58311-28883i200301-200304
W(CAPTAIN SEAT)
main58311-28890i200002-200201
W(DETACHABLE SEAT)
main58311-28891i200201-200210
W(DETACHABLE SEAT)
main58311-28892i200210-200301
W(DETACHABLE SEAT)
main58311-28893i200301-200304
W(DETACHABLE REAR SEAT)
main58311-2J010i200002-200201
W(BENCH SEAT & REAR HEATER)
main58311-2J011i200201-200210
W(BENCH SEAT & REAR HEATER)
main58311-2J012i200210-200301
W(BENCH SEAT & REAR HEATER)
main58311-2J013i200301-200405
W(BENCH SEAT & REAR HEATER)
main58311-2J020i200002-200201
W(DETACHABLE SEAT & REAR HEATER)
main58311-2J021i200201-200210
W(DETACHABLE SEAT & REAR HEATER)
main58311-2J022i200210-200301
W(CAPTAIN SEAT & REAR HEATER)
main58311-2J023i200301-200304
W(CAPTAIN SEAT & REAR HEATER)
main58311-2J030i200102-200201
W(DETACHABLE SEAT & REAR HEATER)
main58311-2J030i200002-200201
W(BENCH SEAT & REAR HEATER)
main58311-2J031i200201-200210
W(DETACHABLE SEAT & REAR HEATER)
main58311-2J032i200210-200301
W(DETACHABLE SEAT & REAR HEATER)
main58311-2J033i200301-200304
W(DETACHABLE REAR SEAT & REAR HEATER)
main58311-2J070i200105-200201
W(6:4 SPRIT SEAT)
main58311-2J071i200201-200210
W(6:4 SPRIT SEAT)
main58311-2J072i200210-200301
W(6:4 SPRIT SEAT)
main58311-2J073i200301-200304
W(6:4 SPRIT SEAT)
main58311-2J460i200304
W(DETACHABLE REAR SEAT)
main58311-2J480i200304
W(DETACHABLE REAR SEAT & REAR HEATER)
main58311-2J490i200304
W(6:4 SPRIT SEAT & ELECTRIC SLIDE DOOR & EASY CLOSER)
main58311-2J510i200304
W(CAPTAIN SEAT & ELECTRIC SLIDE DOOR & EASY CLOSER)
main58311-2J540i200304
W(CAPTAIN SEAT & ELECTRIC SLIDE DOOR & EASY CLOSER & REAR HEATER)
58316GRETAINER, REAR SEAT, NO.1
main58316-28020i200002-200301
main58316-28021i200301-200304
main58316-28040i200304
W(DETACHABLE REAR SEAT)
58317ERETAINER, REAR SEAT, NO.2
main58317-28030i200002-200301
main58317-28031i200301-200304
main58317-28060i200304
W(DETACHABLE REAR SEAT)
58339HPACKING, REAR FLOOR SERVICE HOLE
main58337-28010i200002-200304
58386BBRACKET, REAR BUMPER COVER, NO.2
main58386-28010i200002-200404
58759ACOVER, FUEL TANK INSPECTION HOLE
main58759-28010i200002-200304
59361BRETAINER, REAR SEAT, NO.1 A
main59361-28040i200304
61653DBRACKET, DECK SIDE TRIM, RH
main61653-28030i200002-200601
66311BHOOK, ROPE
main66310-28020-B2i200002-200304
LT. BLUISH GRAY,TRIM11,NO.2
main66310-28020-B3i200002-200304
MD.CHARCOAL,TRIM12,NO.2
main66310-28020-B4i200304-200601
MD.GRAY,TRIM1#
main66310-28030-B1i200002-200304
LT. BLUISH GRAY,TRIM11,NO.1
main66310-28030-B2i200002-200304
MD.CHARCOAL,TRIM12,NO.1
main66310-28030-B3i200304-200601
MD.GRAY,TRIM1#,NO.1
66319BBRACKET, ROPE HOOK
main66319-28010i200002-200304
5193928130CUP, SPARE TIRE CARRIER WINCH
main51939-28130
5744295700PLUG, STEP PANEL HOLE
main57442-95700
9011506166
main90115-06166
9011908665
main90119-08665
9017908186
main90179-08186
9017910196
main90179-10196
9018905055
main90189-05055
9018906018
main90189-06018
9095001392
main90950-01392
9095001691
main90950-01691
9095001841
main90950-01841
9095001901
main90950-01901
9095001919
main90950-01919
9095001948
main90950-01948
9095001955
main90950-01955
9095001959
main90950-01959
9095006013
main90950-06013
91651B0820
main91651-B0820
9356015014
main93560-15014
9356056016
main93560-56016

55 parts on this diagram · 1 diagram in section
