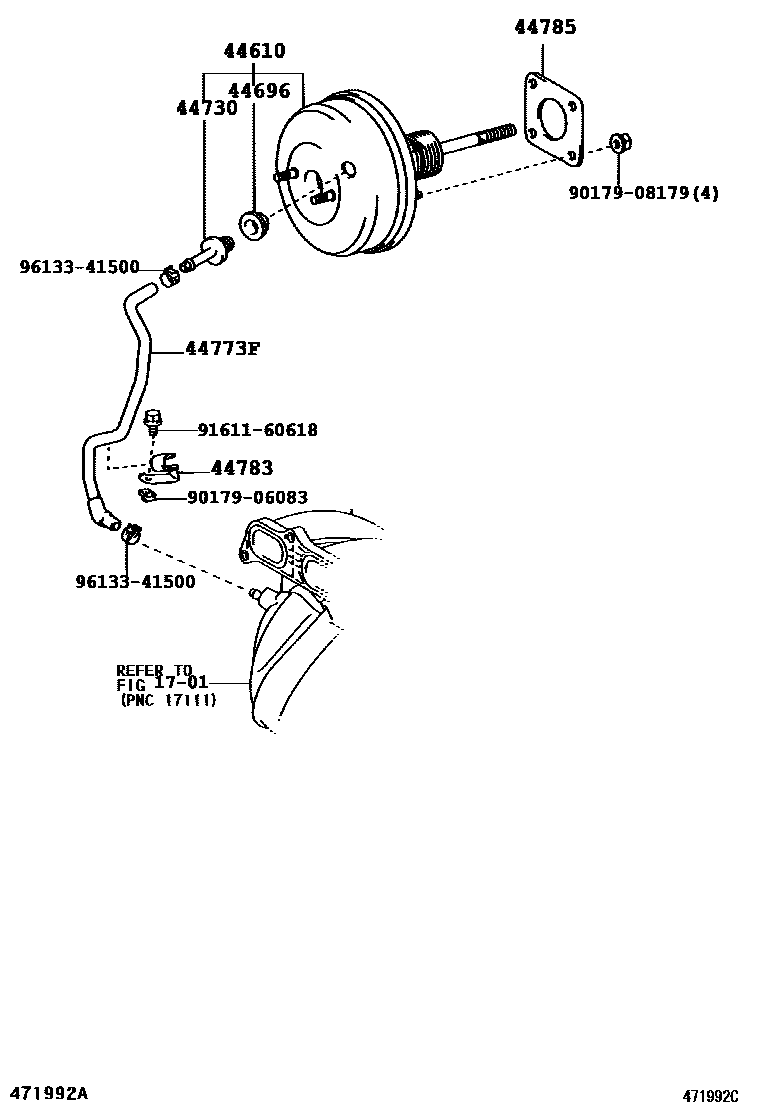

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-28A00iACR30..ARL200304

main44610-2J060iACR30..RHD..EUR200002-200304

main44610-2J070iACR30..LHD..EUR200002-200304

main44610-2J080iACR30..ARL200002-200304

main44610-2J090iACR30..GCC,GEN200003-200304

main44610-2J100iCLR30..RHD200102-200304

main44610-2J110iCLR30..LHD200102-200304

main44610-2J130iACR30..RHD..ATM..EUR200304

BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC & W(VSC)

main44610-2J140iACR30..ARL200304

W(ABS)

main44610-2J140iACR30..ARL200304

BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC

main44610-2J150iACR30..RHD..EUR200304

W(VSC)

main44610-2J160iACR30..RHD..EUR200304

main44610-2J170iACR30..GCC200304

W(ABS)

main44610-2J170iACR30..GCC200304

TYPE A:REFER TO ILLUSTRATION, FIG.47-05

main44610-2J180iACR30..GCC200304

main44610-2J190iACR30..LHD..EUR200304

W(VSC)

main44610-2J200iACR30..LHD..EUR200304

TYPE B:REFER TO ILLUSTRATION, FIG.47-05

main44610-2J210iCLR30..RHD200304

W(VSC)

main44610-2J220iCLR30..RHD200304

main44610-2J230iCLR30..LHD200304

W(VSC)

main44610-2J240iCLR30..LHD200304

44696GROMMET, CHECK VALVE

main90480-24015iACR30200002-200304

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iACR30..GEN200003-200304

W(ABS)

main44730-28030iACR30..ARL,EUR,GCC200004-200304

main44730-30010iACR30200002-200004

main44730-35010iCLR30200102-200304

44773FHOSE, UNION TO CHECK VALVE

main44773-28120iACR30..RHD200002-200304

main44773-28160iACR30..RHD200304

44783CLAMP, VACUUM HOSE

main44783-28010iACR30200002-200304

44785GASKET, BRAKE BOOSTER

main44785-32010iACR30,CLR30200002-200304

9017906083

main90179-06083

9017908179

main90179-08179

9161160618

main91611-60618

9613341500

main96133-41500

11 parts on this diagram · 4 diagrams in section
