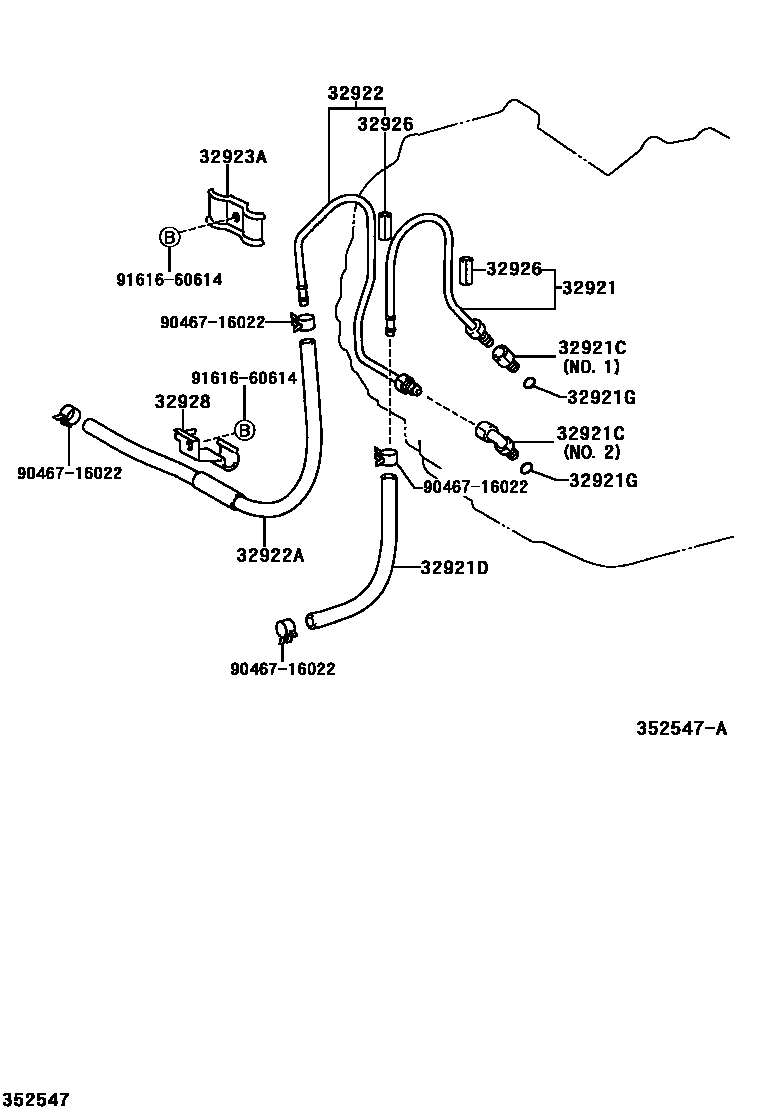

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-28240iACR30..ATM200002-200304

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iACR30..ATM200304

NO.1

main90407-16010iACR30..ATM200304

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main90445-17128iACR30..ATM200002-200304

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACR30..ATM200002-200304

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-28200iACR30..ATM200002-200304

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-28260iACR30..ATM200002-200304

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iACR30..ATM200002-200304

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iACR30..ATM200002-200304

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-28040iACR30..ATM200002-200304

9046716022

main90467-16022

9161660614

main91616-60614

11 parts on this diagram · 1 diagram in section
