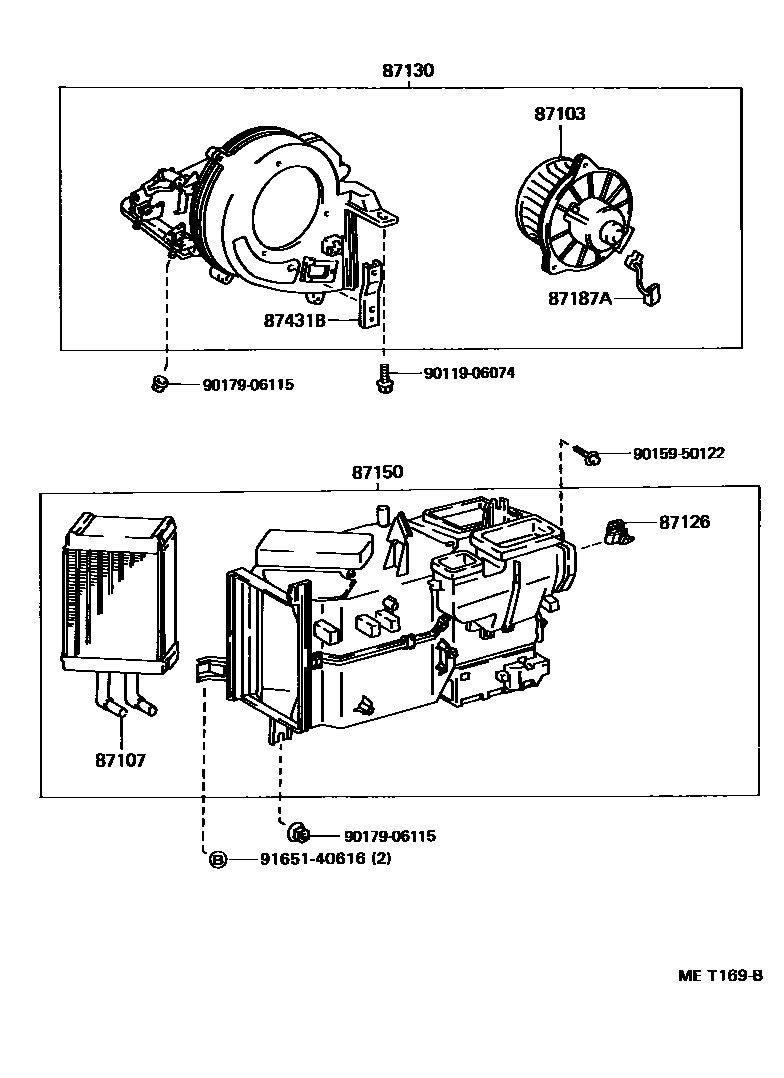

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0002 1REAR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-28020iCR2#,KR2#,YR2#..LHD199201-199501

main87103-87001iCR27,KR27..RHD199201-199501

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-28030iCR2#..LHD199201-199501

main87107-28110iKR27..RHD199201-199405

main87107-28120iKR2#,YR2#..LHD199201-199501

main87107-87011iCR27..RHD199201-199501

87126CLAMP, HEATER CONTROL

main87126-87001iCR27,KR27..RHD199201-199501

87130BLOWER ASSY, HEATER, FRONT

main87130-28180iCR27,KR27..RHD199201-199501

main87130-28200iCR2#,KR2#,YR2#..LHD199201-199501

87150RADIATOR ASSY, HEATER

main87150-28220iKR27..RHD199201-199405

main87150-28260iCR27..RHD199201-199501

main87150-28270iKR2#,YR2#..LHD199201-199501

main87150-28280iCR2#..LHD199201-199501

87187AWIRE, BLOWER MOTOR LEAD

main87187-28010iCR2#,KR2#,YR2#199201-199501

87431BBRACKET, REAR HEATER

main87431-28010iCR2#,KR2#,YR2#199201-199501

9011906074

main90119-06074

9015950122

main90159-50122

9017906115

main90179-06115

9165140616

main91651-40616

11 parts on this diagram · 2 diagrams in section
