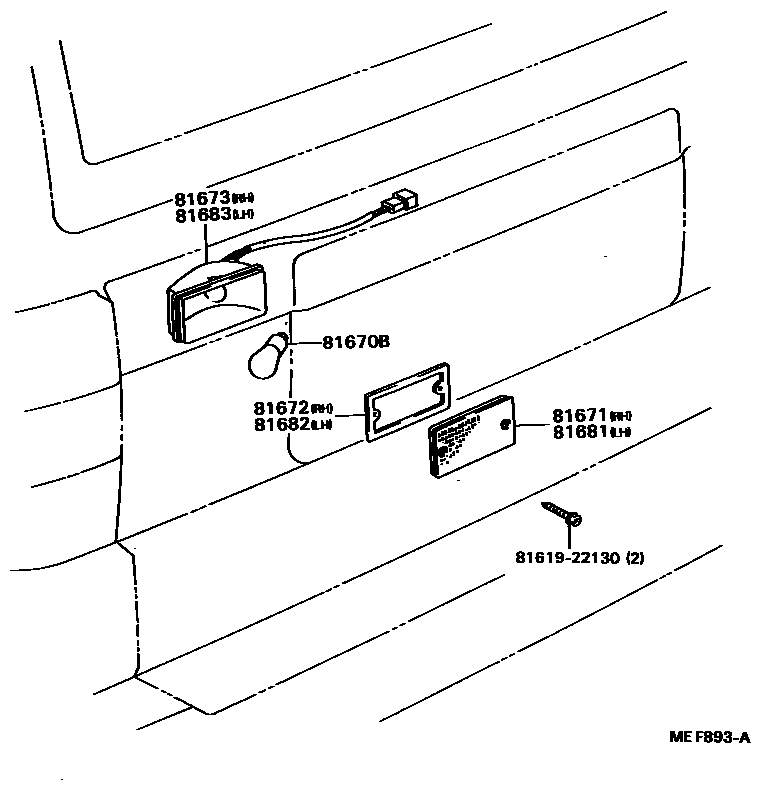

BACK UP LAMP

81670BBULB(FOR BACK-UP LAMP)

main99132-11230iCR21,YR2#,31..ARL198508-198808

12V 23W,12V 23W

81671LENS, BACK-UP LAMP, RH

main81671-87001iCR21,YR2#,31..ARL198508-198808

81672GASKET, BACK-UP LAMP LENS, RH

main81672-87001iCR21,YR2#,31..ARL198508-198808

81673BODY, BACK-UP LAMP, RH

main81673-87001iCR21,YR2#,31..ARL198508-198808

81681LENS, BACK-UP LAMP, LH

main81681-87001iCR21,YR2#,31..ARL198508-198808

81682GASKET, BACK UP LAMP LENS, LH

main81672-87001iCR21,YR2#,31..ARL198508-198808

81683BODY, BACK UP LAMP, LH

main81683-87001iCR21,YR2#,31..ARL198508-198808

8161922130

main81619-22130

8 parts on this diagram · 1 diagram in section
