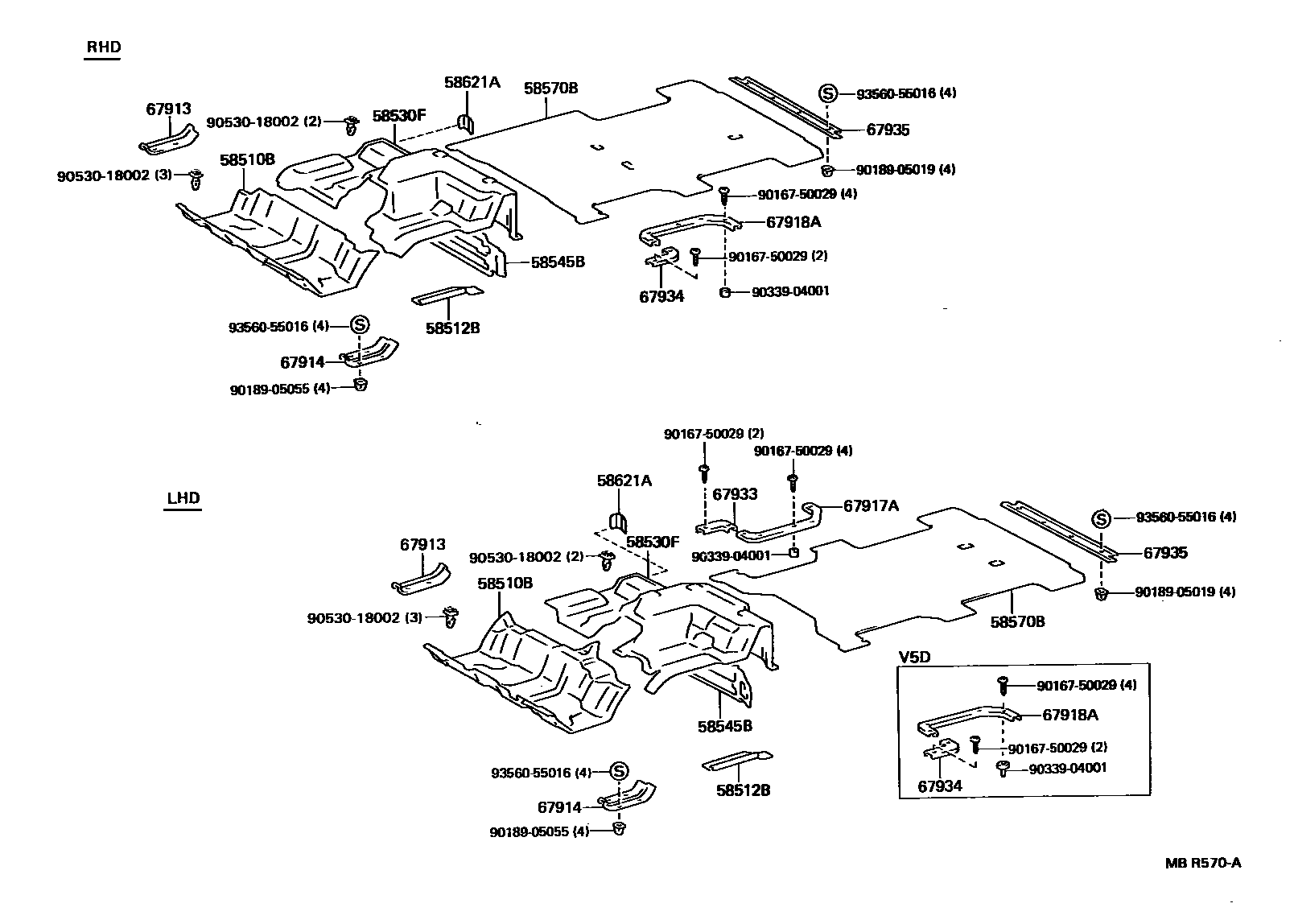

FLOOR MAT & SILENCER PAD
58510BMAT, FRONT FLOOR, FRONT
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
58512BMAT, FLOOR, FRONT LH
GRAY,TRIM1#
58530FMAT ASSY, HEADER
W(CENTER CONSOLE BOX),GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
W(ROOM SEPARATOR),GRAY,TRIM1#
W(ROOM SEPARATOR) OR NORWAY SPEC,GRAY,TRIM1#; W(ROOM SEPARATOR),GRAY,TRIM1#
W(95D31R BATTERY & CENTER CONSOLE BOX),GRAY,TRIM1#
W(95D31R BATTERY),GRAY,TRIM1#
W(95D31R BATTERY),GRAY,TRIM1#
W(95D31R BATTERY & ROOM SEPARATOR),GRAY,TRIM1#
W(95D31R BATTERY & ROOM SEPARATOR),GRAY,TRIM1#
GRAY,TRIM1#
W(CENTER CONSOLE BOX),GRAY,TRIM1#
GRAY,TRIM1#
W(CENTER CONSOLE BOX),GRAY,TRIM1#
W(95D31R BATTERY),GRAY,TRIM1#
W(95D31R BATTERY & CENTER CONSOLE BOX),GRAY,TRIM1#
58545BSILENCER, HEADER PANEL
AUSTRIA SPEC; SWITZERLAND SPEC OR AUSTRIA SPEC
58570BMAT ASSY, REAR FLOOR
W(REAR HEATER-PUT FLOOR TYPE),GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
W(FOLD TYPE REAR NO.1 SEAT),GRAY,TRIM1#
GRAY,TRIM1#
SABLE,TRIM4#
W(THAILAND DOWN HOOK),GRAY,TRIM1#
W(THAILAND DOWN HOOK),GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#; W/O(REAR NO.1 SEAT),GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
W(THAILAND DOWN HOOK),GRAY,TRIM1#
W(THAILAND DOWN HOOK) & W/O(REAR NO.1 SEAT),GRAY,TRIM1#; W(THAILAND DOWN HOOK),GRAY,TRIM1#
58621APLATE, MAT SET, NO.1 LH
67913PLATE, FRONT DOOR SCUFF, RH
GRAY,TRIM1#
SABLE,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
GRAY,TRIM1#
SABLE,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
W(FOLD TYPE REAR NO.1 SEAT)
67918APLATE, REAR DOOR SCUFF, LH
67933PLATE, QUARTER SCUFF, INNER RH
GRAY,TRIM1#
SABLE,TRIM4#
67934PLATE, QUARTER SCUFF, INSIDE LH
GRAY,TRIM1#
67935PLATE, BACK DOOR SCUFF
9016750029
main90167-50029
9018905019
main90189-05019
9018905055
main90189-05055
9033904001
main90339-04001
9053018002
main90530-18002
9356055016
main93560-55016
19 parts on this diagram · 3 diagrams in section
