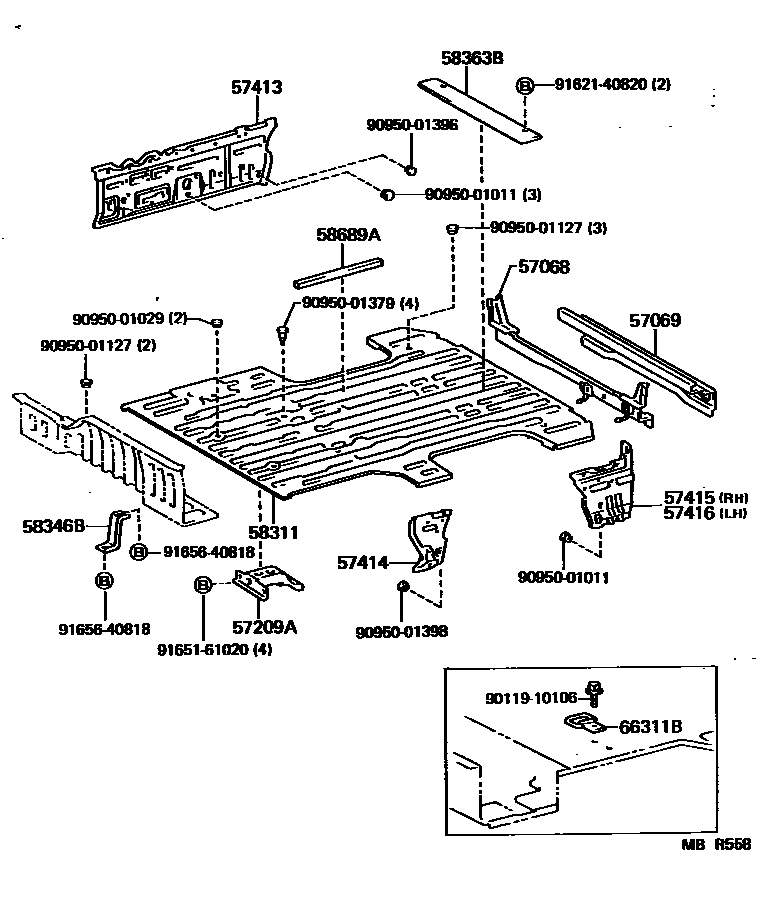

REAR FLOOR PANEL & REAR FLOOR MEMBER
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
*FRG
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57413RAIL, FLOOR SIDE, CENTER RH
SWITZERLAND SPEC & W/O(REAR NO.1 SEAT)
NORWAY SPEC & W/O(REAR NO.1 SEAT)
W(FOLD TYPE REAR NO.1 SEAT OR REAR HEATER(SIDE TRIM))
W(FOLD TYPE REAR NO.1 SEAT)
W/O(REAR NO.1 SEAT)
57414RAIL, FLOOR SIDE, CENTER LH
W/O(REAR NO.1 SEAT)
W(REAR HEATER)
NORWAY SPEC & W/O(REAR NO.1 SEAT)
SWITZERLAND SPEC & W/O(REAR NO.1 SEAT)
57415RAIL, FLOOR SIDE, REAR RH
57416RAIL, FLOOR SIDE, REAR LH
58311PAN, REAR FLOOR
W(REAR HEATER(PUT FLOOR))
W(REAR HEATER(SIDE TRIM))
SWITZERLAND SPEC & W/O(REAR NO.1 SEAT)
NORWAY SPEC & W/O(REAR NO.1 SEAT)
W(FOLD TYPE REAR NO.1 SEAT OR REAR HEATER(SIDE TRIM))
W(FOLD TYPE REAR NO.1 SEAT)
W(REAR HEATER(SIDE TRIM))
W(FOLD TYPE REAR NO.1 SEAT)
W(THAILAND DOWN HOOK(4))
W/O(REAR NO.1 SEAT)
NORWAY SPEC & W(THAILAND DOWN HOOK(6)) & W/O(REAR NO.1 SEAT)
W(THAILAND DOWN HOOK(4))
*SWZ & W(THAILAND DOWN HOOK(6)) & W/O(REAR NO.1 SEAT) OR W(THAILAND DOWN HOOK(4))
W(THAILAND DOWN HOOK(6)) & W/O(REAR NO.1 SEAT)
W(THAILAND DOWN HOOK(4))
W(THAILAND DOWN HOOK(6) & REAR HEATER(SIDE TRIM))
W(THAILAND DOWN HOOK(4))
58346BBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58363BBALANCER, REAR FLOOR, NO.1
RR
FR
58689AWEIGHT, REAR FLOOR
L=460
L=300
66311BHOOK, ROPE
9011910106
main90119-10106
9095001011
main90950-01011
9095001029
main90950-01029
9095001127
main90950-01127
9095001379
main90950-01379
9095001398
main90950-01398
9162140820
main91621-40820
9165161020
main91651-61020
9165640818
main91656-40818
21 parts on this diagram · 5 diagrams in section
