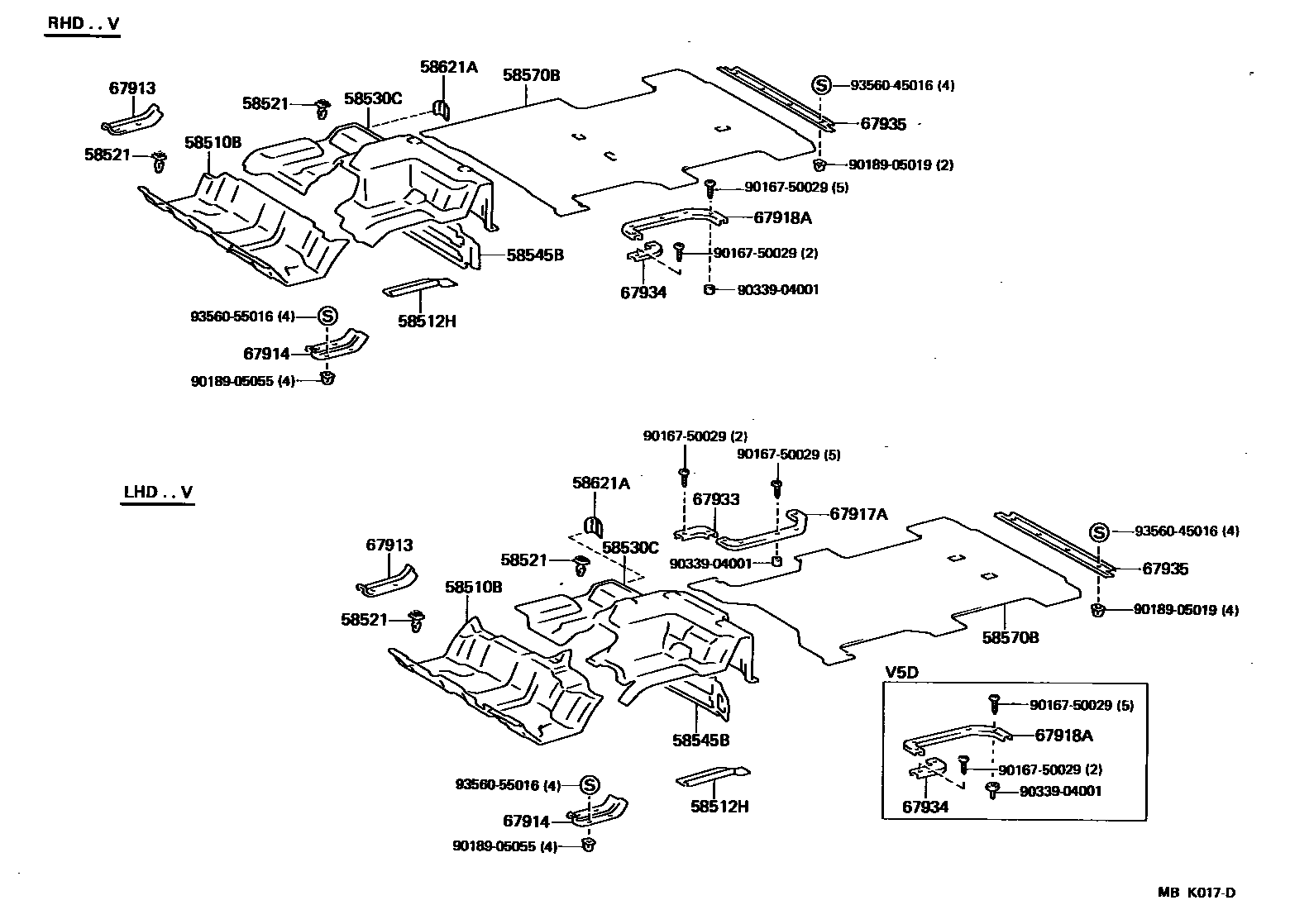

FLOOR MAT & SILENCER PAD
58510BMAT, FRONT FLOOR, FRONT
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
FINLAND SPEC,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
W/FOOT REST,BROWN,BROWN,TRIM4#
58512HMAT, FLOOR, FRONT LH
BROWN,BROWN,TRIM4#
58521HOOK, MALE, NO.1
58530CMAT, FRONT FLOOR, REAR
W/CENTER *CB,BROWN,BROWN,TRIM4#
W/CENTER *CB,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
W/ROOM SEPARATOR,BROWN,BROWN,TRIM4#
W/ROOM SEPARATOR,BROWN,BROWN,TRIM4#
*COS,W/CENTER *CB,BROWN,BROWN,TRIM4#
*COS,W/CENTER *CB,BROWN,BROWN,TRIM4#
*COS,BROWN,BROWN,TRIM4#
*COS,BROWN,BROWN,TRIM4#
*COS,W/ROOM SEPARATOR,BROWN,BROWN,TRIM4#
*COS,W/ROOM SEPARATOR,BROWN,BROWN,TRIM4#
W/CENTER *CB,BLUE,BLUE,TRIM8#
W/CENTER*CB,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
W/CENTER *CB,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
W/CENTER *CB,BROWN,BROWN,TRIM4#
*COS,BROWN,BROWN,TRIM4#
*COS,W/CENTER *CB,BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
58545BSILENCER, HEADER PANEL
SWITZERLAND SPEC
58570BMAT ASSY, REAR FLOOR
W/*REH=FLOOR SET TYPE,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
W/FOLDING TYPE SEAT,BROWN,BROWN,TRIM4#
W/ROPE HOOK,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#; W/O RR SEAT,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
W/ROPE HOOK,BROWN,BROWN,TRIM4#
W/ROPE HOOK,BROWN,BROWN,TRIM4#
W/ROPE HOOK,BROWN,BROWN,TRIM4#; W/ROPE HOOK,FOLDING SEAT,BROWN,BROWN,TRIM4#
58621APLATE, MAT SET, NO.1 LH
67913PLATE, FRONT DOOR SCUFF, RH
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
W/FOLDING SEAT
67918APLATE, REAR DOOR SCUFF, LH
67933PLATE, QUARTER SCUFF, INNER RH
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
67934PLATE, QUARTER SCUFF, INSIDE LH
BROWN,BROWN,TRIM4#
67935PLATE, BACK DOOR SCUFF
9016750029
main90167-50029
9018905019
main90189-05019
9018905055
main90189-05055
9033904001
main90339-04001
9356045016
main93560-45016
9356055016
main93560-55016
20 parts on this diagram · 2 diagrams in section
