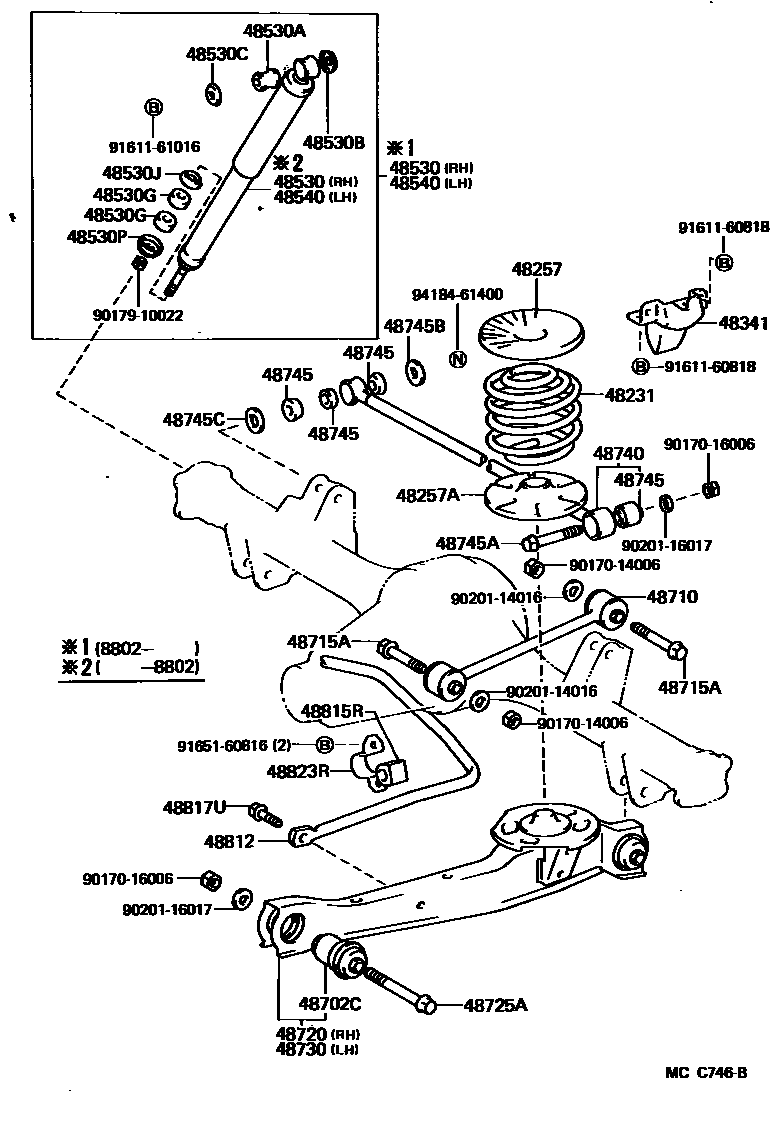

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-27130
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
LWR
UPR
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-27130
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
48720ARM ASSY, LOWER CONTROL, RH
48725ABOLT(FOR LOWER CONTROL ARM)
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
BODY SIDE
L=15,HOUSING SIDE
L=12,HOUSING SIDE
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48745CWASHER, LATERAL CONTROL ROD CUSHION
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48817UBOLT(FOR REAR STABILIZER)
48823RCOVER, STABILIZER LINK(FOR REAR)
9017014006
main90170-14006
9017016006
main90170-16006
9017910022
main90179-10022
9020114016
main90201-14016
9020116017
main90201-16017
9161160818
main91611-60818
9161161016
main91611-61016
9165160816
main91651-60816
9418461400
main94184-61400
36 parts on this diagram · 4 diagrams in section
