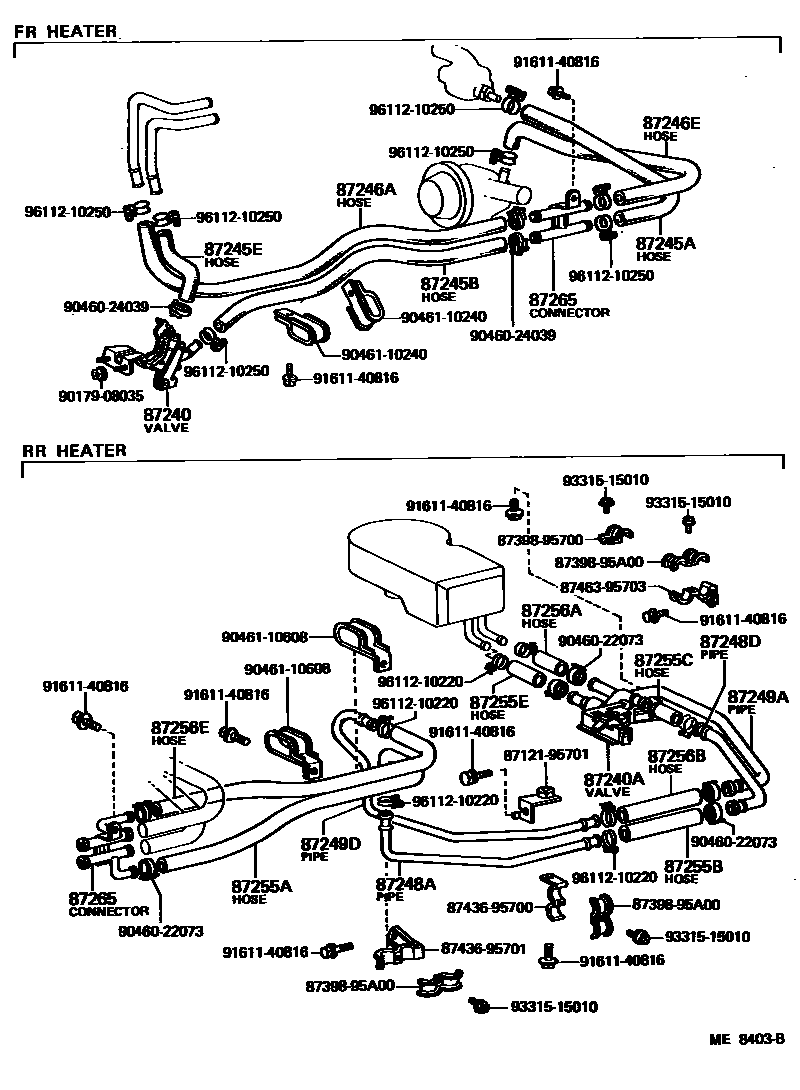

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87240VALVE ASSY, HEATER WATER

main87240-87401iKM20..03S..ARL197910-198101

main87240-87402iKM20..03S..ARL198101-198210

main87240-95700iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S); KM20..TR..GEN197910-198101

main87240-95702iKM20..TR..GEN; KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)198101-198210

main87240-95705iCM20,KM20,YM2#..RHD198210-198508

87240AVALVE ASSY, REAR HEATER WATER

main87240-95703iYM21..08S198311-198508

main87240-95704iKM20..WG198101-198508

87245AHOSE, HEATER WATER, INLET A

main87245-95706iKM20..RHD197910-198508

main87245-95712iCM20198210-198508

main87245-95714iYM2#198311-198508

main99552-30500iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198408

*H,L=390

main99556-30390iKM20..LHD..HRF;KM20..V4D..SRF..4F..02S;KM20..LHD..SRF..(03S,05S,06S,08S,09S)198408-198508

*H,L=390

87245BHOSE, HEATER WATER, INLET B

main87245-95713iYM2#198311-198508

main99552-30500iCM20198210-198408

*H,L=400

main99552-31000iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198408

*H,L=820

main99556-30400iCM20198408-198508

*H,L=400

main99556-30820iKM20..V4D..02S;KM20..03S,05S,06S,08S,09S198408-198508

*H,L=820

87245EHOSE, HEATER WATER, INLET E

main87245-87401iKM20..03S..ARL197910-198210

main87245-95705iCM20,KM20..LHD198210-198508

main87245-95715iCM20,KM20,YM2#..RHD198210-198508

87246AHOSE, HEATER WATER, OUTLET A

main99552-31000iYM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198408

*H,L=940

main99552-32000iCM20198210-198408

*H,L=1200

main99556-30940iYM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198408-198508

*H,L=940

main99556-31200iCM20198408-198508

*H,L=1200

87246EHOSE, HEATER WATER, OUTLET E

main87245-95700iKM20..RHD197910-198508

main87245-95701iKM20..LHD197910-198508

main87245-95711iCM20198210-198508

main87245-95716iYM21..08S198311-198508

W/RR HEATER

main99552-31000iYM2#198311-198508

*H,L=800

87248APIPE, HEATER WATER INLET, A

main87208-28010iYM2#198311-198508

main87208-28030iCM20198210-198307

main87208-28031iCM20198307-198508

main87248-95709iKM20..WG198101-198508

87248DPIPE, HEATER WATER INLET, D

main87248-95708iKM20,YM21..WG198101-198508

87249APIPE, HEATER WATER OUTLET, A

main87248-95707iKM20..WG198101-198508

main87248-95725iYM21..08S198311-198508

87249DPIPE, HEATER WATER OUTLET, D

main87248-95703iKM20..WG198101-198508

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-95718iKM20..WG198101-198508

main99552-20500iYM21..08S198311-198408

*H,L=380

main99556-20380iYM21..08S198408-198508

*H,L=380

87255BHOSE, REAR HEATER WATER INLET, B

main99552-20300iKM20,YM21..WG198101-198408

*H,L=210

main99556-20300iKM20,YM21..08S198408-198508

*H,L=210

87255CHOSE, REAR HEATER WATER INLET, C

main99552-20100iKM20,YM21..WG198101-198408

*H,L=50

main99556-20050iKM20,YM21..08S198408-198508

*H,L=50

87255EHOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

main99552-20100iKM20..WG198101-198408

*H,L=50

main99552-20700iYM21..08S198311-198408

*H,L=640

main99556-20050iKM20..08S198408-198508

*H,L=50

main99556-20900iYM21..08S198408-198508

L=1000(*H,L=640)

87256AHOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

main99552-20100iKM20..WG198101-198408

*H,L=60

main99552-20700iYM21..08S198311-198408

main99556-20060iKM20..08S198408-198508

*H,L=60

main99556-20900iYM21..08S198408-198508

L=700

87256BHOSE, REAR HEATER WATER OUTLET, B

main99552-20300iKM20..WG198101-198408

*H,L=210

main99556-20300iKM20..08S; YM21..08S198408-198508

*H,L=210; *H,L=240

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main87245-95709iKM20..WG198101-198508

main87245-95717iYM21..08S198311-198508

87265CONNECTOR, HEATER WATER HOSE

main87208-95703iCM20198210-198508

main87208-95705iYM21..08S198311-198508

W/RR HEATER

main87248-95700iKM20197910-198508

main87248-95724iYM2#198311-198508

main87248-95730iKM20..WG198101-198508

W/RR HEATER

8712195701BRACKET, HEATER, FRONT RH

main87121-95701

8739895700BAND ASSY (FOR COMBUSTION HEATER)

main87398-95700

8739895A00BAND ASSY (FOR COMBUSTION HEATER)

main87398-95A00

8743695700

main87436-95700

8743695701

main87436-95701

8746395703

main87463-95703

9017908035

main90179-08035

9046022073

main90460-22073

9046024039

main90460-24039

9046110240

main90461-10240

9046110608

main90461-10608

9161140816

main91611-40816

9331515010

main93315-15010

9611210220

main96112-10220

9611210250

main96112-10250

34 parts on this diagram · 4 diagrams in section
