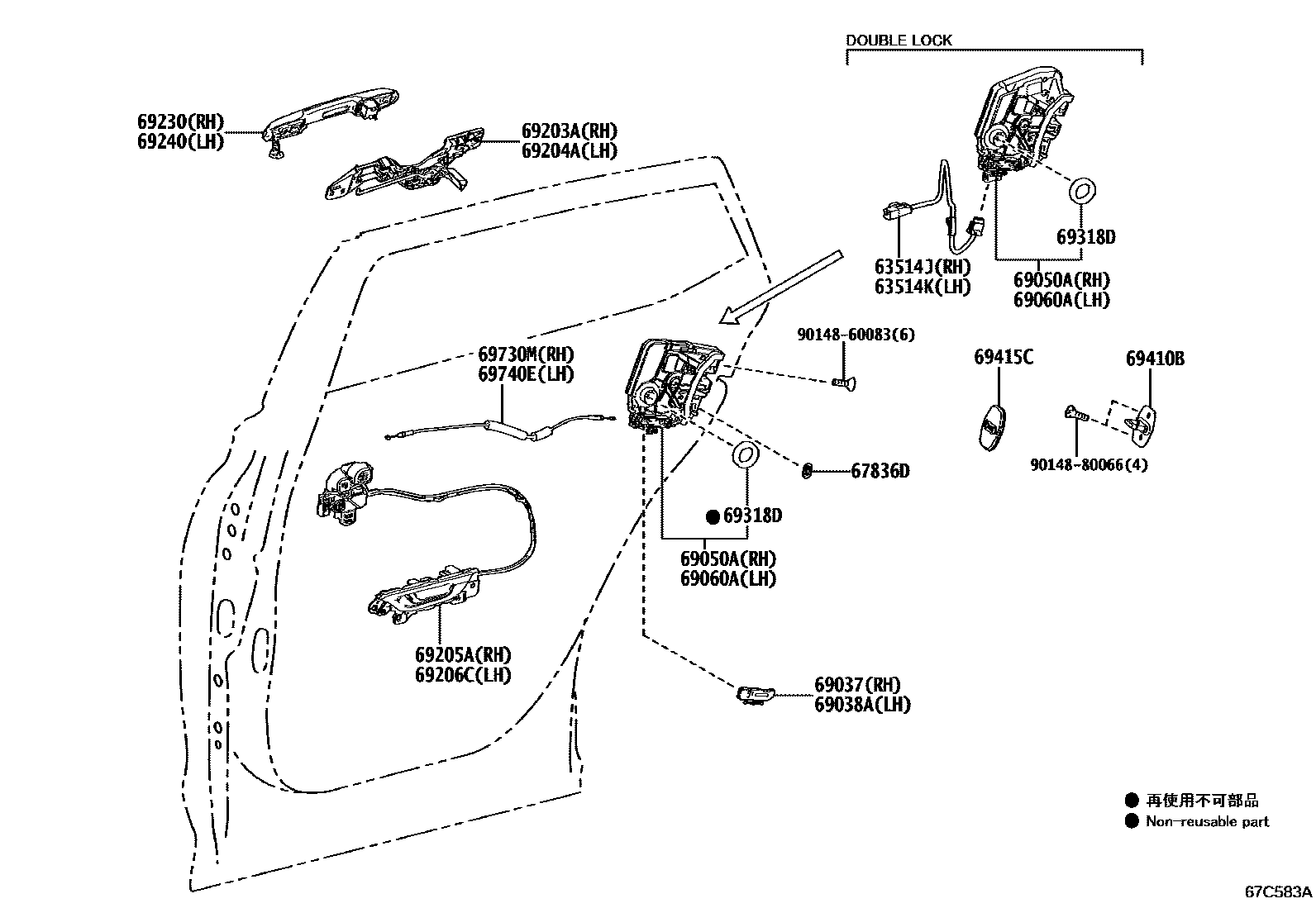

REAR DOOR LOCK & HANDLE

63514JWIRE, CONNECTOR, RH

main63514-46030iXEBM15..EUR202301-202311

63514KWIRE, CONNECTOR, LH

main63514-46040iXEBM1#..EUR202311

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-60010×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-78010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-78010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-78030iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)202311

main69050-78040iXEBM1#..EUR202311

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-78030iXEBM10..CHI,GEN;XEBM15..(C,L)..(ARL,CHI,GEN)202311

main69060-78040iXEBM1#..EUR202311

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-46020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-46020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69070-46040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69080-46040iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-78090-A1iXEBM15..ARL,GEN202301-202303

SONIC QUARTZ,085

main69210-78090-B1iXEBM15202301-202302

SONIC CHROME,1L1 ,2YH

main69210-78090-B3iXEBM15..ARL,GEN202301-202303

SONIC IRIDIUM,1L2

main69210-78090-C1iXEBM15202301-202302

GRAPHITE BLACK GF.,223

main69210-78090-E1iXEBM15202301-202302

SONIC COPPER,2YF ,4Y5

main69210-78090-J3iXEBM15202301-202302

AETHER ME.,2YG ,8Z2

main69210-78091-A1iXEBM15202303-202304

SONIC QUARTZ,085

main69210-78091-B1iXEBM15202303-202304

SONIC CHROME,1L1 ,2YH

main69210-78091-B3iXEBM15202303-202304

SONIC IRIDIUM,1L2

main69210-78091-C1iXEBM15202303-202304

GRAPHITE BLACK GF.,223

main69210-78091-E1iXEBM15202303-202304

SONIC COPPER,2YF ,4Y5

main69210-78091-J3iXEBM15202303-202304

AETHER ME.,2YG ,8Z2

main69210-78092-A1iXEBM15..B..CHI202304

SONIC QUARTZ,085

main69210-78092-B1iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

SONIC CHROME,1L1 ,2YH

main69210-78092-B3iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202304-202311

SONIC IRIDIUM,1L2

main69210-78092-C1iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202304-202311

GRAPHITE BLACK GF.,223

main69210-78092-E1iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

SONIC COPPER,2YF ,4Y5

main69210-78092-J3iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

AETHER ME.,2YG ,8Z2

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-78090-A1iXEBM15202301-202302

SONIC QUARTZ,085

main69220-78090-B1iXEBM15..ARL,GEN202301-202303

SONIC CHROME,1L1 ,2YH

main69220-78090-B3iXEBM15202301-202302

SONIC IRIDIUM,1L2

main69220-78090-C1iXEBM15..ARL,GEN202301-202303

GRAPHITE BLACK GF.,223

main69220-78090-E1iXEBM15202301-202302

SONIC COPPER,2YF ,4Y5

main69220-78090-J3iXEBM15202301-202302

AETHER ME.,2YG ,8Z2

main69220-78091-A1iXEBM15202303-202304

SONIC QUARTZ,085

main69220-78091-B1iXEBM15202303-202304

SONIC CHROME,1L1 ,2YH

main69220-78091-B3iXEBM15202303-202304

SONIC IRIDIUM,1L2

main69220-78091-C1iXEBM15202303-202304

GRAPHITE BLACK GF.,223

main69220-78091-E1iXEBM15202303-202304

SONIC COPPER,2YF ,4Y5

main69220-78091-J3iXEBM15202303-202304

AETHER ME.,2YG ,8Z2

main69220-78092-A1iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202304-202311

SONIC QUARTZ,085

main69220-78092-B1iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202304-202311

SONIC CHROME,1L1 ,2YH

main69220-78092-B3iXEBM15..B..CHI202304

SONIC IRIDIUM,1L2

main69220-78092-C1iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202304-202311

GRAPHITE BLACK GF.,223

main69220-78092-E1iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202304-202311

SONIC COPPER,2YF ,4Y5

main69220-78092-J3iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

AETHER ME.,2YG ,8Z2

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33030×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-76011×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9014860083

main90148-60083

9014880066

main90148-80066

20 parts on this diagram · 1 diagram in section
