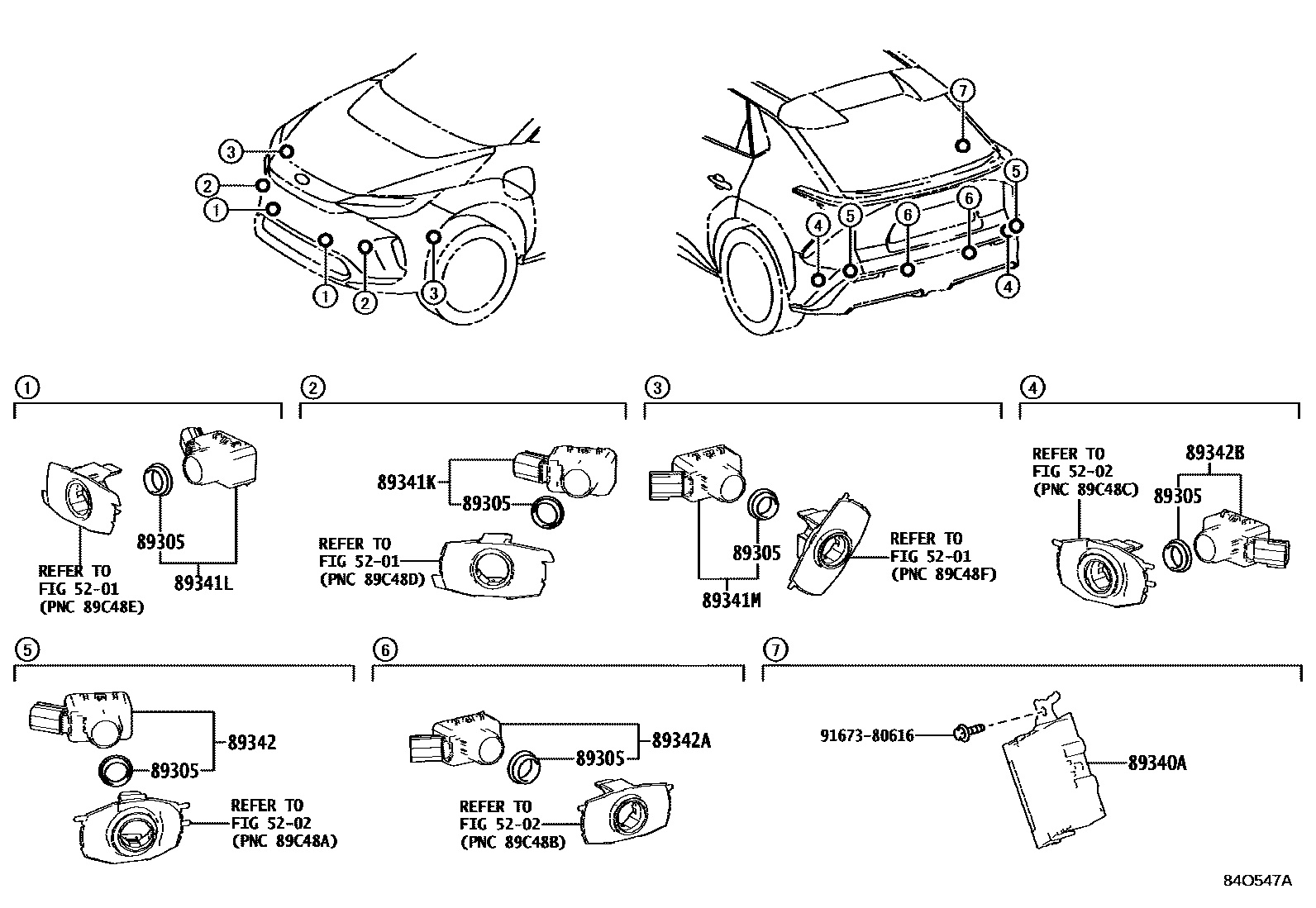

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-42180i202203-202310

*614; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),*614

main89340-42190i202203-202302

*614

main89340-42191i202302-202311

*614

main89340-42350i202311-202411

*614; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),*614

main89340-42351i202412

*614; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),*614

main89340-42360i202311-202411

*614

main89340-42361i202412

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-A4×2i202203-202411

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089 ,2VP; PLATINUM WHITE PEARL MC.,089 ,2VP

main89341-K0060-B3×2i202203-202411

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS SILVER,1J6 ,2MR; PRECIOUS SILVER,1J6 ,2MR

main89341-K0060-C1×2i202412

BLACK,202; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,202

main89341-K0060-D4×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,2TB ,3U5; EMOTIONAL RED 2,2TB ,3U5

main89341-K0060-J4×2i202203-202411

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DK.BLUE MC.,2MT ,8S6; DK.BLUE MC.,2MT ,8S6

main89341-K0060-P8×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5 ,2WC; PRECIOUS METAL,1L5 ,2WC

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-K0060-A4×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089 ,2VP; PLATINUM WHITE PEARL MC.,089 ,2VP

main89341-K0060-B3×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS SILVER,1J6 ,2MR; PRECIOUS SILVER,1J6 ,2MR

main89341-K0060-C1×2i202203-202411

BLACK,202; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,202

main89341-K0060-D4×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,2TB ,3U5; EMOTIONAL RED 2,2TB ,3U5

main89341-K0060-J4×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DK.BLUE MC.,2MT ,8S6; DK.BLUE MC.,2MT ,8S6

main89341-K0060-P8×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5 ,2WC; PRECIOUS METAL,1L5 ,2WC

89341MSENSOR, ULTRASONIC, FRONT SIDE

main89341-K0070-C8×2i202412

DUMMY-MAT BLACK

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060-A4×2i202203-202411

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089 ,2VP; PLATINUM WHITE PEARL MC.,089 ,2VP

main89341-K0060-B3×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS SILVER,1J6 ,2MR; PRECIOUS SILVER,1J6 ,2MR

main89341-K0060-C1×2i202203-202411

BLACK,202; CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,202

main89341-K0060-D4×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,2TB ,3U5; EMOTIONAL RED 2,2TB ,3U5

main89341-K0060-J4×2i202203-202411

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DK.BLUE MC.,2MT ,8S6; DK.BLUE MC.,2MT ,8S6

main89341-K0060-P8×2i202412

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PRECIOUS METAL,1L5 ,2WC; PRECIOUS METAL,1L5 ,2WC

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-50080-C0×2i202304-202411

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DUMMY-MAT BLACK; DUMMY-MAT BLACK

main89341-K0060-C0×2i202203-202303

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DUMMY-MAT BLACK; DUMMY-MAT BLACK

89342BSENSOR, ULTRASONIC, REAR SIDE

main89341-K0070-A7×2i202412

PLATINUM WHITE PEARL MC.,089 ,2VP

main89341-K0070-B1×2i202203-202411

PRECIOUS SILVER,1J6 ,2MR

main89341-K0070-C0×2i202412

BLACK,202

main89341-K0070-D4×2i202412

EMOTIONAL RED 2,2TB ,3U5

main89341-K0070-J2×2i202412

DK.BLUE MC.,2MT ,8S6

main89341-K0070-P0×2i202412

PRECIOUS METAL,1L5 ,2WC

9167380616

main91673-80616
