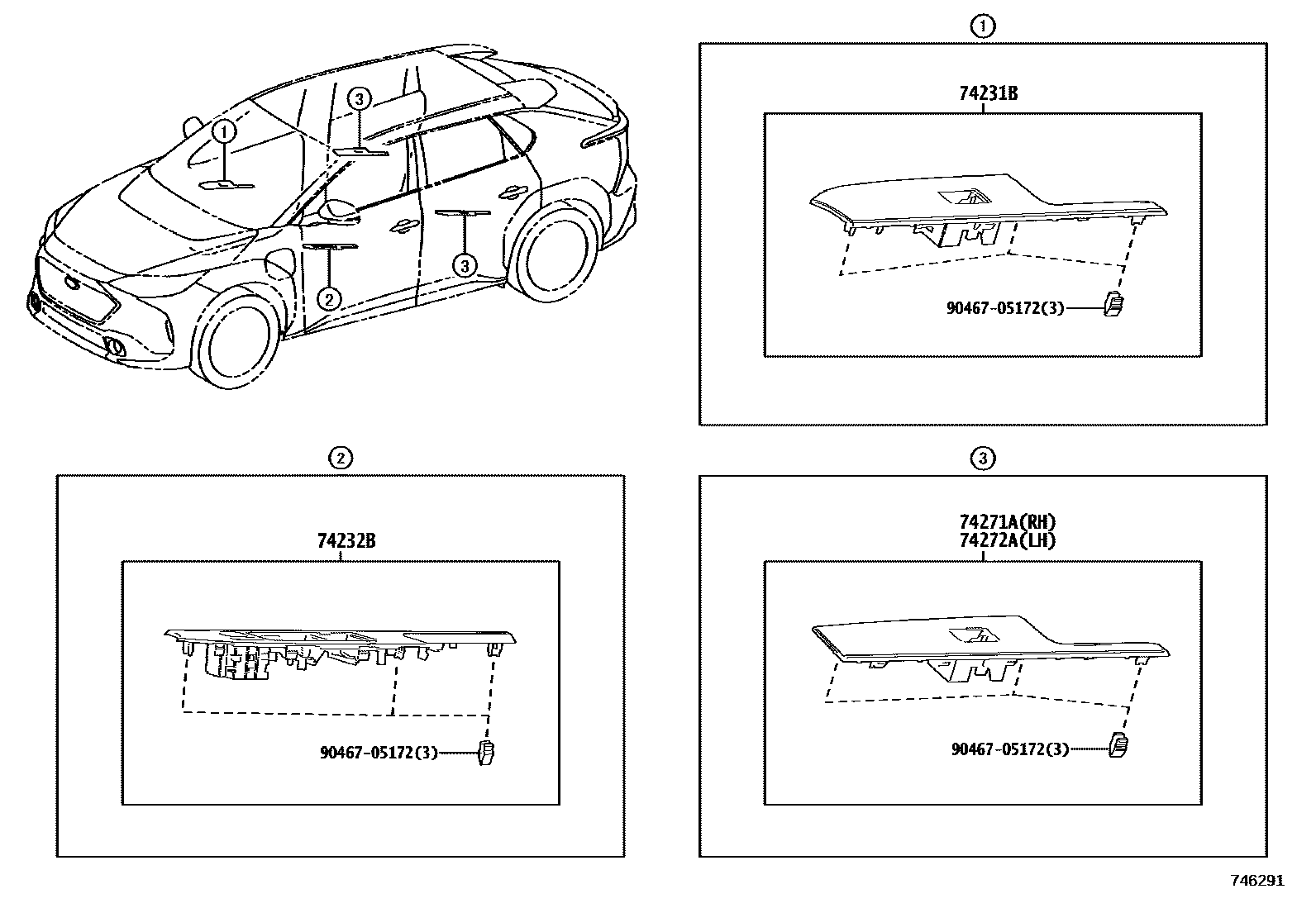

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231BPANEL, DOOR ARMREST BASE, RH

main74231-42210iXEAM10,YEAM15..RHD202203-202411

main74231-42310iXEAM10,YEAM15..LHD202203-202411

74232BPANEL, DOOR ARMREST BASE, LH

main74232-42260iXEAM10,YEAM15..RHD202203-202411

main74232-42270iXEAM10,YEAM15..LHD202203-202411

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-42140iXEAM10,YEAM15202203-202411

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-42140iXEAM10,YEAM15202203-202411

9046705172

main90467-05172

5 parts on this diagram · 3 diagrams in section
