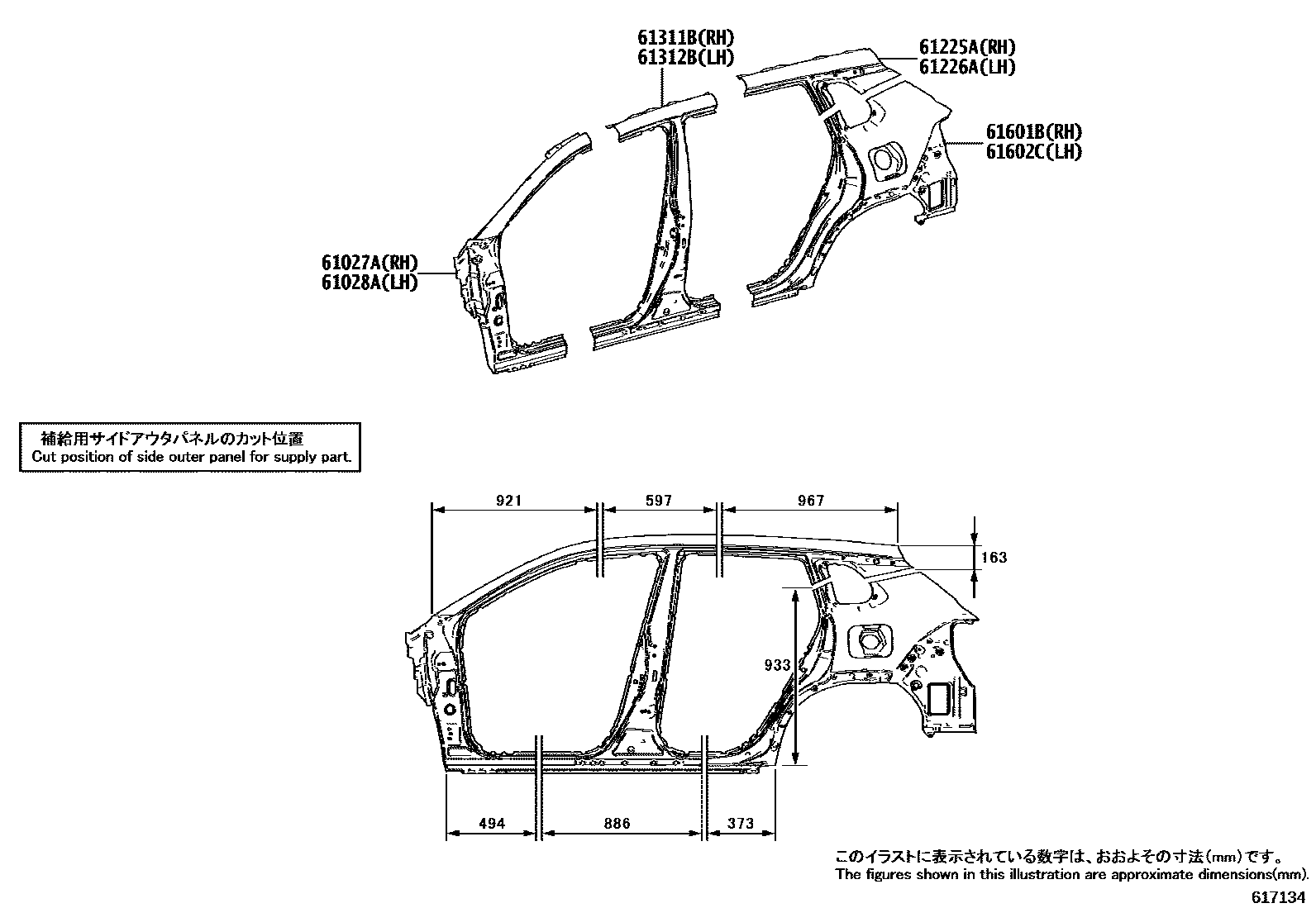

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,LH 0003 1INNER PANEL,RH

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-16080iMXGA10,MXGH1#,ZVG1#202207

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-16080iMXGA10,MXGH1#,ZVG1#202207

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-16010iMXGA10,MXGH1#,ZVG1#202207-202401

main61225-16011iMXGA10,MXGH1#,ZVG1#202401

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-16010iMXGA10,MXGH1#,ZVG1#202207-202401

main61226-16011iMXGA10,MXGH1#,ZVG1#202401

61311BPILLAR, CENTER BODY, OUTER RH

main61311-16030iMXGA10,MXGH1#,ZVG1#202207

61312BPILLAR, CENTER BODY, OUTER LH

main61312-16040iMXGA10,MXGH1#,ZVG1#202207

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-16A00iMXGA10,MXGH1#,ZVG1#202207

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-16A00iMXGA10,MXGH1#,ZVG1#202207

8 parts on this diagram · 3 diagrams in section
