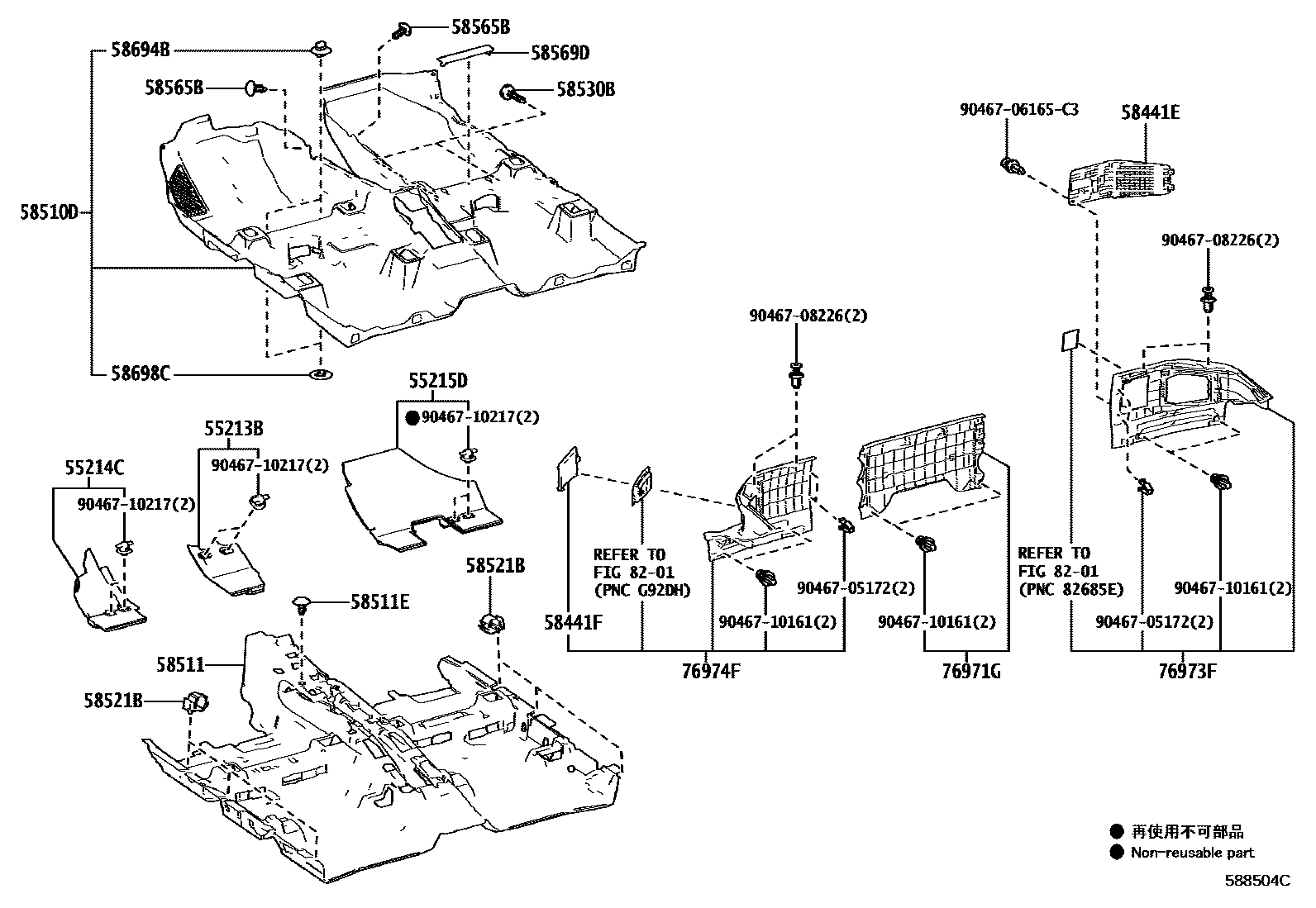

MAT & CARPET

0001 1 0002 1 0003 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-10370iMXGA10,MXGH1#,ZVG13..RHD202207

main55213-10380iMXGH12,15,ZVG1#..LHD202207

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-10270iMXGA10,MXGH1#,ZVG13..RHD202207

main55214-10280iMXGH12,15,ZVG1#..LHD202207

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-10150iMXGA10,MXGH1#,ZVG13..RHD202207

main55215-10160iMXGH12,15,ZVG1#..LHD202207

58441ECOVER, BATTERY SERVICE HOLE

main58441-16030-C0iMXGH15..N..ARL;MXGH10,ZVG13..G,J,N;MXGH12,15,ZVG12..EUR202207

BLACK,TRIM2#

main58441-16030-C0iMXGH15..N..ARL;MXGH10,ZVG13..G,J,N;MXGH12,15,ZVG12..EUR202207

BLACK,TRIM1#,2#

58441FCOVER, BATTERY SERVICE HOLE

main58441-16040-C0iMXGH10,15..E..ARL202207

BLACK,TRIM2#

main58441-16040-C0iMXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

58510DCARPET ASSY, FLOOR, FRONT

main58510-16A10-C0iMXGH12,15,ZVG1#..LHD202207

BLACK,TRIM1#,2#

main58510-1S790-C0iMXGA10..E202207

BLACK,TRIM1#,2#

main58510-1S790-C0iMXGA10..J,N202207

BLACK,TRIM2#

main58510-1S800-C0iMXGH15..N..ARL;MXGH12,15..RHD..EUR;MXGH10,ZVG13..RHD..(G,J,N)202207

BLACK,TRIM2#

main58510-1S800-C0iMXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

58511MAT, FLOOR, FRONT

main58511-16160iMXGA10202207-202401

main58511-16170iMXGA10,MXGH1#,ZVG1#202401

main58511-16180iMXGH1#,ZVG1#202207-202401

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iMXGA10,MXGH1#,ZVG1#202207

BLACK

58521BHOOK, FLOOR CARPET

main58521-33060iMXGA10,MXGH1#,ZVG1#202207

58530BCLIP(FOR FRONT FLOOR CARPET)

main64726-10020-C2iMXGH15..N..ARL;MXGH12,15,ZVG12..EUR;MXGA10,MXGH10,ZVG13..G,J,N202207

BLACK,TRIM1#,2#

main64726-10020-C2iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

58565BCLIP

main90467-05164-C7iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main90467-05164-C7iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-47020-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main58569-47020-C1iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

58694BPLATE, MAT SET, UPPER

main58694-33010iMXGA10,MXGH1#,ZVG1#202207

58698CPLATE, MAT SET, LOWER

main58698-33010iMXGA10,MXGH1#,ZVG1#202207

76971GCOVER, REAR UNDER

main76971-47020-C1iMXGH10,15..E..ARL202207

BLACK,TRIM2#

main76971-47020-C1iMXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

76973FCOVER, REAR UNDER SIDE, RH

main76973-16010-C0iMXGH10,15..E..ARL202207

BLACK,TRIM2#

main76973-16010-C0iMXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

76974FCOVER, REAR UNDER SIDE, LH

main76974-16010-C0iMXGH10,15..E..ARL202207

BLACK,TRIM2#

main76974-16010-C0iMXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

9046705172

main90467-05172

9046706165C3

main90467-06165C3

9046708226

main90467-08226

9046710161

main90467-10161

9046710217

main90467-10217

23 parts on this diagram · 3 diagrams in section
