BATTERY & BATTERY CABLE

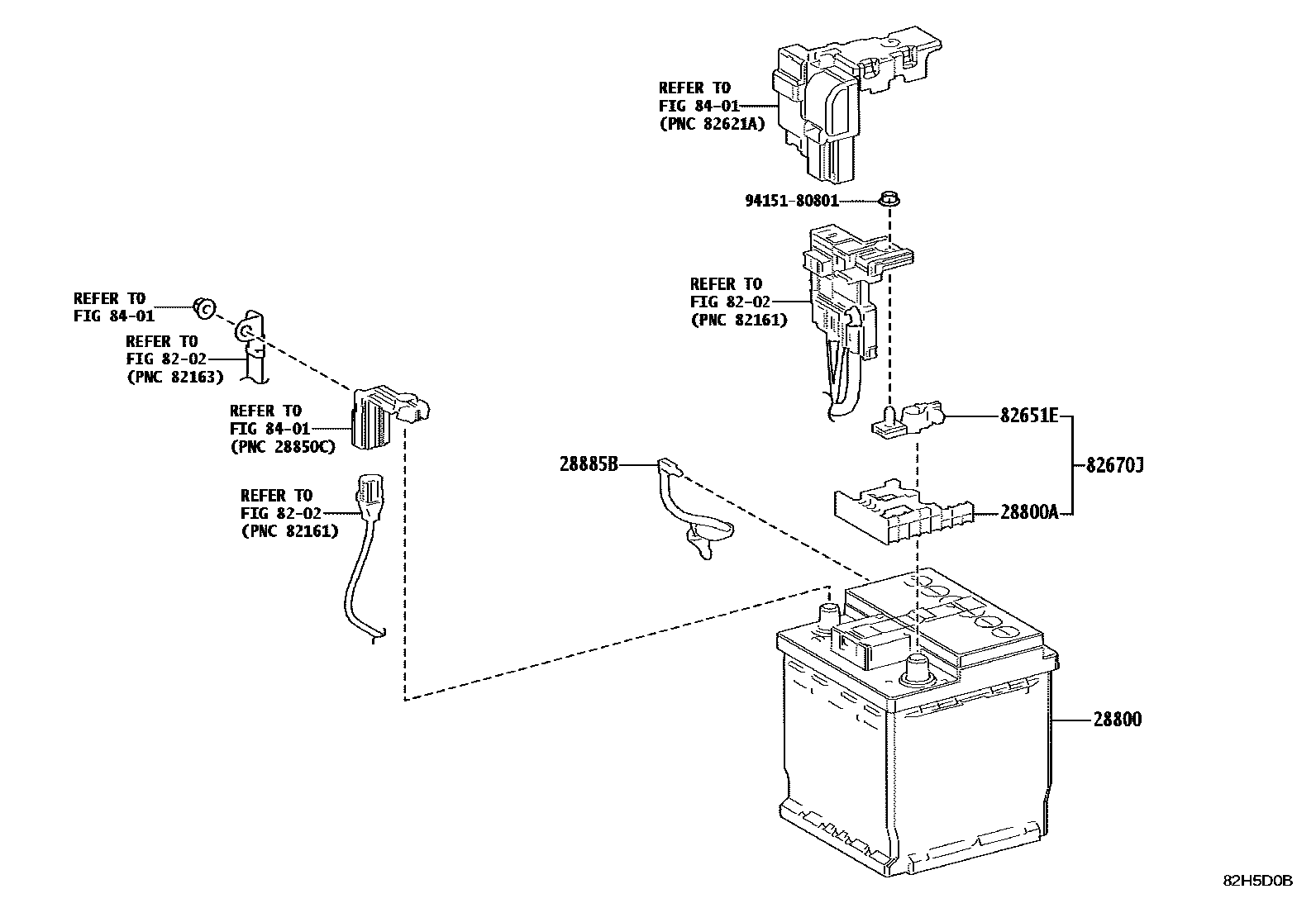

0001 112V BATTERY 0002 1HV BATTERY 1/2 0003 1HV BATTERY 2/2

28800BATTERY

main28800-21212iM15AFXE..MAYH1#202312-202403

LN0

main28800-21213iM15AFXE..MAYH1#202404

LN0

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iM15AFXE..MAYH1#202312

28885BHOSE, BATTERY

main28885-K0010iM15AFXE..MAYH1#202312

82651EBLOCK, TERMINAL

main82671-33090iMAYH1#202312

82670JBLOCK ASSY, JUNCTION

main82670-33140iMAYH1#202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

7 parts on this diagram · 3 diagrams in section
