ARMREST & VISOR

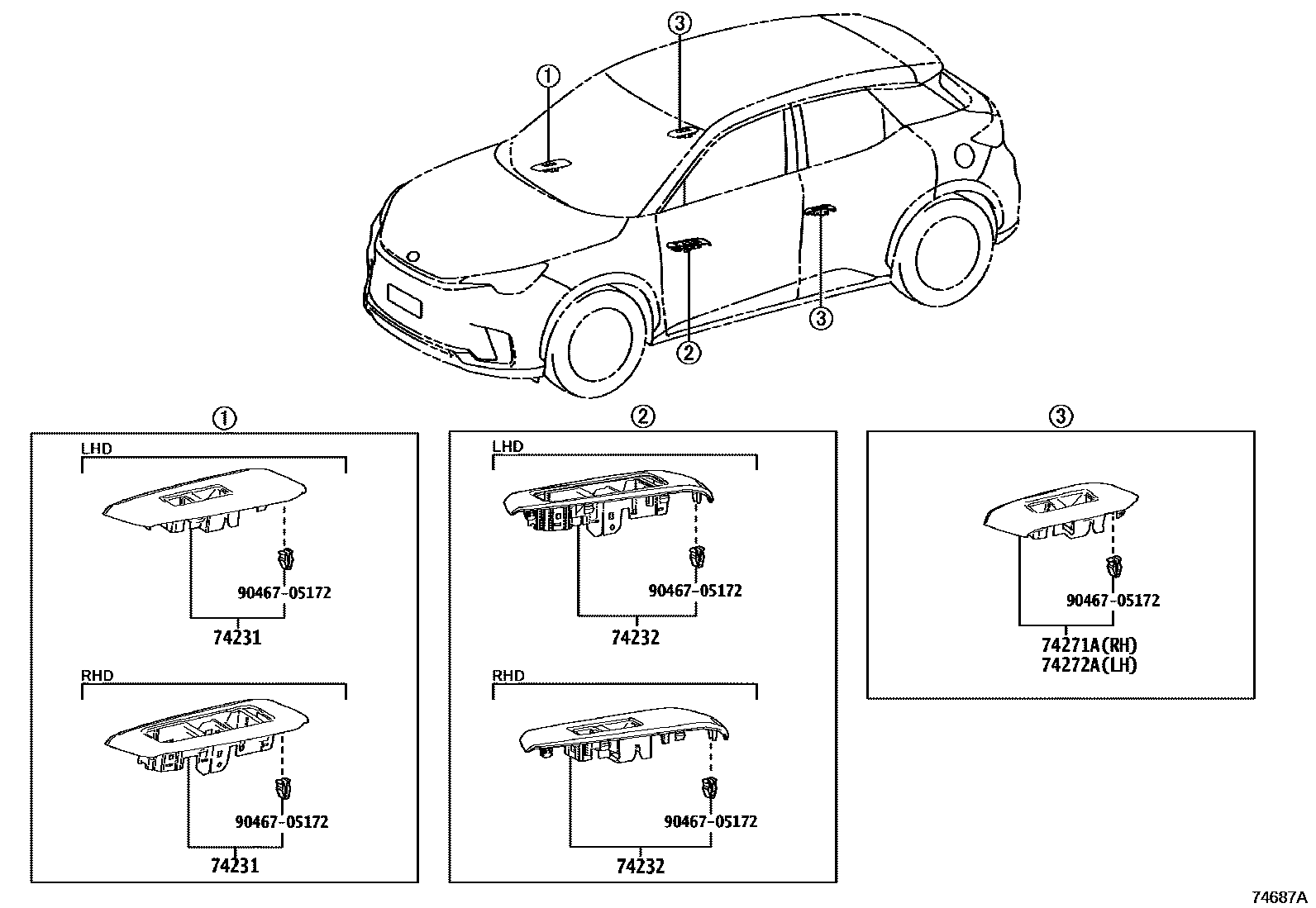

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-52C10-C0i202312
BLACK,TRIM2#
main74231-52C30-B0i202312
DK.METAL,TRIM0#,2#,3#,4#
main74231-52C30-B0i202312
"ELEGANT",DK.METAL,TRIM0#,2#,3#,4#
main74231-52C30-B0i202312
"ACTIVE",DK.METAL,TRIM0#,2#,3#,4#
main74231-52C30-B0i202312
"RELAX",DK.METAL,TRIM0#,2#,3#,4#
main74231-52C30-B0i202312
"COOL",DK.METAL,TRIM0#,2#,3#,4#
main74231-52C50-C0i202312
BLACK,TRIM2#
main74231-52C70-B0i202312
DK.METAL,TRIM0#,2#,3#,4#
main74231-52C70-B0i202312
"ELEGANT",DK.METAL,TRIM0#,2#,3#,4#
main74231-52C70-B0i202312
"ACTIVE",DK.METAL,TRIM0#,2#,3#,4#
main74231-52C70-B0i202312
"RELAX",DK.METAL,TRIM0#,2#,3#,4#
main74231-52C70-B0i202312
"COOL",DK.METAL,TRIM0#,2#,3#,4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-52A40-C0i202312
BLACK,TRIM2#
main74232-52A60-B0i202312
DK.METAL,TRIM0#,2#,3#,4#
main74232-52A60-B0i202312
"ELEGANT",DK.METAL,TRIM0#,2#,3#,4#
main74232-52A60-B0i202312
"ACTIVE",DK.METAL,TRIM0#,2#,3#,4#
main74232-52A60-B0i202312
"RELAX",DK.METAL,TRIM0#,2#,3#,4#
main74232-52A60-B0i202312
"COOL",DK.METAL,TRIM0#,2#,3#,4#
main74232-52A80-C0i202312
BLACK,TRIM2#
main74232-52B00-B0i202312
DK.METAL,TRIM0#,2#,3#,4#
main74232-52B00-B0i202312
"ELEGANT",DK.METAL,TRIM0#,2#,3#,4#
main74232-52B00-B0i202312
"ACTIVE",DK.METAL,TRIM0#,2#,3#,4#
main74232-52B00-B0i202312
"RELAX",DK.METAL,TRIM0#,2#,3#,4#
main74232-52B00-B0i202312
"COOL",DK.METAL,TRIM0#,2#,3#,4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-52400-C0i202312
BLACK,TRIM2#
main74271-52420-B0i202312
DK.METAL,TRIM0#,2#,3#,4#
main74271-52420-B0i202312
"ELEGANT",DK.METAL,TRIM0#,2#,3#,4#
main74271-52420-B0i202312
"ACTIVE",DK.METAL,TRIM0#,2#,3#,4#
main74271-52420-B0i202312
"RELAX",DK.METAL,TRIM0#,2#,3#,4#
main74271-52420-B0i202312
"COOL",DK.METAL,TRIM0#,2#,3#,4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-52380-C0i202312
BLACK,TRIM2#
main74272-52400-B0i202312
DK.METAL,TRIM0#,2#,3#,4#
main74272-52400-B0i202312
"ELEGANT",DK.METAL,TRIM0#,2#,3#,4#
main74272-52400-B0i202312
"ACTIVE",DK.METAL,TRIM0#,2#,3#,4#
main74272-52400-B0i202312
"RELAX",DK.METAL,TRIM0#,2#,3#,4#
main74272-52400-B0i202312
"COOL",DK.METAL,TRIM0#,2#,3#,4#
9046705172
main90467-05172

5 parts on this diagram · 2 diagrams in section
