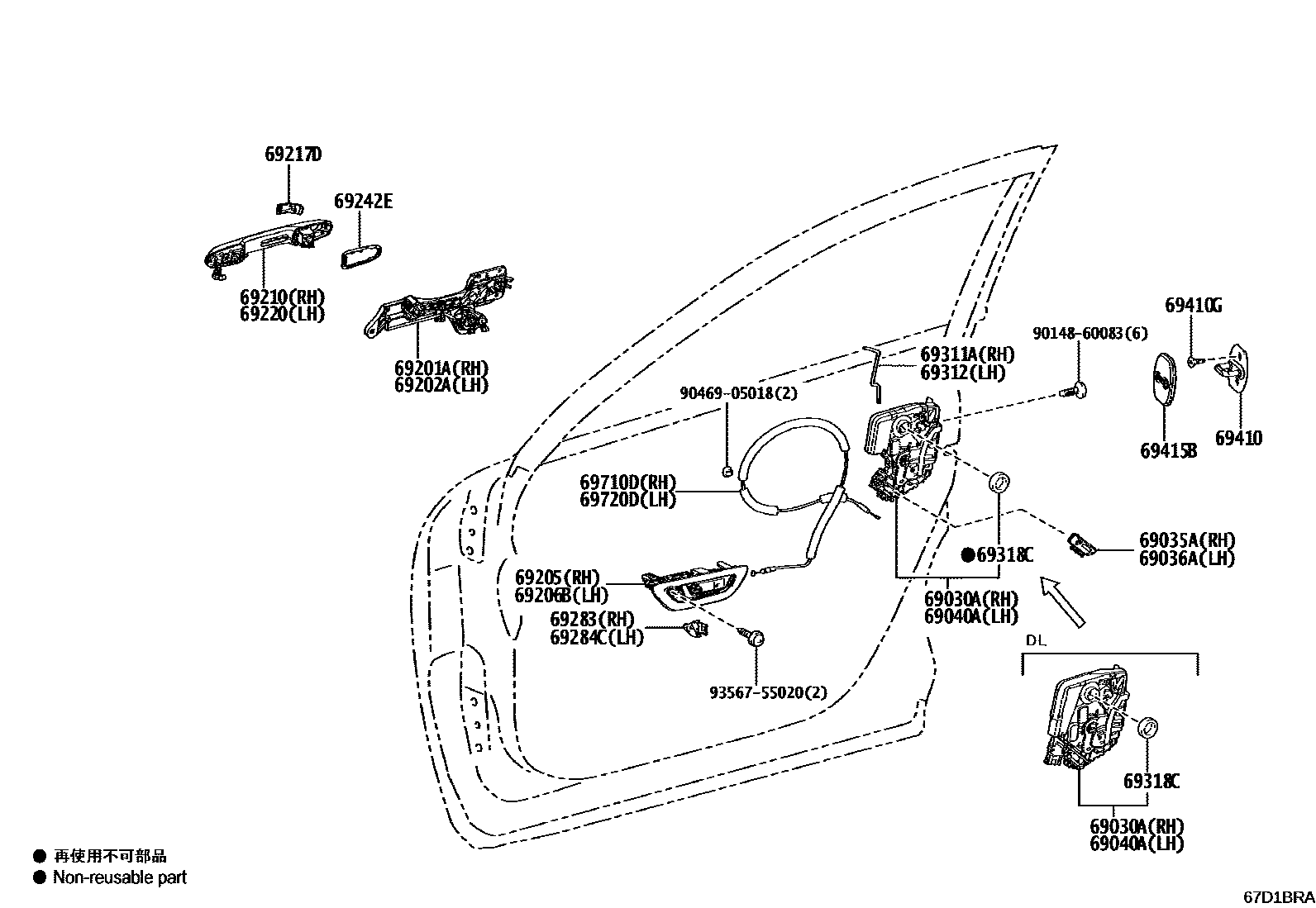

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
IRELAND SPEC
CYPRUS SPEC
MALTA SPEC
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
IRELAND SPEC
CYPRUS SPEC
MALTA SPEC
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
IRELAND SPEC
IRELAND SPEC&SMART ENTRY-WITH
CYPRUS SPEC
CYPRUS SPEC&SMART ENTRY-WITH
MALTA SPEC
MALTA SPEC&SMART ENTRY-WITH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.METAL,TRIM0#,2#,3#,4#,8#
DK.METAL,TRIM0#,20,21,22,3#,4#,8#
BLACK,TRIM21
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.METAL,TRIM0#,2#,3#,4#,8#
DK.METAL,TRIM0#,20,21,22,3#,4#,8#
BLACK,TRIM21
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SONIC QUARTZ,085 ,2YM
SONIC CHROME,1L1 ,2YH
SILVER ME.,1F7 ,2LB
CEMENT GRAY ME.,1H5 ,2YN
BLACK MC.,209
EMOTIONAL RED 2,2TB ,3U5
SONIC COPPER,2YF ,4Y5
YELLOW,2PQ ,5A3
DK.BLUE M.M.,2VT ,8W7
SONIC QUARTZ,085 ,2YM
SONIC CHROME,1L1 ,2YH
SILVER ME.,1F7 ,2LB
CEMENT GRAY ME.,1H5 ,2YN
BLACK MC.,209
EMOTIONAL RED 2,2TB ,3U5
SONIC COPPER,2YF ,4Y5
YELLOW,2PQ ,5A3
DK.BLUE M.M.,2VT ,8W7
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
SONIC QUARTZ,085 ,2YM
SONIC CHROME,1L1 ,2YH
SILVER ME.,1F7 ,2LB
CEMENT GRAY ME.,1H5 ,2YN
BLACK MC.,209
EMOTIONAL RED 2,2TB ,3U5
SONIC COPPER,2YF ,4Y5
YELLOW,2PQ ,5A3
DK.BLUE M.M.,2LB ,2PQ ,2TB ,2VT ,2YF ,2YH ,2YM ,2YN ,8W7
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SONIC QUARTZ,085 ,2YM
SONIC CHROME,1L1 ,2YH
SILVER ME.,1F7 ,2LB
CEMENT GRAY ME.,1H5 ,2YN
BLACK MC.,209
EMOTIONAL RED 2,2TB ,3U5
SONIC COPPER,2YF ,4Y5
YELLOW,2PQ ,5A3
DK.BLUE M.M.,2VT ,8W7
SONIC QUARTZ,085 ,2YM
SONIC CHROME,1L1 ,2YH
SILVER ME.,1F7 ,2LB
CEMENT GRAY ME.,1H5 ,2YN
BLACK MC.,209
EMOTIONAL RED 2,2TB ,3U5
SONIC COPPER,2YF ,4Y5
YELLOW,2PQ ,5A3
DK.BLUE M.M.,2VT ,8W7
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69410GSCREW, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
9014860083
main90148-60083
9046905018
main90469-05018
9356755020
main93567-55020
25 parts on this diagram · 1 diagram in section
