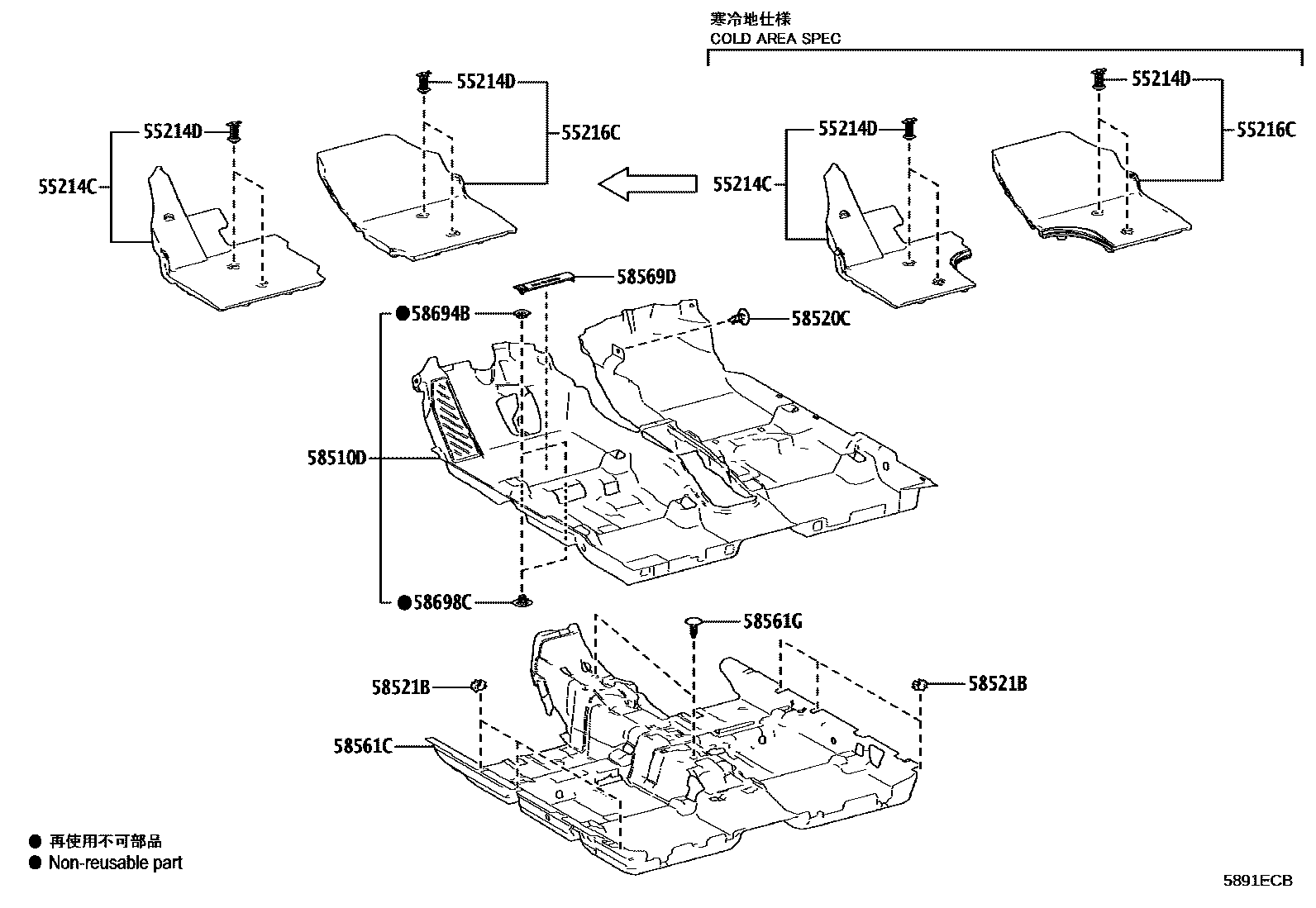

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55216CPAD, DASH PANEL INSULATOR, NO.4
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,2#,3#,4#,8#
58521BHOOK, FLOOR CARPET
58561CSILENCER, FRONT FLOOR, NO.1
58561GCLIP(FOR FRONT FLOOR SILENCER)
BLACK
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,2#,3#,4#,8#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
11 parts on this diagram · 2 diagrams in section
