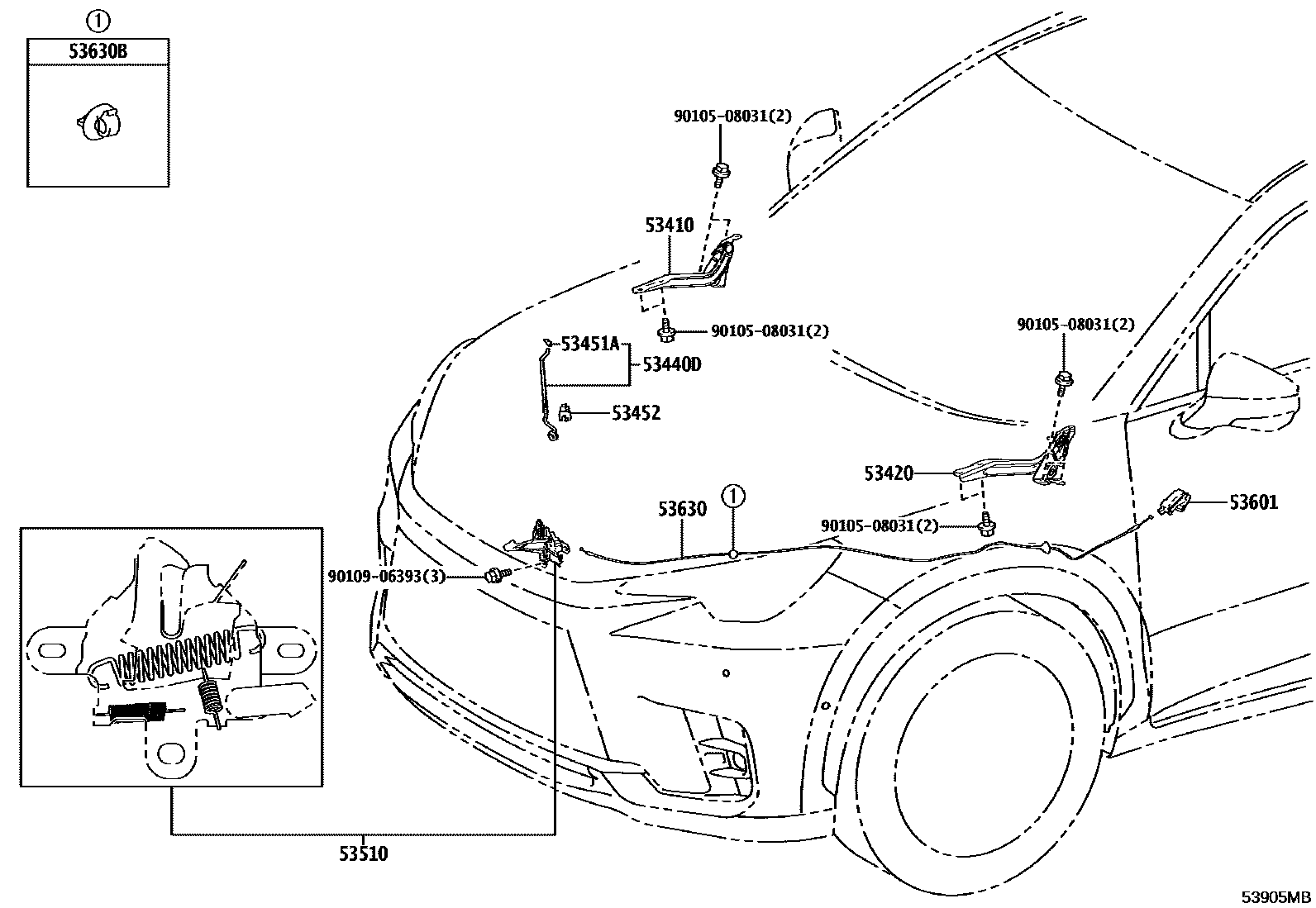

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-52590iMAYH1#202312

53420HINGE ASSY, HOOD, LH

main53420-52600iMAYH1#202312

53440DSUPPORT ASSY, HOOD

main53440-52350iMAYH1#202312

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iMAYH1#202312

53452HOLDER, HOOD STAY

main53452-76020iMAYH1#202312

53510LOCK ASSY, HOOD

main53510-52C50iMAYH1#..RHD202312

main53510-52C80iMAYH1#..LHD202312

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iMAYH1#202312

BLACK,TRIM0#,2#,3#,4#,8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52280iMAYH1#..RHD202312

main53630-52290iMAYH1#..LHD202312

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iMAYH1#..RHD202312

9010508031

main90105-08031

9010906393

main90109-06393

11 parts on this diagram · 2 diagrams in section
