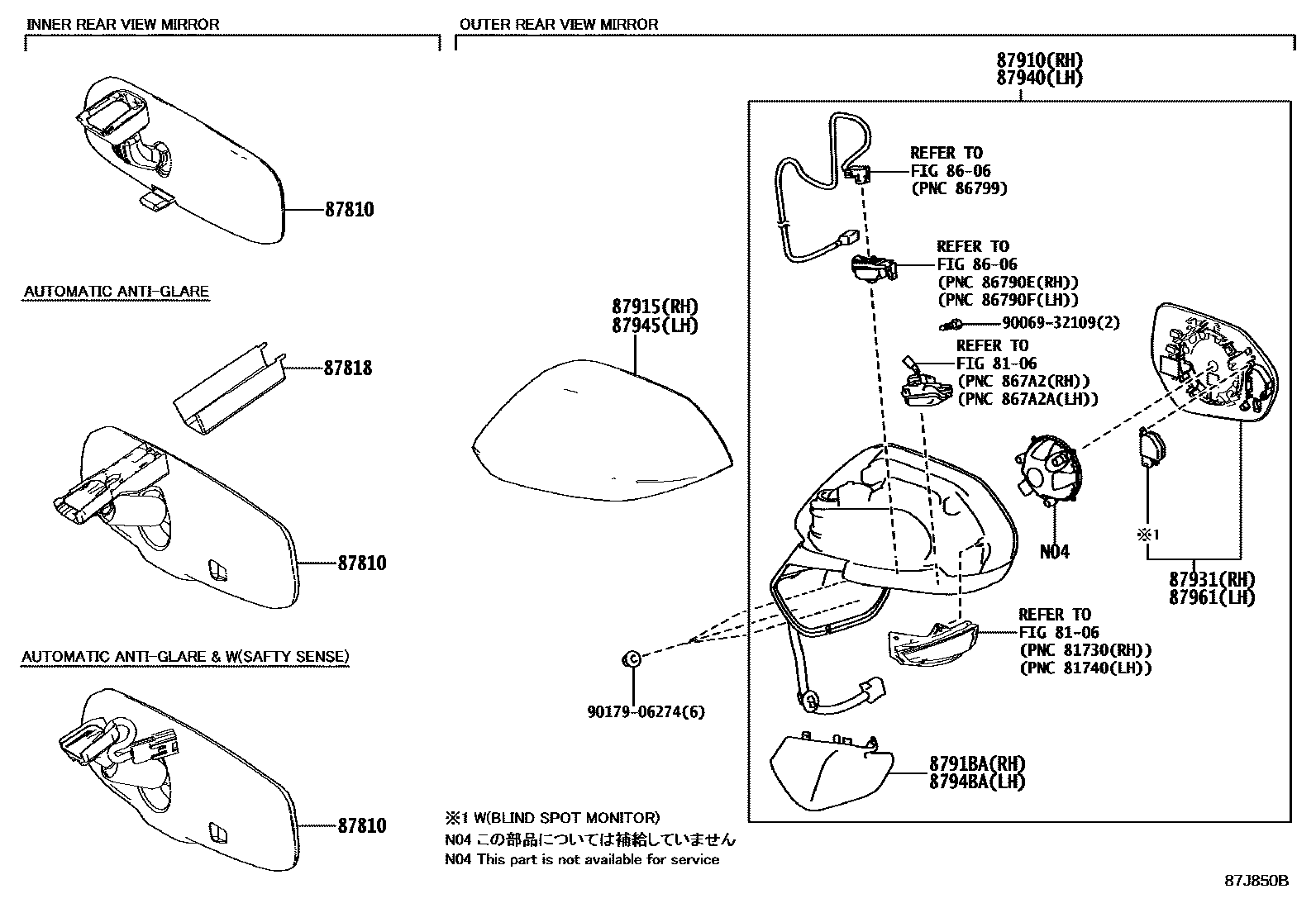

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITHOUT
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87818COVER, INNER RR VIEW MIRROR
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA
87915COVER, OUTER MIRROR, RH
BLACK,2TK ,2VS ,2VT ,2VU
BLACK,2VT ,2VU
SUPER WHITE 2,040
WHITE,2KQ ,2ND ,2ST ,2SU ,2SV
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1L0
BLACK MC.,209
BLACK MC.,209 ,2KR ,2KV ,2PU ,2RF ,2SZ ,2TT ,2TX ,2TY
BLACK MC.,040 ,089 ,1G3 ,1K6 ,1L0 ,209 ,2KV ,2PU ,2RZ ,2SZ ,3U5 ,8W7
BLACK MC.,209 ,2KR ,2PU ,2RF ,2SZ ,2TT ,2TX ,2TY
EMOTIONAL RED 2,3U5
BRASS GOLD ME.,5C2
BRASS GOLD ME.,2TZ ,2UA ,2UB ,2UC ,2VG ,5C2
OXIDE BRONZE ME.,6X1
GRAYISH BLUE,8W2
DK.BLUE M.M.,8W7
JUNIPER BLUE M.M.,8Y8
NO PAINT REQ.,BODY COLOR-TWO-TONES
NO PAINT REQ.
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM&BLIND SPOT MONITOR-WITH
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*57 & *HEA
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
BLACK,2VT ,2VU
BLACK,2TK ,2VS ,2VT ,2VU
SUPER WHITE 2,040
WHITE,2KQ ,2ND ,2ST ,2SU ,2SV
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1L0
BLACK MC.,209 ,2KR ,2KV ,2PU ,2RF ,2SZ ,2TT ,2TX ,2TY
BLACK MC.,209
BLACK MC.,040 ,089 ,1G3 ,1K6 ,1L0 ,209 ,2KV ,2PU ,2RZ ,2SZ ,3U5 ,8W7
BLACK MC.,209 ,2KR ,2PU ,2RF ,2SZ ,2TT ,2TX ,2TY
EMOTIONAL RED 2,3U5
BRASS GOLD ME.,2TZ ,2UA ,2UB ,2UC ,2VG ,5C2
BRASS GOLD ME.,5C2
OXIDE BRONZE ME.,6X1
GRAYISH BLUE,8W2
DK.BLUE M.M.,8W7
JUNIPER BLUE M.M.,8Y8
NO PAINT REQ.,BODY COLOR-TWO-TONES
NO PAINT REQ.
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM&BLIND SPOT MONITOR-WITH
BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
OUTSIDE REAR VIEW MIRROR-*57 & *HEA & *BSM & WITH(CAMERA)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
9006932109
main90069-32109
9017906274
main90179-06274
14 parts on this diagram · 1 diagram in section
