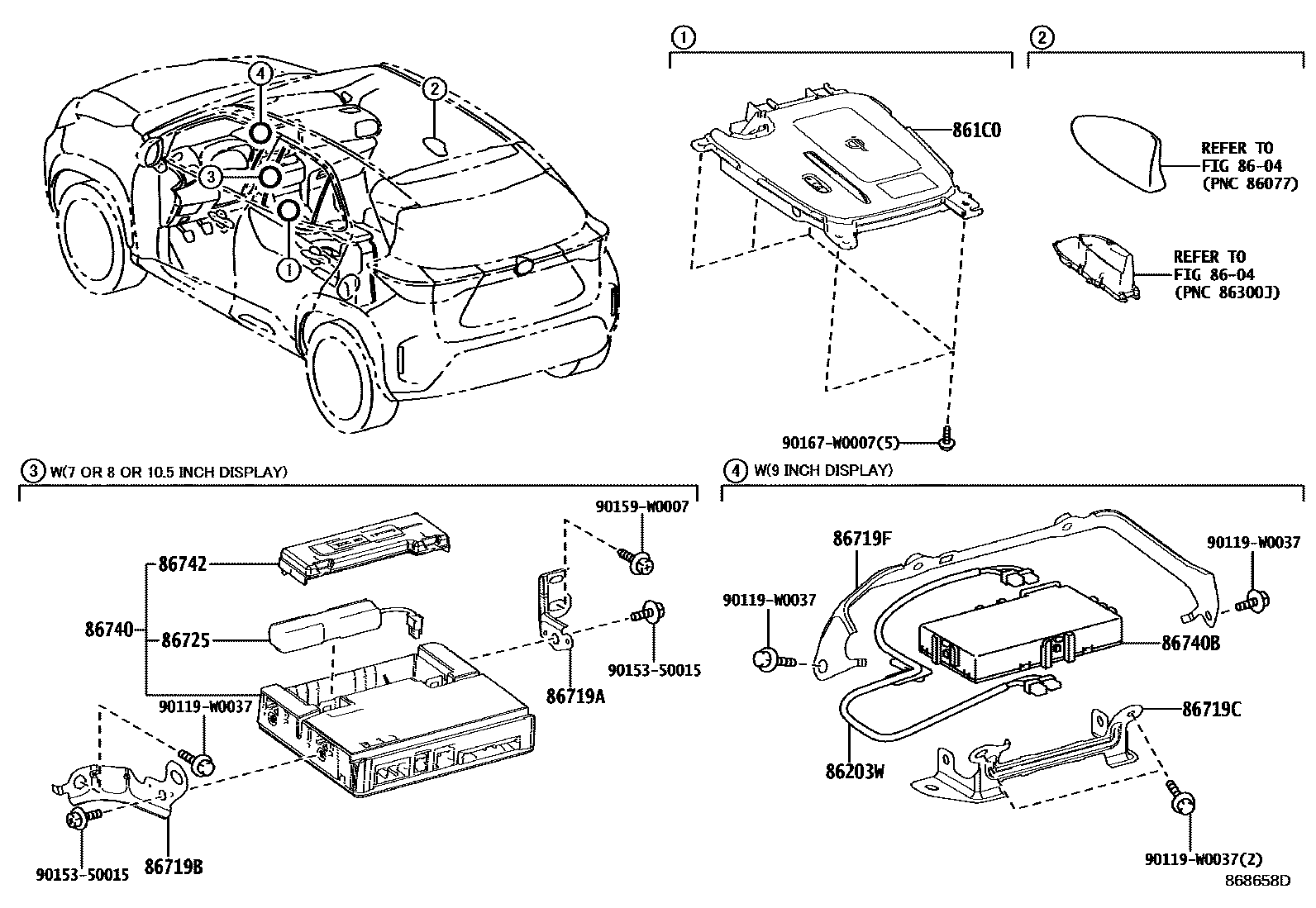

TELEPHONE & MAYDAY
8604ANTENNA
861C0CRADLE ASSY, MOBILE WIRELESS CHARGER
WIRELESS CHARGER-WITH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP &DOOR)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP &DOOR)
WIRELESS CHARGER-WITH
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR); WIRELESS CHARGER-WITH
86203WWIRING SUB-ASSY, RADIO
main86203-YP020iMXPB10..CVT..N;MXPJ15..RHD..N;MXPB10..LHD..6F..N; MXPB10..G; MXPB10..G;MXPJ15..RHD..N202107
AUDIO-WITHOUT & WITH(DAB); AUDIO-WITHOUT & WITH(DAB)&SPEAKER-6SPEAKER; AUDIO-WITHOUT & WITH(DAB)&SPEAKER-8SPEAKER
86719ABRACKET, TELEPHONE NO.1
main86719-K0050iMXPB10,MXPJ10..LHD..(G,N,R); MXPB10,MXPJ10..LHD..CVT..(G,N); MXPB10,MXPJ10..LHD..CVT..(G,N,R); MXPB10,MXPJ10..LHD..CVT..(N,R); MXPB10,MXPJ10..LHD..N; MXPB10..LHD; MXPJ10..LHD..(G,N,R)202107-202404
AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT; COLOMBIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; ECUADOR SPEC&DATA COMMUNICATION MODULE-WITHOUT; EGYPT SPEC&DATA COMMUNICATION MODULE-WITHOUT; GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; MOROCCO SPEC&DATA COMMUNICATION MODULE-WITHOUT; NEW CALEDONIA, TAHITI SPEC&DATA COMMUNICATION MODULE-WITHOUT; TUNISIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
86719BBRACKET, TELEPHONE NO.2
main86719-K0060iMXPB10,MXPJ10..LHD..(G,N,R); MXPB10,MXPJ10..LHD..CVT..(G,N); MXPB10,MXPJ10..LHD..CVT..(G,N,R); MXPB10,MXPJ10..LHD..CVT..(N,R); MXPB10,MXPJ10..LHD..N; MXPB10..LHD; MXPJ10..LHD..(G,N,R)202107-202404
AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT; COLOMBIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; ECUADOR SPEC&DATA COMMUNICATION MODULE-WITHOUT; EGYPT SPEC&DATA COMMUNICATION MODULE-WITHOUT; GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; MOROCCO SPEC&DATA COMMUNICATION MODULE-WITHOUT; NEW CALEDONIA, TAHITI SPEC&DATA COMMUNICATION MODULE-WITHOUT; TUNISIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
86719CBRACKET, TELEPHONE NO.3
main86719-YP020iMXPJ1#..G,V; MXPJ10..N;MXPJ15..LHD..N; MXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404
AUDIO-WITHOUT & WITH(DAB); AUDIO-WITHOUT & WITH(DAB)&SPEAKER-6SPEAKER; AUDIO-WITHOUT & WITH(DAB)&SPEAKER-8SPEAKER
86719FBRACKET, TELEPHONE NO.4
AUDIO-WITHOUT & WITH(DAB); AUDIO-WITHOUT & WITH(DAB)&SPEAKER-6SPEAKER; AUDIO-WITHOUT & WITH(DAB)&SPEAKER-8SPEAKER
AUDIO-WITHOUT & WITH(DAB); AUDIO-WITHOUT & WITH(DAB)&SPEAKER-6SPEAKER; AUDIO-WITHOUT & WITH(DAB)&SPEAKER-8SPEAKER
86725BATTERY, MOBILEPHONE
86740TRANSCEIVER ASSY, TELEPHONE
main86740-0D030iMXPB10,MXPJ1#; MXPB10,MXPJ10..LHD; MXPB10,MXPJ10..LHD..CVT; MXPB10,MXPJ10..LHD..CVT..(G,N); MXPB10,MXPJ10..LHD..CVT..(N,R); MXPB10,MXPJ10..LHD..N; MXPB10..LHD; MXPJ10..LHD202107-202110
AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT; COLOMBIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; ECUADOR SPEC&DATA COMMUNICATION MODULE-WITHOUT; EGYPT SPEC&DATA COMMUNICATION MODULE-WITHOUT; GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; MOROCCO SPEC&DATA COMMUNICATION MODULE-WITHOUT; NEW CALEDONIA, TAHITI SPEC&DATA COMMUNICATION MODULE-WITHOUT; TUNISIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
TURKY SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY; TURKY SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&AUDIO-10.5INCH DISPLAY(T1)&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY
TURKEY SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY
TURKEY SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL) FOR TURKEY
86740BTRANSCEIVER ASSY, TELEPHONE, NO.2
main86740-YP010iMXPJ1#..G,V; MXPJ10..N;MXPJ15..LHD..N; MXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404
AUDIO-WITHOUT & WITH(DAB); AUDIO-WITHOUT & WITH(DAB)&SPEAKER-6SPEAKER; AUDIO-WITHOUT & WITH(DAB)&SPEAKER-8SPEAKER
86742COVER, TRANSCEIVER
main86742-0D020iMXPJ10,11,16; MXPJ10,11..LHD..(G,N); MXPJ10..LHD..(G,N); MXPJ10..LHD..(G,N,R); MXPJ10..LHD..(N,R)202404
AZERBAIJAN SPEC; COLOMBIA SPEC; ECUADOR SPEC; GEORGIA SPEC; MOROCCO SPEC; NEW CALEDONIA SPEC; TAHITI SPEC; TUNISIA SPEC; UKRAINE SPEC
90119W0037
main90119-W0037
9015350015
main90153-50015
90159W0007
main90159-W0007
90167W0007
main90167-W0007
15 parts on this diagram · 2 diagrams in section
