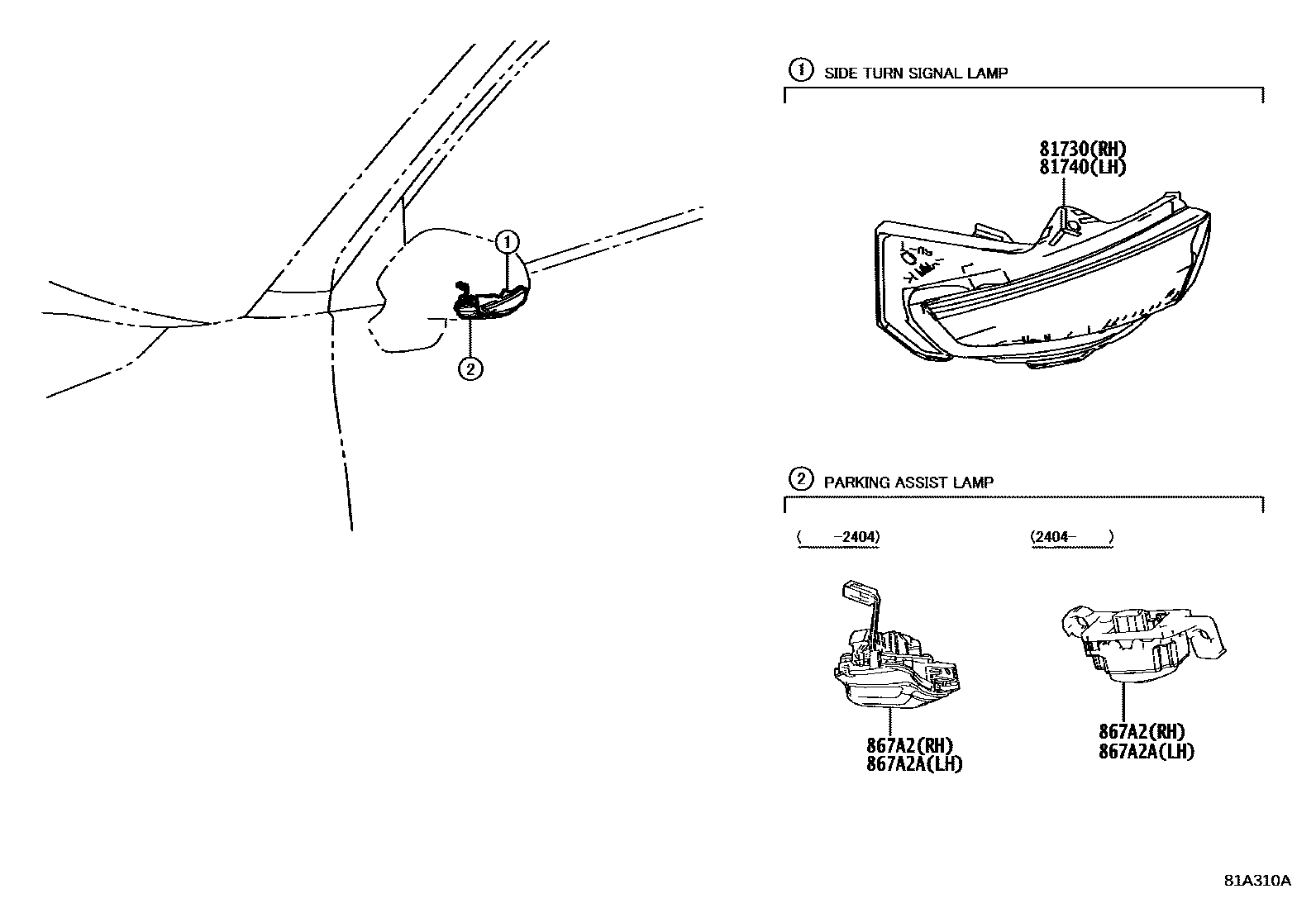

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-02200iMXPB10..RHD..6F202107-202504

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-02200iMXPB10..RHD..6F202107-202504

867A2LIGHT, PARKING ASSIST, RH

main867A2-K0010iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

BACK MONITOR-WITH(*PVM)

867A2ALIGHT, PARKING ASSIST, LH

main867A2-K0020iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

BACK MONITOR-WITH(*PVM)

4 parts on this diagram · 1 diagram in section
