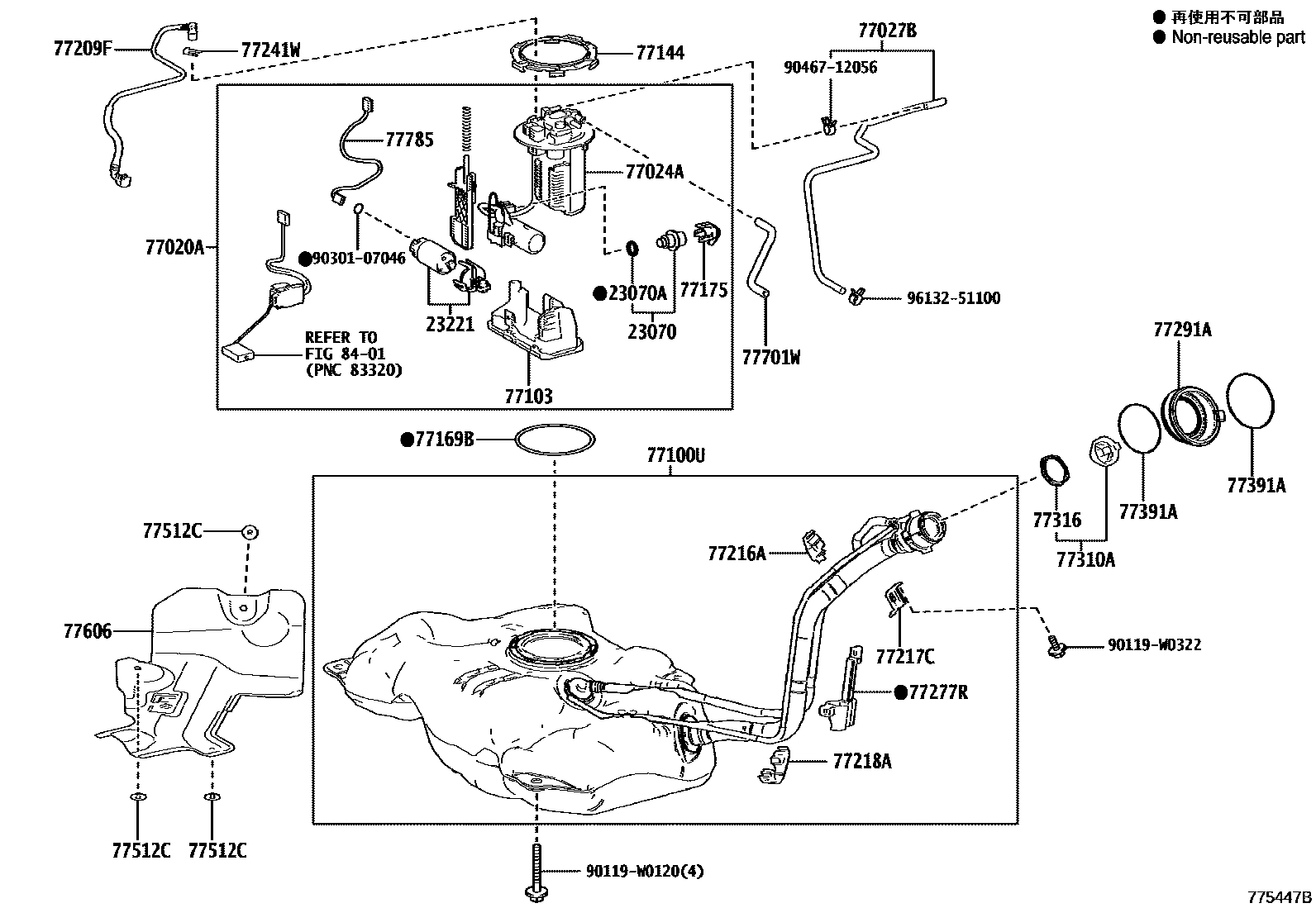

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER 0010 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM15AFKS..MXPB10..RHD..6F202107-202206

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202404-202504

23221PUMP, FUEL

main23210-0T010iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202404-202504

main23210-0T040iM15AFKS..MXPB10..CVT;M15AFXE..MXPJ15..RHD..N;M15AFKS..MXPB10..LHD..6F202107

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D280iMXPJ15..G;MXPJ15..LHD..N202404-202504

main77020-K0050iMXPB10..CVT;MXPB10..LHD..6F202107

main77020-K0080iMXPJ15..RHD..N202107

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0D150iMXPJ15..G;MXPJ15..LHD..N202404-202504

main77024-K0010iMXPB10..RHD..6F202107-202206

main77024-K0030iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-K0040iMXPB10..RHD..6F202107-202206

main77027-K0050iMXPJ15..RHD..N202107

77100UTANK SUB-ASSY, FUEL

main77001-0D490iMXPB10..RHD..6F202107-202206

main77001-0D500iMXPJ10202107-202404

main77001-0D510iMXPJ16202404

77103SUB-TANK SUB-ASSY, FUEL

main77103-F4070iMXPJ10,11,16202404

main77103-K0010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

main77103-K0030iMXPB10..CVT;MXPB10..LHD..6F202107

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXPB10..RHD..6F202107-202206

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-0D170iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202307

main77169-47040iMXPB10..LHD..6F;MXPB10,MXPJ1#..CVT202107-202306

77175SUPPORT, FUEL SUCTION, NO.2

main77175-02050iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-K0040iMXPB10..CVT;MXPB10..LHD..6F202107

main77209-K0060iMXPJ15..G;MXPJ15..LHD..N202404-202504

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-K0020iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0D250iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0D100iMXPJ16202404

main77218-K0030iMXPB10..CVT;MXPB10..LHD..6F202107

77241WCLIP, TUBE JOINT

main77241-32060iMXPB10..RHD..6F202107-202206

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52120iMXPJ10,11202404

main77277-52130iMXPJ15..G;MXPJ15..LHD..N202107-202404

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-K2010iMXPB10..RHD..6F202107-202206

77310ACAP ASSY, FUEL TANK

main77300-12020iMXPB10..RHD..6F202107-202206

77316GASKET, FUEL TANK CAP

main77316-52040iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

77391ARING, FUEL INLET BOX

main77391-12020×2iMXPB10..RHD..6F202107-202206

77512CBRACKET, FUEL TANK

main77512-35140×3iMXPJ10,11,16202404

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-K0060iMXPB10..RHD..6F202107-202206

main77606-K0090iMXPJ15..G;MXPJ15..LHD..N202404-202504

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-K0040iMXPB10..RHD..6F202107-202206

main77701-K0050iMXPJ15..RHD..N202107

77785HARNESS, FUEL PUMP

main77785-52120iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

main77785-52150iMXPJ10,11,16202404

main77785-76010iMXPB10..CVT;MXPB10..LHD..6F202107

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119W0120

main90119-W0120

90119W0322

main90119-W0322

9030107046

main90301-07046

9046712056

main90467-12056

9613251100

main96132-51100

31 parts on this diagram · 9 diagrams in section
