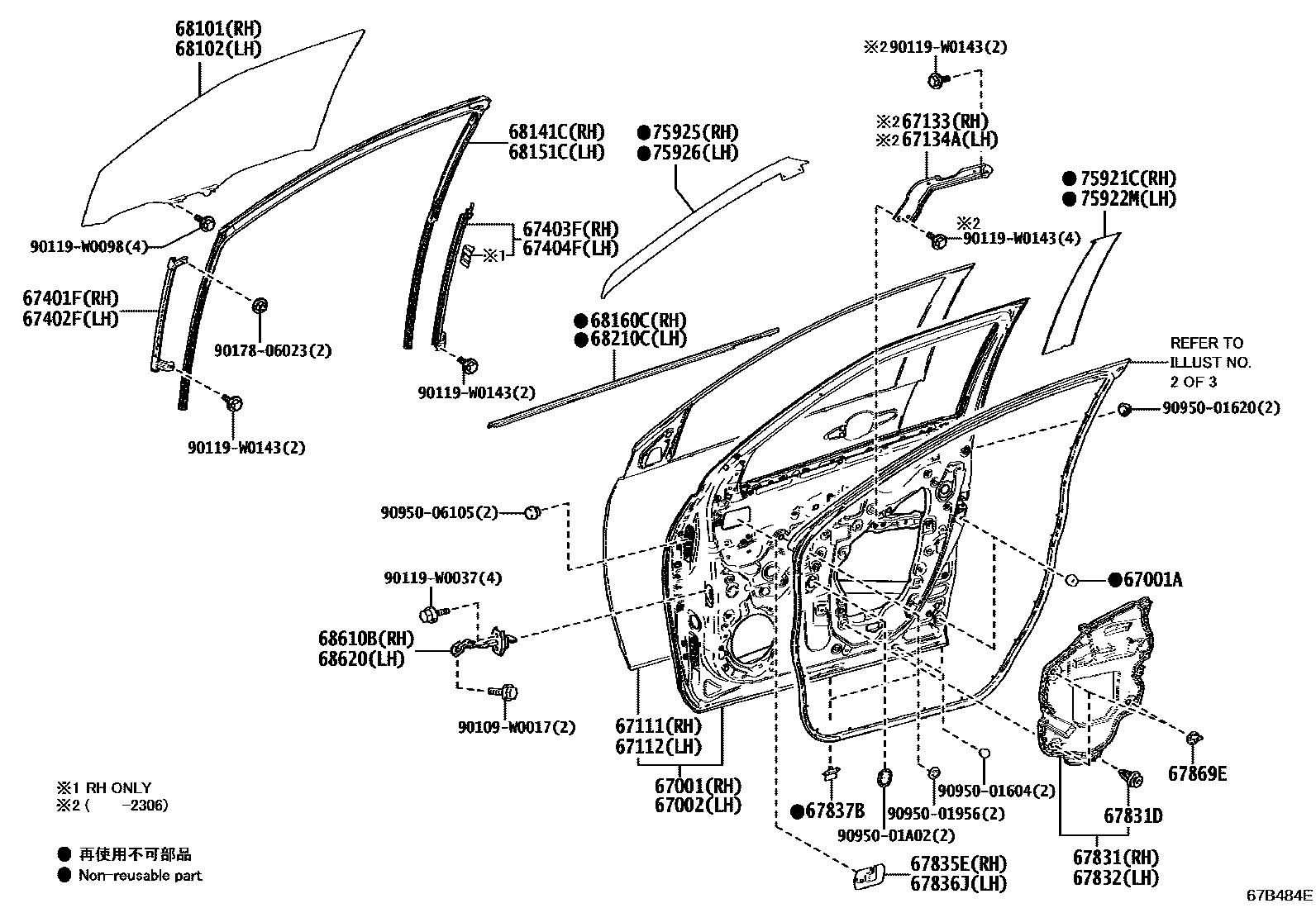

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHERSTRIP 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-K2010iMXPB10..LHD..6F;MXPB10,MXPJ1#..CVT202107-202305

main67001-K2011iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202306-202404

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iMXPB10..RHD..6F202107-202206

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-K2010iMXPB10..RHD..6F202107-202206

main67002-K2011iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202306-202404

67111PANEL, FRONT DOOR, OUTER RH

main67111-K2010iMXPB10..RHD..6F202107-202206

67112PANEL, FRONT DOOR, OUTER LH

main67112-K2010iMXPB10..RHD..6F202107-202206

67133EXTENSION, FRONT DOOR OUTSIDE PANEL REINFOCEMENT, REAR RH

main67133-0D010iMXPB10..RHD..6F202107-202206

67134AEXTENSION, FRONT DOOR OUTSIDE PANEL REINFOCEMENT, REAR LH

main67134-0D010iMXPB10..RHD..6F202107-202206

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-K2010iMXPB10..RHD..6F202107-202206

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-K2010iMXPB10..RHD..6F202107-202206

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-K2010iMXPB10..RHD..6F202107-202206

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-K2010iMXPB10..RHD..6F202107-202206

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-K0010iMXPB10..RHD..6F202107-202206

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iMXPB10..RHD..6F202107-202206

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-K0010iMXPB10..RHD..6F202107-202206

67835ESEAL, FRONT DOOR SERVICE HOLE, NO.2 RH

main67835-K2010iMXPB10..RHD..6F202107-202206

67836JSEAL, FRONT DOOR SERVICE HOLE, NO.2 LH

main67836-K2010iMXPB10..RHD..6F202107-202206

67837BSEAL, FRONT DOOR DUST PROOF

main67837-48050×4iMXPJ10,11,16202404

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iMXPB10..RHD..6F202107-202206

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0D011iMXPB10..RHD..6F202107-202206

main68101-0D100iMXPJ10,11,16202404

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0D011iMXPB10..RHD..6F202107-202206

main68102-0D100iMXPJ15..G;MXPJ15..LHD..N202404-202504

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D340iMXPJ10,11,16202404

main68141-K2010iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

68151CRUN, FRONT DOOR GLASS, LH

main68151-0D290iMXPJ15..G;MXPJ15..LHD..N202404-202504

main68151-K2010iMXPB10..RHD..6F202107-202206

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-K2010iMXPB10..RHD..6F202107-202206

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-K2010iMXPJ15..G;MXPJ15..LHD..N202404-202504

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0D260iMXPJ15..G;MXPJ15..LHD..N202404-202504

main68610-52200iMXPB10..RHD..6F202107-202206

68620CHECK ASSY, FRONT DOOR, LH

main68610-0D260iMXPJ15..G;MXPJ15..LHD..N202404-202504

main68610-52200iMXPB10..LHD..6F;MXPB10,MXPJ1#..CVT202107-202308

75921CTAPE, BLACK OUT, NO.1 RH

main75921-K2010iMXPJ15..G;MXPJ15..LHD..N202404-202504

75922MTAPE, BLACK OUT, NO.1 LH

main75922-K2010iMXPJ10,11,16202404

75925TAPE, BLACK OUT, NO.3 RH

main75935-K2010iMXPB10..RHD..6F202107-202206

75926TAPE, BLACK OUT, NO.3 LH

main75936-K2010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0098

main90119-W0098

90119W0143

main90119-W0143

9017806023

main90178-06023

9095001604

main90950-01604

9095001620

main90950-01620

9095001956

main90950-01956

9095001A02

main90950-01A02

9095006105

main90950-06105

40 parts on this diagram · 3 diagrams in section
