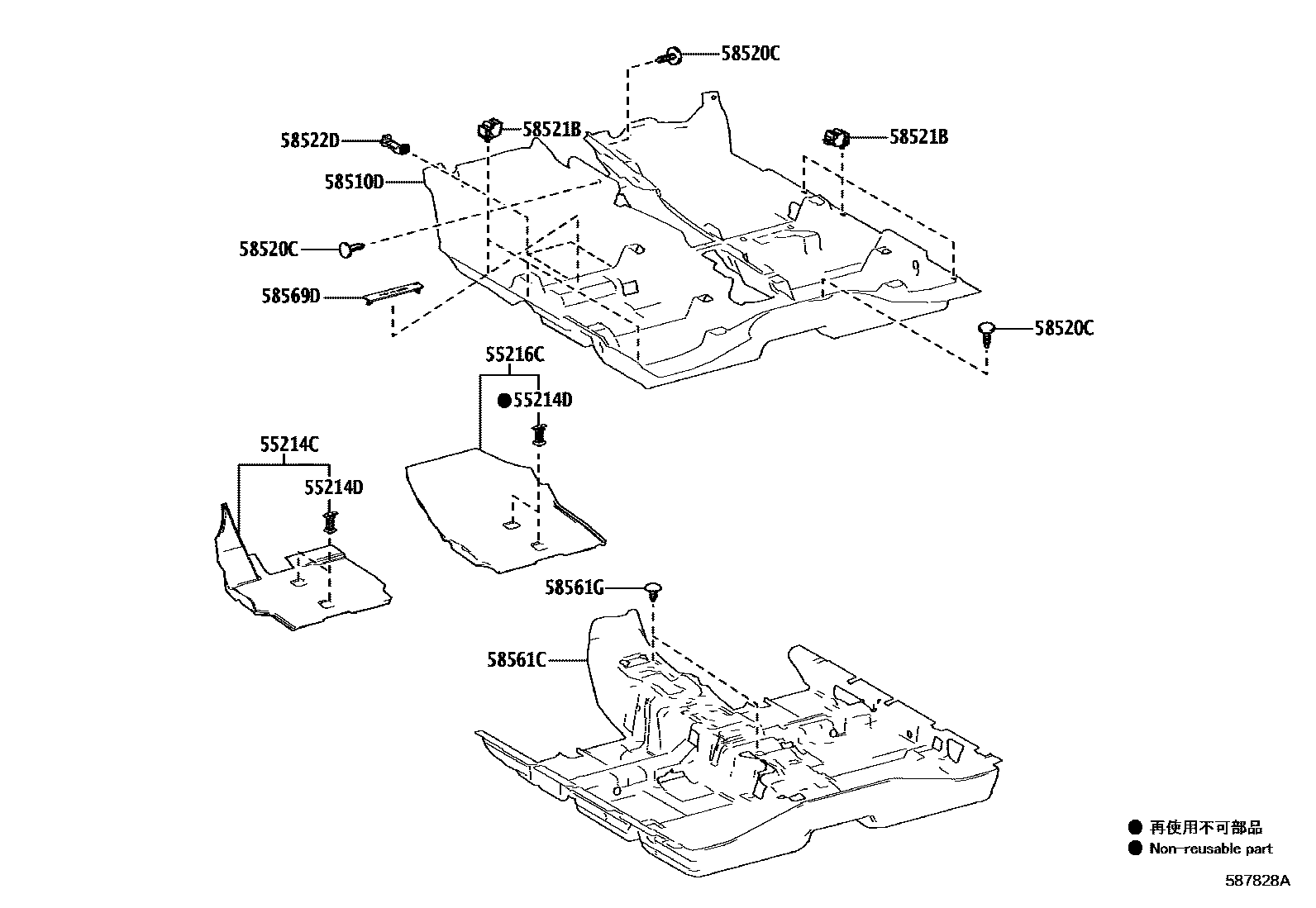

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
COLD AREA SPEC-WITH(EUROPE A RANK); COLD AREA SPEC-WITH(EUROPE S RANK)
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55216CPAD, DASH PANEL INSULATOR, NO.4
COLD AREA SPEC-WITH(EUROPE A RANK); COLD AREA SPEC-WITH(EUROPE S RANK)
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,6#,8#; BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM1#,2#,8#; BLACK,TRIM4#
BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM1#,2#,8#; BLACK,TRIM2#,4#
BLACK,TRIM2#; BLACK,TRIM2#,4#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM2#; BLACK,TRIM2#,4#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58561CSILENCER, FRONT FLOOR, NO.1
COLD AREA SPEC-WITH(EUROPE A RANK); COLD AREA SPEC-WITH(EUROPE S RANK)
COLD AREA SPEC-WITH(EUROPE A RANK); COLD AREA SPEC-WITH(EUROPE S RANK)
58561GCLIP(FOR FRONT FLOOR SILENCER)
BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM1#,2#,8#; BLACK,TRIM2#; BLACK,TRIM2#,4#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM1#,2#,6#,8#; BLACK,TRIM1#,2#,8#; BLACK,TRIM2#; BLACK,TRIM2#,4#
10 parts on this diagram · 6 diagrams in section
