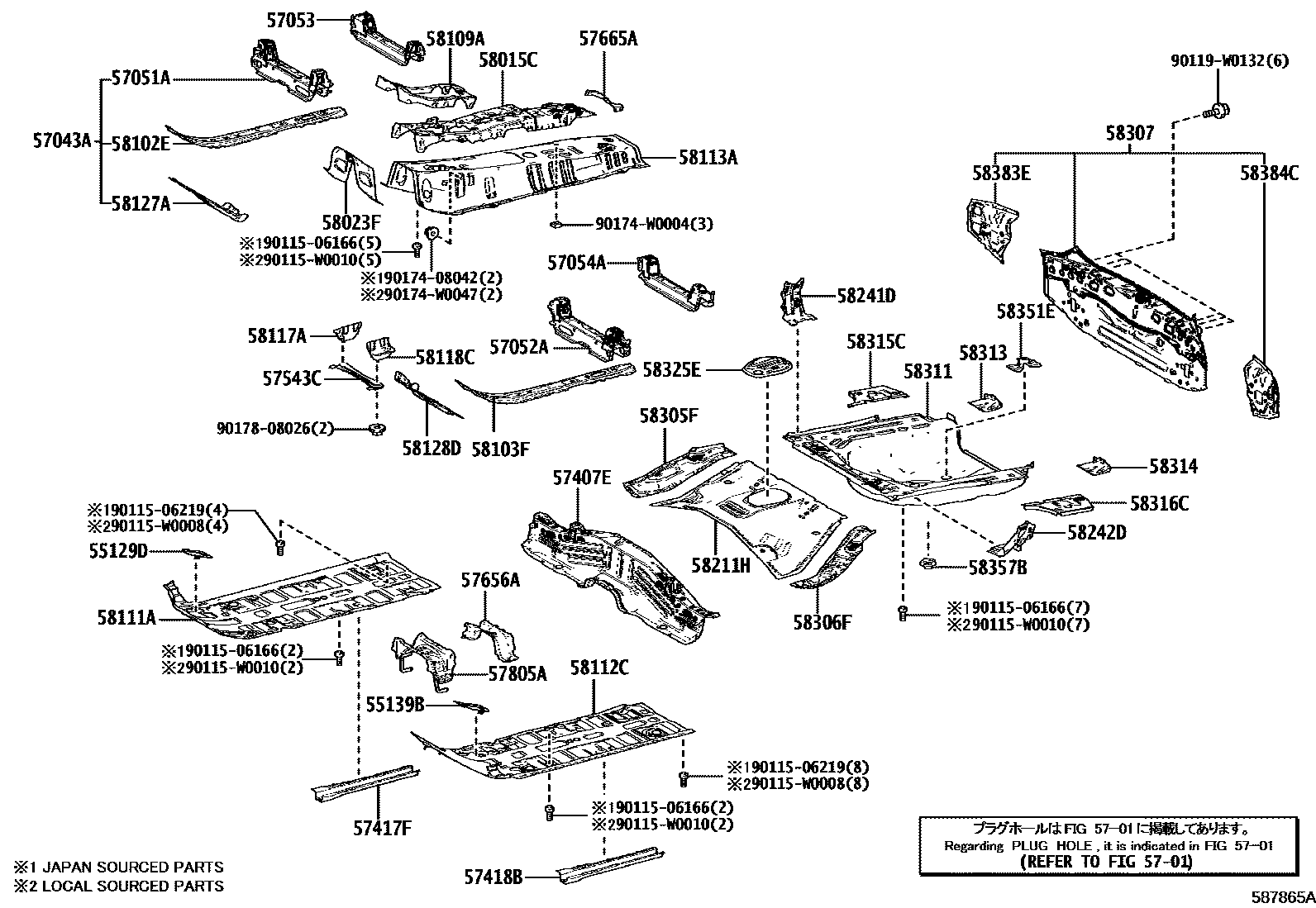

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

55129DCOVER, DASH PANEL HOLE, RH

main55129-K0010iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

55139BCOVER, DASH PANEL HOLE, LH

main55139-K0010iMXPB10..RHD..6F202107-202206

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-K2010iMXPB10..RHD..6F202107-202206

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-K0010iMXPB10..RHD..6F202107-202206

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-K0010iMXPB10..RHD..6F202107-202206

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-0D010iMXPB10..RHD..6F202107-202206

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-0D010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-K0010iMXPB10..RHD..6F202107-202206

main57407-K0020iMXPJ15..G;MXPJ15..LHD..N202404-202504

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-K0010iMXPB10..RHD..6F202107-202206

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-K0010iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

57543CBRACE, CENTER FLOOR, NO.1

main57543-K0010iMXPB10..RHD..6F202107-202206

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-0D150iMXPJ10..V202210-202404

main57656-K0010iMXPJ10,11,16..G,N,R202404

57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-K0010iMXPJ15..G;MXPJ15..LHD..N202404-202504

57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-K0010iMXPB10..RHD..6F202107-202206

58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING

main58015-K0030iMXPB10..RHD..6F202107-202206

58023FBRACKET SUB-ASSY, FLEXIBLE HOSE

main58023-K0010iMXPB10..RHD..6F202107-202206

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-K2010iMXPB10..RHD..6F202107-202206

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58103-K2010iMXPB10..RHD..6F202107-202206

58109ARETAINER SUB-ASSY, PARKING BRAKE

main58109-K2010iMXPB10..RHD..6F202107-202206

58111APAN, FRONT FLOOR, RH

main58111-K0010iMXPB10..RHD..6F202107-202206

58112CPAN, FRONT FLOOR, LH

main58112-K0010iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107

58113APANEL, FRONT FLOOR, CENTER

main58113-K0903iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-K0010iMXPB10..RHD..6F202107-202206

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-K0010iMXPB10..RHD..6F202107-202206

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-K0010iMXPB10..RHD..6F202107-202206

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-K0010iMXPB10..RHD..6F202107-202206

58211HPAN, CENTER FLOOR

main58211-K0010iMXPB10..CVT;MXPB10..LHD..6F202107

main58211-K0020iMXPJ15..G;MXPJ15..LHD..N202404-202504

58241DGUSSET, WHEELHOUSE INNER, FRONT RH

main58241-K2010iMXPB10..RHD..6F202107-202206

58242DGUSSET, WHEELHOUSE INNER, FRONT LH

main58242-K2010iMXPJ10,11202404

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-K0010iMXPB10..CVT;MXPB10..LHD..6F202107

main58305-K0020iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-K0010iMXPB10..RHD..6F202107-202206

main58306-K0020iMXPJ10,11,16202404

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D450iMXPB10..CVT;MXPB10..LHD..6F202107

main58307-0D670iMXPJ15..G;MXPJ15..LHD..N202404-202504

58311PAN, REAR FLOOR

main58311-0D290iMXPB10..CVT;MXPB10..LHD..6F202107

main58311-0D291iMXPJ10,11202410

main58311-52410iMXPJ16;MXPJ15..G;MXPJ15..LHD..N202404-202410

main58311-52411iMXPJ15..G;MXPJ15..LHD..N202410-202504

58313PANEL, REAR FLOOR SIDE, RH

main58313-K0010iMXPB10..RHD..6F202107-202206

58314PANEL, REAR FLOOR SIDE, LH

main58313-K0010iMXPB10..RHD..6F202107-202206

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-K2010iMXPJ15..G;MXPJ15..LHD..N202404-202504

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-K2010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-K0010iMXPB10..RHD..6F202107-202206

main58325-K0020iMXPJ10,11,16202404

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02020iMXPJ10,11202404

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-K2010iMXPB10..RHD..6F202107-202206

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-0D010iMXPB10..RHD..6F202107-202206

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-0D180iMXPB10..RHD..6F202107-202206

9011506166

main90115-06166

9011506219

main90115-06219

90115W0008

main90115-W0008

90115W0010

main90115-W0010

90119W0132

main90119-W0132

9017408042

main90174-08042

90174W0004

main90174-W0004

90174W0047

main90174-W0047

9017808026

main90178-08026

52 parts on this diagram · 3 diagrams in section
