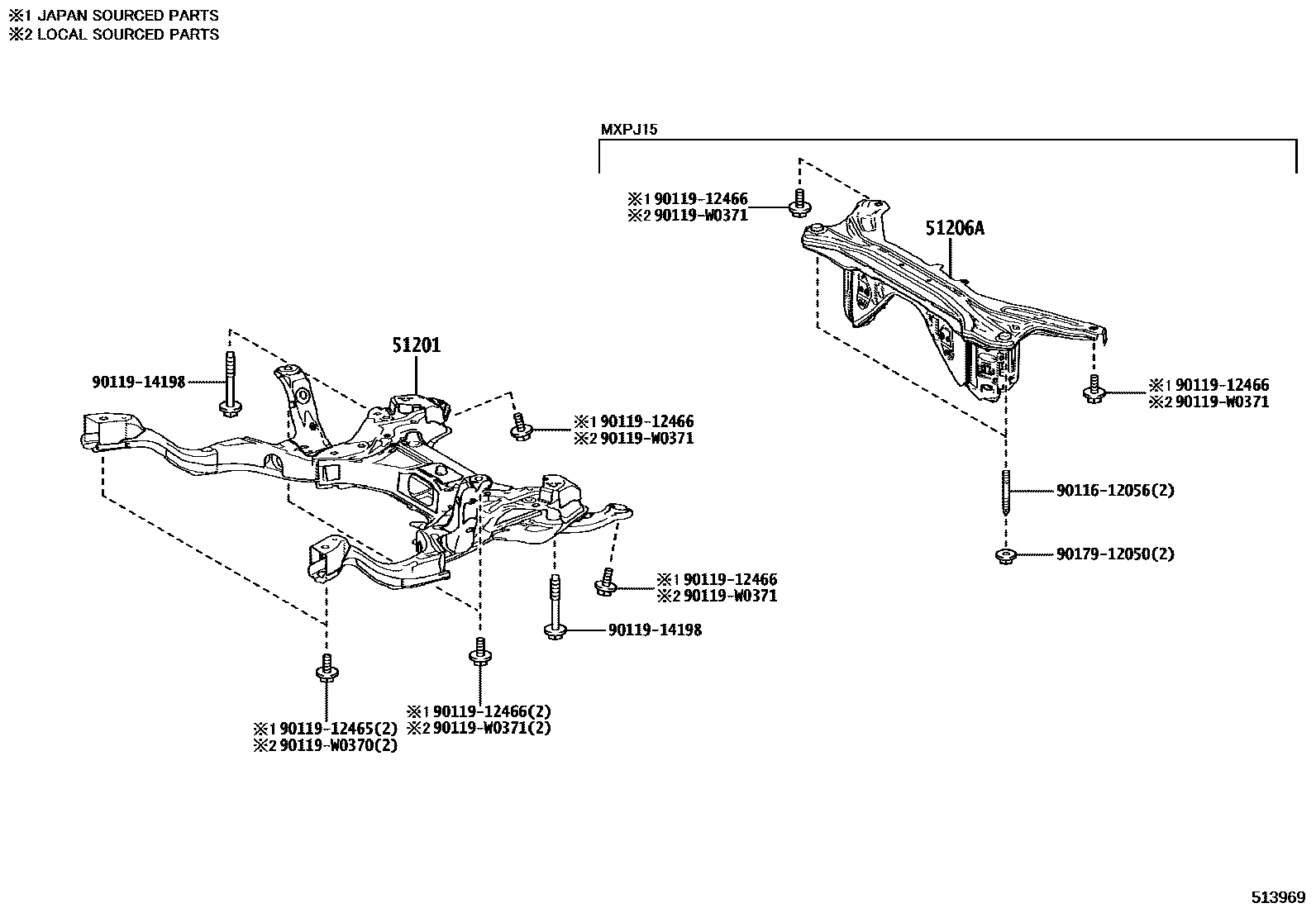

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER 0003 1FLOOR UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D270iMXPB10..LHD..6F;MXPB10,MXPJ10,15..CVT202107-202406

main51201-0D271iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F; MXPJ10,11,16202407

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-K0020iMXPJ15..G;MXPJ15..LHD..N202107-202404

9011612056

main90116-12056

9011912465

main90119-12465

9011912466

main90119-12466

9011914198

main90119-14198

90119W0370

main90119-W0370

90119W0371

main90119-W0371

9017912050

main90179-12050

9 parts on this diagram · 3 diagrams in section
