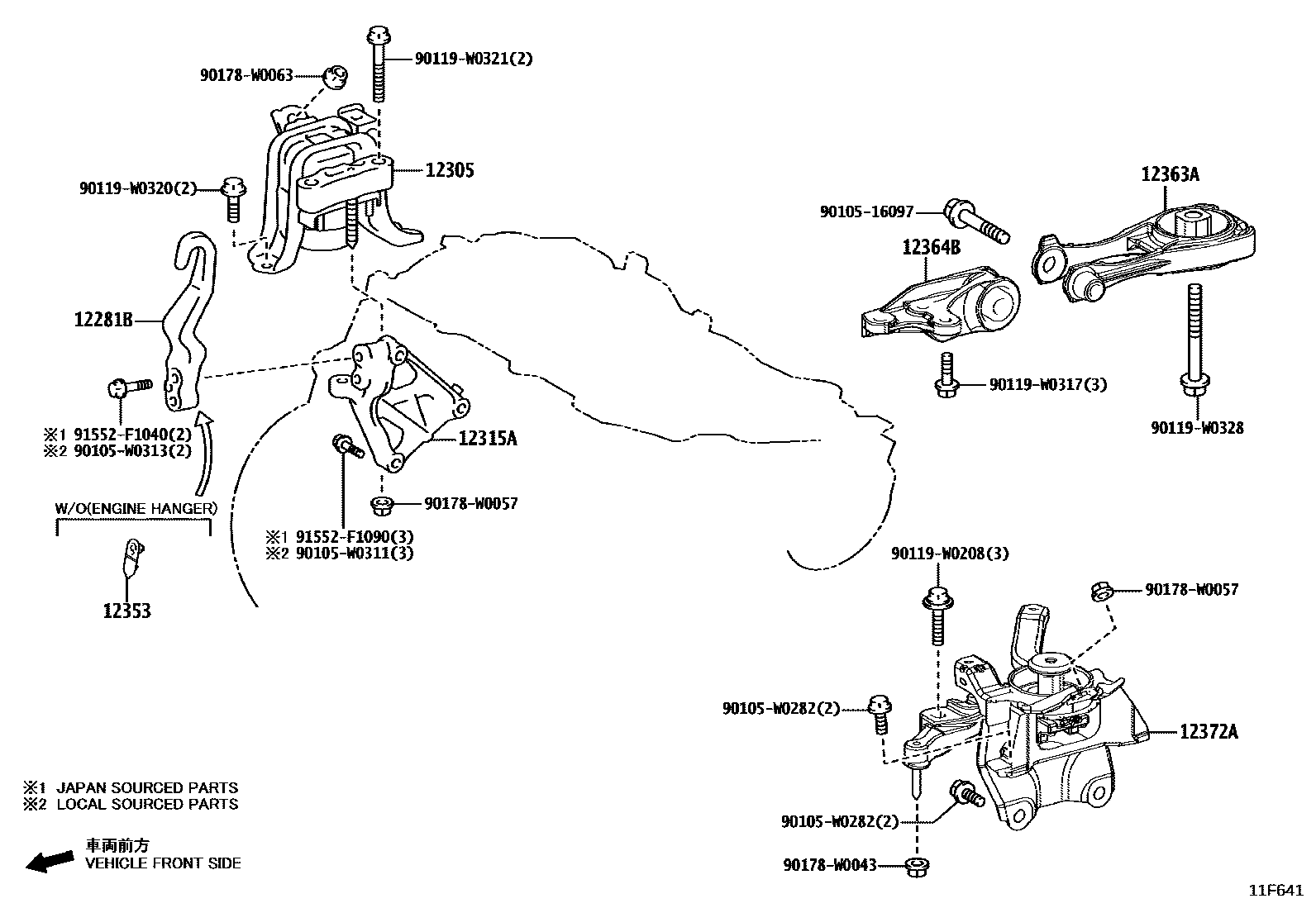

MOUNTING

0001 1 0002 1 0003 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM15AFKS..MXPB10;M15AFXE..MXPJ15..RHD..N; M15AFXE..MXPJ15..RHD..N202107

*616; *648

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-K0050iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202404

main12305-K0060iM15AFKS..MXPB10..RHD..6F202107-202206

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-15100iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202404-202504

*616

main12315-F3010iM15AFKS..MXPB10..RHD..6F202107-202206

main12315-F3020iM15AFXE..MXPJ10,11,16202404

*648

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iM15AFKS..MXPB10..CVT;M15AFXE..MXPJ15..RHD..N;M15AFKS..MXPB10..LHD..6F202107

12363AROD, ENGINE MOVING CONTROL

main12363-F3060iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202404-202504

main12363-F3070iM15AFXE..MXPJ11,16202404

main12363-K0060iM15AFKS..MXPB10..RHD..6F202107-202206

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-F3060iM15AFXE..MXPJ11,16202404

main12364-F3080iM15AFXE..MXPJ10202404

main12364-F3090iM15AFKS..MXPB10..RHD..6F202107-202206

main12364-F3100iM15AFKS..MXPB10..CVT202107

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15281iM15AFKS..MXPB10..CVT202107

main12372-F3050iM15AFKS..MXPB10..LHD..6F202107

main12372-F3080iM15AFXE..MXPJ11,16202404

main12372-K0060iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202404

9010516097

main90105-16097

90105W0282

main90105-W0282

90105W0311

main90105-W0311

90105W0313

main90105-W0313

90119W0208

main90119-W0208

90119W0317

main90119-W0317

90119W0320

main90119-W0320

90119W0321

main90119-W0321

90119W0328

main90119-W0328

90178W0043

main90178-W0043

90178W0057

main90178-W0057

90178W0063

main90178-W0063

91552F1040

main91552-F1040

91552F1090

main91552-F1090

21 parts on this diagram · 3 diagrams in section
