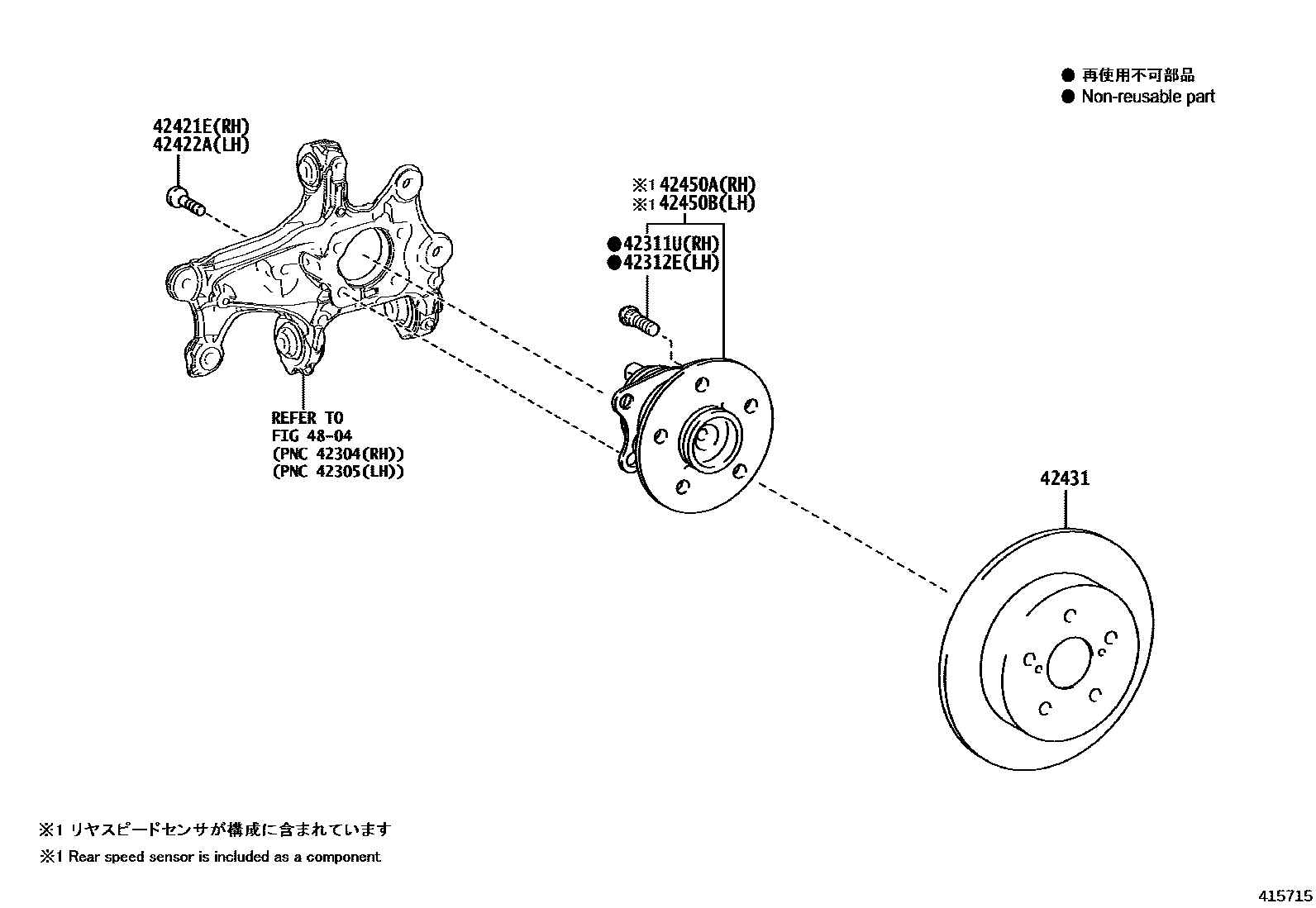

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iKMA10202004

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iKMA10202004

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12016×4iKMA10202004

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12016×4iKMA10202004

42431DISC, REAR

main42431-42080×2iKMA10202004

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-76050iKMA10202004

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-76050iKMA10202004

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 1 diagram in section
