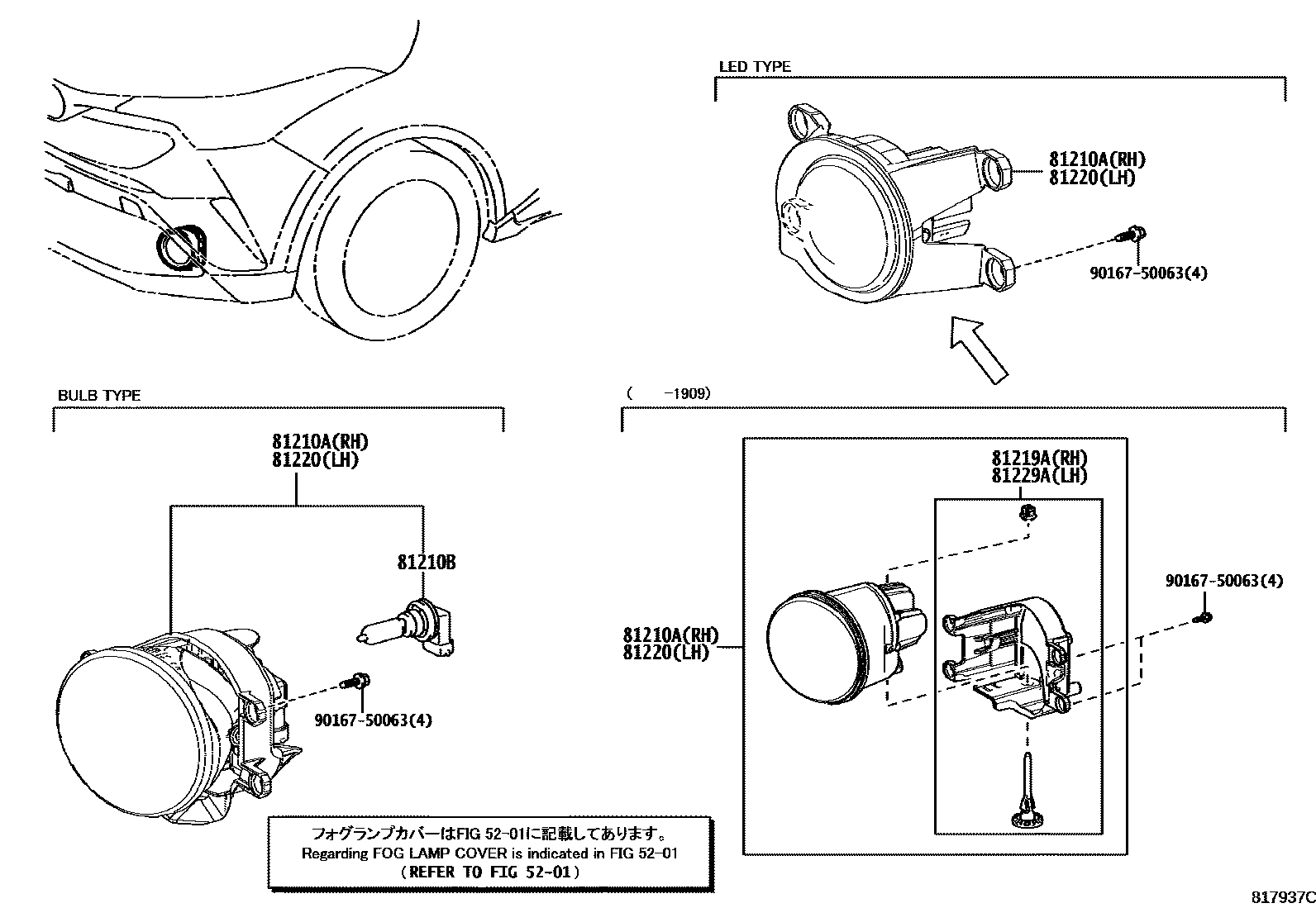

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-02110iNGX10..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..K; NGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201909

FRONT FOG LAMP-WITH(BULB TYPE)

main81210-02190supersedes 81210-02110iNGX10..(E,G)..RUS; NGX10..K..RUS201909-202112

HEADLAMP-PROJECTOR

main81210-48051iNGX10,50,ZYX10..LHD..N..EUR; NGX10,50,ZYX10..N..EUR201610-201805

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81210BBULB, FOG LAMP

main90981-WD016×2iNGX10..K..RUS; NGX10..N..RUS201909-202112

12V 19W; 12V 19W,FRONT FOG LAMP-WITH(BULB TYPE)

81219ABRACKET, FOG LAMP, RH

main81219-48051iNGX10,50,ZGX10,ZYX10..LHD..(E,G); NGX10,50,ZYX10..(E,G)..EUR201610-201909

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81220LAMP ASSY, FOG, LH

main81220-02110iNGX10..K..EUR;MAXH10,NGX50,ZGX10,ZYX1#..K; NGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201909

FRONT FOG LAMP-WITH(BULB TYPE)

main81220-02190supersedes 81220-02110iNGX10..(E,G)..RUS; NGX10..K..RUS201909-202112

HEADLAMP-PROJECTOR

main81220-48051iNGX10,50,ZYX10..LHD..N..EUR; NGX10,50,ZYX10..N..EUR201610-201805

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

81229ABRACKET, FOG LAMP, LH

main81229-48051iNGX10,50,ZGX10,ZYX10..LHD..(E,G); NGX10,50,ZYX10..(E,G)..EUR201610-201909

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

9016750063

main90167-50063

7 parts on this diagram · 2 diagrams in section
