HEATING & AIR CONDITIONING - COOLER UNIT

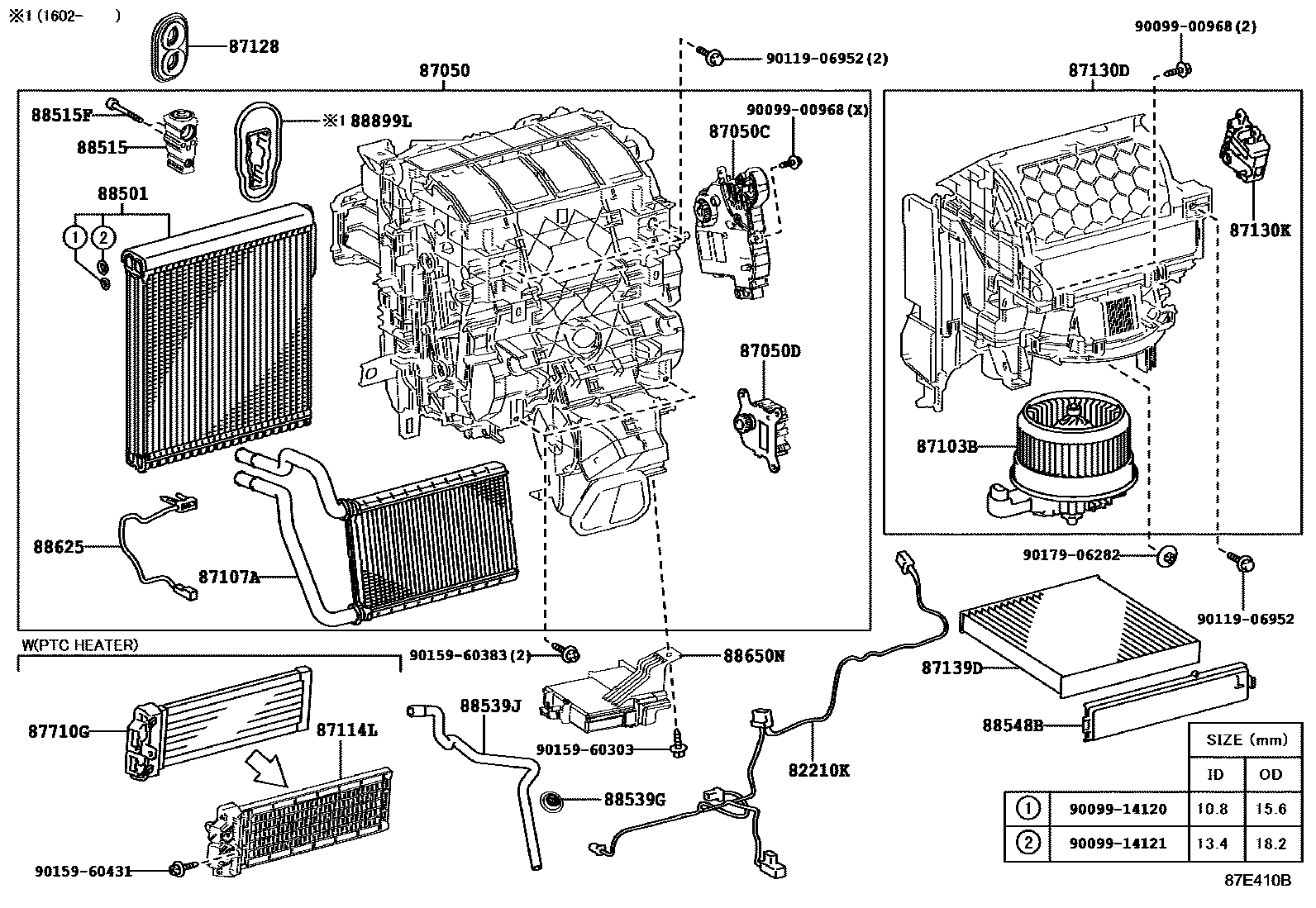

Parts diagram

82210KHARNESS ASSY, AIR CONDITIONER

main82212-48030i201407-201709

main82212-78010i201407-201709

main82212-78020i201709

main82212-78030i201709

87050RADIATOR ASSY, AIR CONDITIONER

main87050-78010i201407-201709

main87050-78020i201407-201709

main87050-78031supersedes 87050-78090i201410-201709

main87050-78032i201709-202109

main87050-78070i201412-201709

main87050-78040i201709-202109

AZERBAIJAN, ARMENIA, GEORGIA SPEC; BELARUS, KAZAKHSTAN SPEC; CHILE SPEC; MACEDONIA SPEC; PERU SPEC; RUSSIA SPEC; TAIWAN SPEC; UKRAINE SPEC

main87050-78090i201709-201908

TAIWAN SPEC

main87050-78100i201709-202109

AZERBAIJAN, ARMENIA, GEORGIA SPEC; BELARUS, KAZAKHSTAN SPEC; CHILE SPEC; MACEDONIA SPEC; PERU SPEC; RUSSIA SPEC; UKRAINE SPEC; VIETNAM SPEC

main87050-78120i201609-201709

INDIA SPEC

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170i201407-201709

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48180i201407-201709

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-48160i201407-201709

main87103-78010i201407-201709

main87103-78020i201709

main87103-78030i201709

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48110i201407-201709

main87107-78010i201407-201709

87114LCOVER, HEATER, NO.2

main87114-48110i201412-201709

87128GROMMET, HEATER

main87128-76010i201407-201709

87130DBLOWER ASSY

main87130-48310i201407-201709

main87130-78010i201407-201709

main87130-78020i201709

main87130-78030i201709

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28240i201709

main87106-48190i201407-201709

87139DELEMENT, AIR REFINER

main87139-50100i201407-201709

87710GQUICK HEATER ASSY

main87710-48020i201407-201709

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48340i201709-202109

main88501-78030supersedes 88501-78040i201410-201709

main88501-78040i201412-201709

TAIWAN SPEC

main88501-78060i201709-202109

main88501-78050i201709-202109

AZERBAIJAN, ARMENIA, GEORGIA SPEC; BELARUS, KAZAKHSTAN SPEC; CHILE SPEC; MACEDONIA SPEC; PERU SPEC; RUSSIA SPEC; UKRAINE SPEC; VIETNAM SPEC

88515VALVE, COOLER EXPANSION

main88515-48120i201410-201709

main88515-78010i201407-201709

main88515-48110i201407-201509

BELARUS SPEC; KAZAKHSTAN SPEC

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2i201709

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030i201407-201709

88539JHOSE, DRAIN COOLER

main88539-78010i201709

main88539-78020i201407-201709

88548BCASE, AIR FILTER

main88548-42010i201407-201709

main88548-42020i201407-201709

88625THERMISTOR, COOLER, NO.1

main88620-28050i201407-201709

main88620-28060i201410-201709

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-78010i201410-201509

main88650-78030i201412-201509

main88650-78040i201407-201509

main88650-78130i201509-201709

AZERBAIJAN,ARMENIA,GEORGIA SPEC; CHILE SPEC; MONTENEGRO SPEC; PERU SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; UKRAINE SPEC; VIETNAM SPEC

main88650-78150i201509-201709

main88650-78160i201509-201709

main88650-78210i201709-202007

main88650-78230i202007

main88650-78020i201407-201509

AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; UKRAINE SPEC

main88650-78140i201509-201709

AZERBAIJAN,ARMENIA,GEORGIA SPEC; CHILE SPEC; MONTENEGRO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; UKRAINE SPEC

main88650-78200i201709

AZERBAIJAN, ARMENIA, GEORGIA SPEC; AZERBAIJAN, ARMENIA, GEORGIA SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER); BELARUS, KAZAKHSTAN SPEC; BELARUS, KAZAKHSTAN SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER); CHILE SPEC; MACEDONIA SPEC; PERU SPEC; RUSSIA SPEC; UKRAINE SPEC; UKRAINE SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER); VIETNAM SPEC

main88650-78240i201709

AZERBAIJAN, ARMENIA, GEORGIA SPEC; BELARUS, KAZAKHSTAN SPEC; CHILE SPEC; INDIA SPEC; MACEDONIA SPEC; PERU SPEC; RUSSIA SPEC; TAIWAN SPEC; UKRAINE SPEC

main88650-78250supersedes 88650-78170i201709

RUSSIA SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER); WINDSHIELD DEICER-WITH(WIPER DEICER)

main88650-78260i201709

RUSSIA SPEC&WINDSHIELD DEICER-WITH(WIPER DEICER)

88899LPARTS, COOLING UNIT

main88899-78020i201709

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

29 parts on this diagram · 2 diagrams in section
