WIRELESS DOOR LOCK

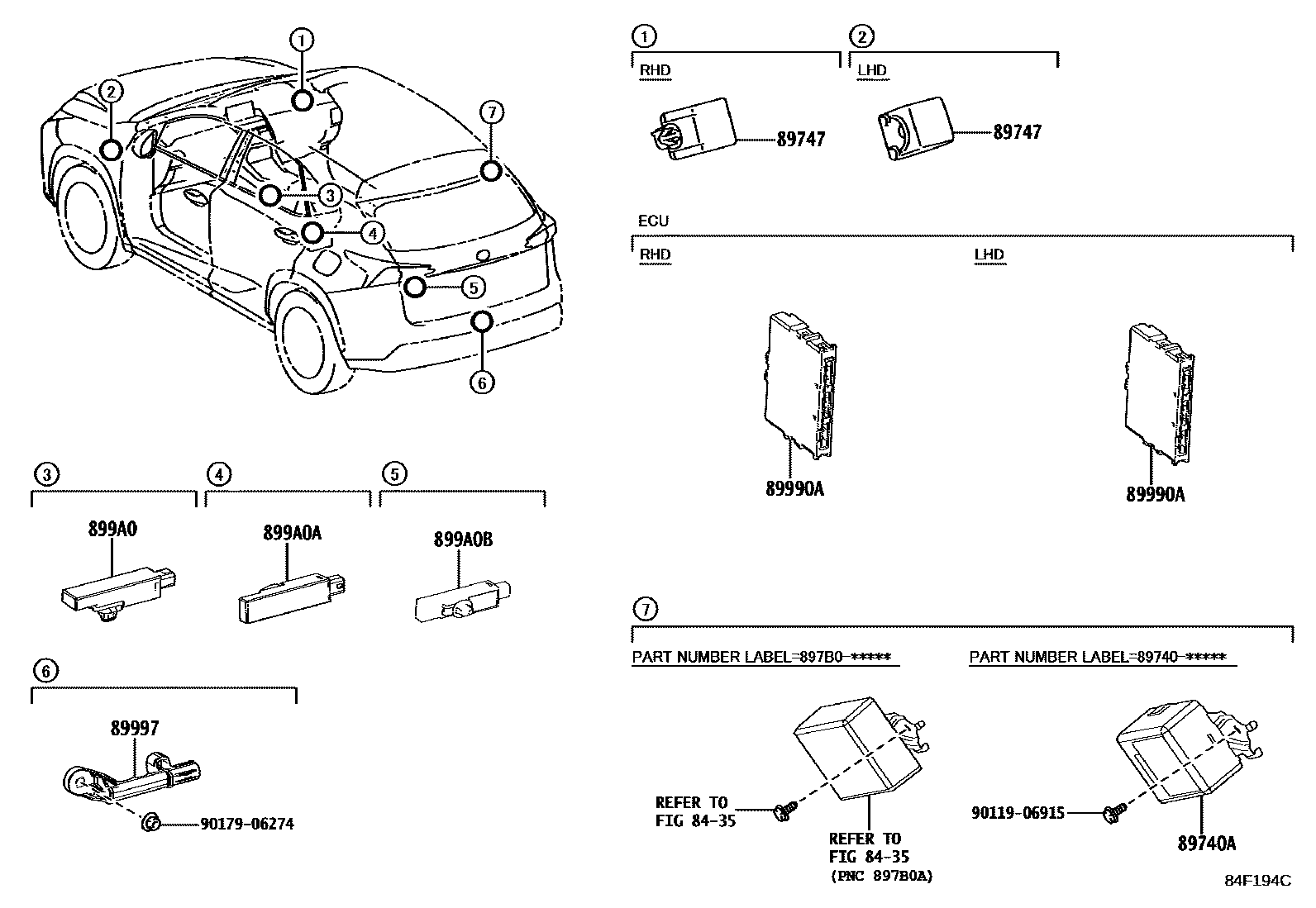

Parts diagram

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-78010i201407-201509

AZERBAIJAN,ARMENIA,GEORGIA SPEC&SPARE TIRE-GROUND TIRE; BELARUS SPEC&SPARE TIRE-GROUND TIRE; KAZAKHSTAN SPEC&SPARE TIRE-TEMPORARY(T165/80D17)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201709

89990ACOMPUTER ASSY, SMART KEY

main89990-78010supersedes 89990-78020i201410-201509

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON)

main89990-78040i201407-201509

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78070i201509-201709

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78090i201509-201709

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78150i201709-201806

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78151supersedes 89990-78160i201807-201905

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78170i201709-201804

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78171i201805-201806

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78172supersedes 89990-78180i201807-201905

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78190i201905-202007

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78210supersedes 89990-78220i201905-202007

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78230supersedes 89990-78240i202007

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78250supersedes 89990-78260i202007-202107

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

main89990-78251i202108

SMART ENTRY-2 BUTTON TYPE; SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); SMART ENTRY-4 BUTTON TYPE

89997ANTENNA, ELECTRICAL KEY

main89997-30100i201810

AZERBAIJAN, ARMENIA, GEORGIA SPEC&SMART ENTRY-2 BUTTON TYPE; AZERBAIJAN, ARMENIA, GEORGIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); BELARUS, KAZAKHSTAN SPEC&SMART ENTRY-2 BUTTON TYPE; BELARUS, KAZAKHSTAN SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); CHILE SPEC&SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); CHILE SPEC&SMART ENTRY-4 BUTTON TYPE; PERU SPEC&SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); PERU SPEC&SMART ENTRY-4 BUTTON TYPE; RUSSIA SPEC&SMART ENTRY-2 BUTTON TYPE; RUSSIA SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); TAIWAN SPEC&SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); TAIWAN SPEC&SMART ENTRY-4 BUTTON TYPE; UKRAINE SPEC&SMART ENTRY-2 BUTTON TYPE; UKRAINE SPEC&SMART ENTRY-3 BUTTON TYPE(POWER BACK DOOR BUTTON); VIETNAM SPEC&SMART ENTRY-3 BUTTON TYPE(PANIC BUTTON); VIETNAM SPEC&SMART ENTRY-4 BUTTON TYPE

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010i201407-201709

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010i201407-201709

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010i201407-201709

9011906915

main90119-06915

9017906274

main90179-06274

10 parts on this diagram · 1 diagram in section
