Toyota 242210 — REAR MOULDING

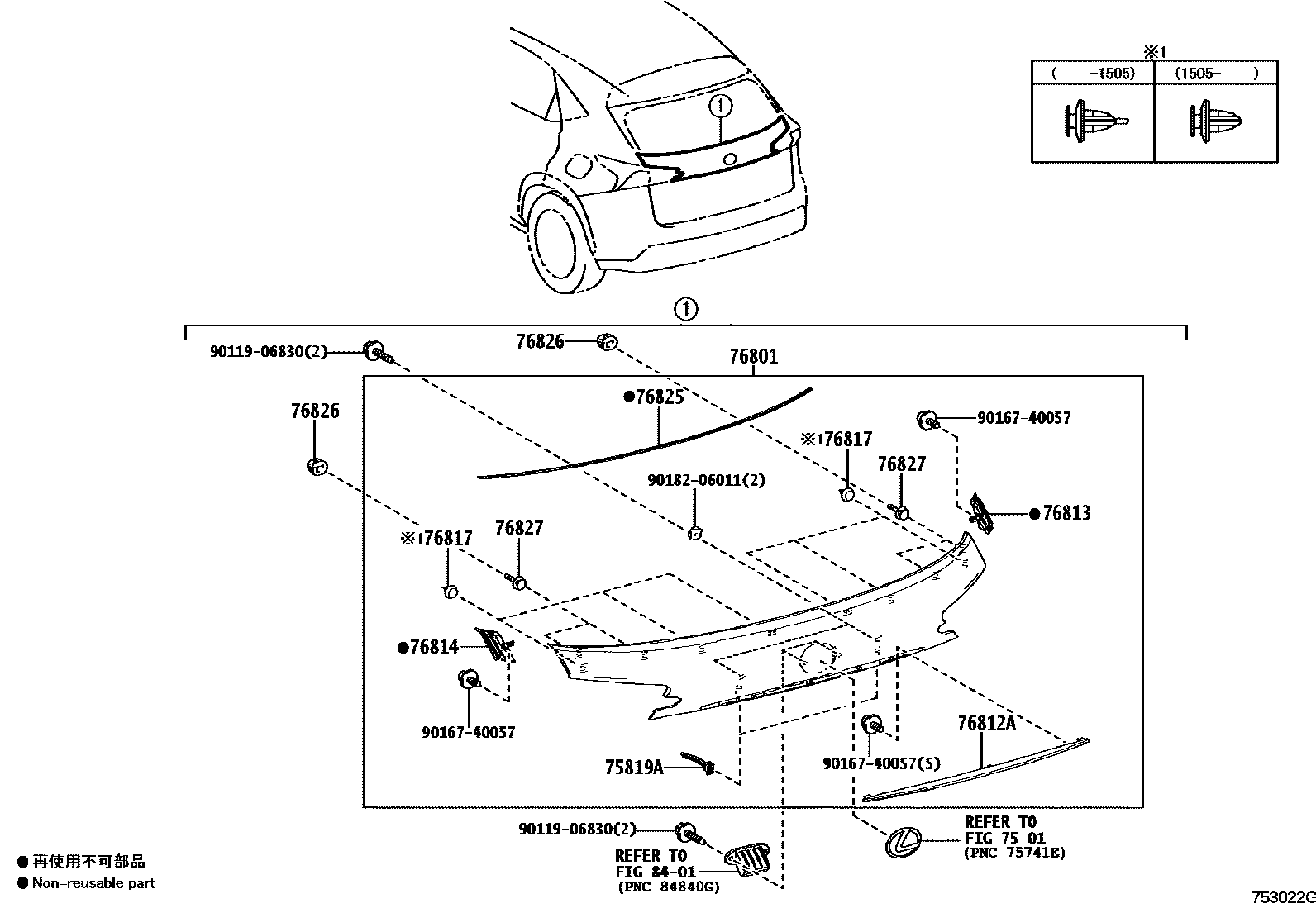

Parts diagram

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75819ACLIP, BACK DOOR MOULDING

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

76813GARNISH, BACK DOOR OUTSIDE, UPPER RH

76814GARNISH, BACK DOOR OUTSIDE, UPPER LH

76817CLIP, BACK DOOR OUTSIDE GARNISH

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

76826RETAINER, BACK DOOR GARNISH, NO.1

76827RETAINER, BACK DOOR GARNISH, NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906830

9016740057

9018206011

14 parts on this diagram · 2 diagrams in section

REAR MOULDING for Toyota 242210

This section contains 17 genuine Toyota parts for the REAR MOULDING system of the Toyota 242210. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), CLIP, BACK DOOR MOULDING, NO.1, CLIP, BACK DOOR MOULDING, GARNISH SUB-ASSY, BACK DOOR, OUTSIDE, GARNISH, BACK DOOR, OUTSIDE NO.2.
