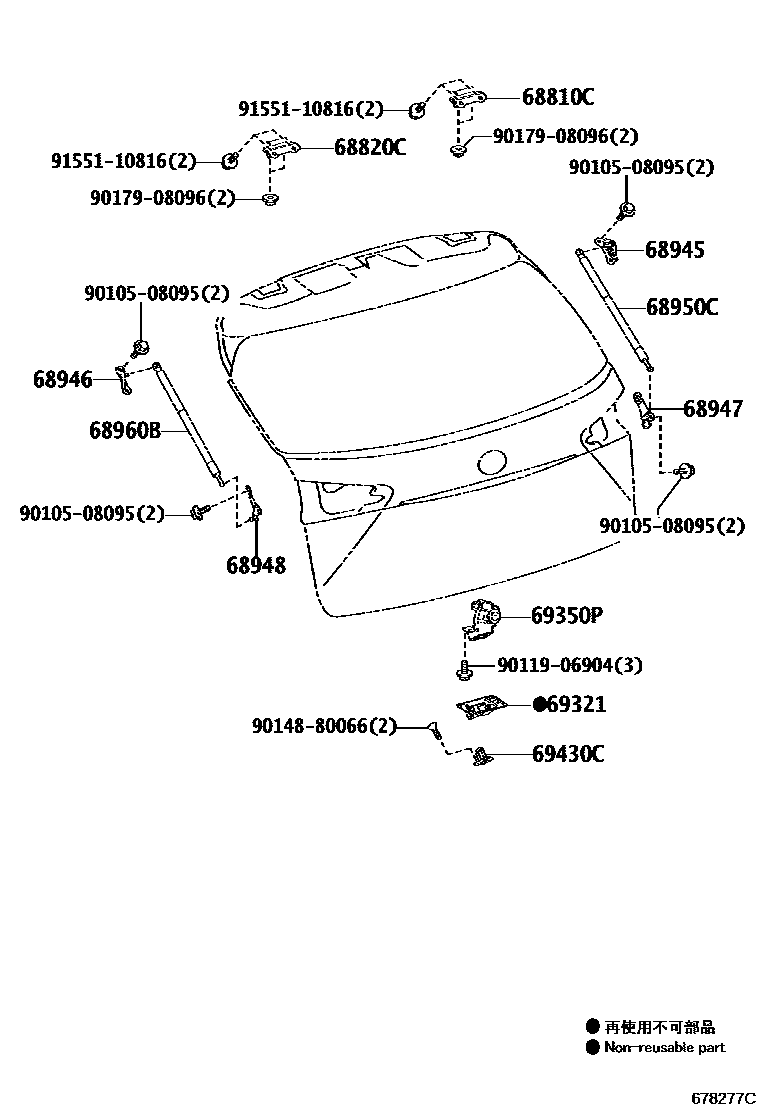

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 10SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 14SPEAKER
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 10SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 14SPEAKER
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 10SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 14SPEAKER
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; AZERBAIJAN, ARMENIA, GEORGIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY); AZERBAIJAN, ARMENIA, GEORGIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; AZERBAIJAN, ARMENIA, GEORGIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY); AZERBAIJAN, ARMENIA, GEORGIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; AZERBAIJAN, ARMENIA, GEORGIA SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&AUTO &EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; AZERBAIJAN, ARMENIA, GEORGIA SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&AUTO &EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCHDISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; AZERBAIJAN, ARMENIA, GEORGIA SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC)&AUTO &EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY); AZERBAIJAN, ARMENIA, GEORGIA SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC)&AUTO &EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY); STEERING COLUMN-POWER(TILT & TELESCOPIC)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; STEERING COLUMN-POWER(TILT & TELESCOPIC)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; TAIWAN SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; TAIWAN SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT
68950CSTAY ASSY, BACK DOOR, RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 10SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 14SPEAKER
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 10SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 14SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITH(SD NAVIGATION)
AUDIO-EMVN & 10SPEAKER
AZERBAIJAN, ARMENIA, GEORGIA SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; TAIWAN SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; UKRAINE SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT
68960BSTAY ASSY, BACK DOOR, LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 10SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 14SPEAKER
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 10SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&AUDIO-EMVN & 14SPEAKER; AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&NAVIGATION SYSTEM-WITH(SD NAVIGATION)
AUDIO-EMVN & 10SPEAKER
AUDIO-EMVN & 10SPEAKER; AUDIO-EMVN & 14SPEAKER; AZERBAIJAN, ARMENIA, GEORGIA SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITHOUT & WITH(10.3INCH DISPLAY)&DATA COMMUNICATION MODULE-WITHOUT; STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)
69321COVER, BACK DOOR LOCK
INDIA SPEC; INDIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); ENGLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); ESTONIA,LATVIA,LITHUANIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); IRELAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); NORWAY,SWEDEN,FINLAND,DENMARK SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); RUSSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
INDIA SPEC; INDIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AZERBAIJAN, ARMENIA, GEORGIA SPEC; TAIWAN SPEC; UKRAINE SPEC
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); AZERBAIJAN, ARMENIA, GEORGIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); AZERBAIJAN, ARMENIA, GEORGIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); TAIWAN SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); TAIWAN SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); UKRAINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); UKRAINE SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
main69350-48090iAGZ1#,AYZ1#..LHD; AGZ1#,AYZ1#..LHD..L; AGZ15,AYZ15..LHD; AYZ1#..RHD; ZGZ1#201709-201905
BELARUS, KAZAKHSTAN SPEC; ENGLAND SPEC; ESTONIA, LATVIA, LITHUANIA SPEC; IRELAND SPEC; NORWAY, SWEDEN, FINLAND, DENMARK SPEC; RUSSIA SPEC
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); BELARUS, KAZAKHSTAN SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); BELARUS, KAZAKHSTAN SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); ENGLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); ENGLAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); IRELAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); IRELAND SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); NORWAY, SWEDEN, FINLAND, DENMARK SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR& KICK OPEN); NORWAY, SWEDEN, FINLAND, DENMARK SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR); RUSSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN); RUSSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
69430CSTRIKER ASSY, BACK DOOR LOCK
9010508095
main90105-08095
9011906904
main90119-06904
9014880066
main90148-80066
9017908096
main90179-08096
9155110816
main91551-10816
16 parts on this diagram · 2 diagrams in section
