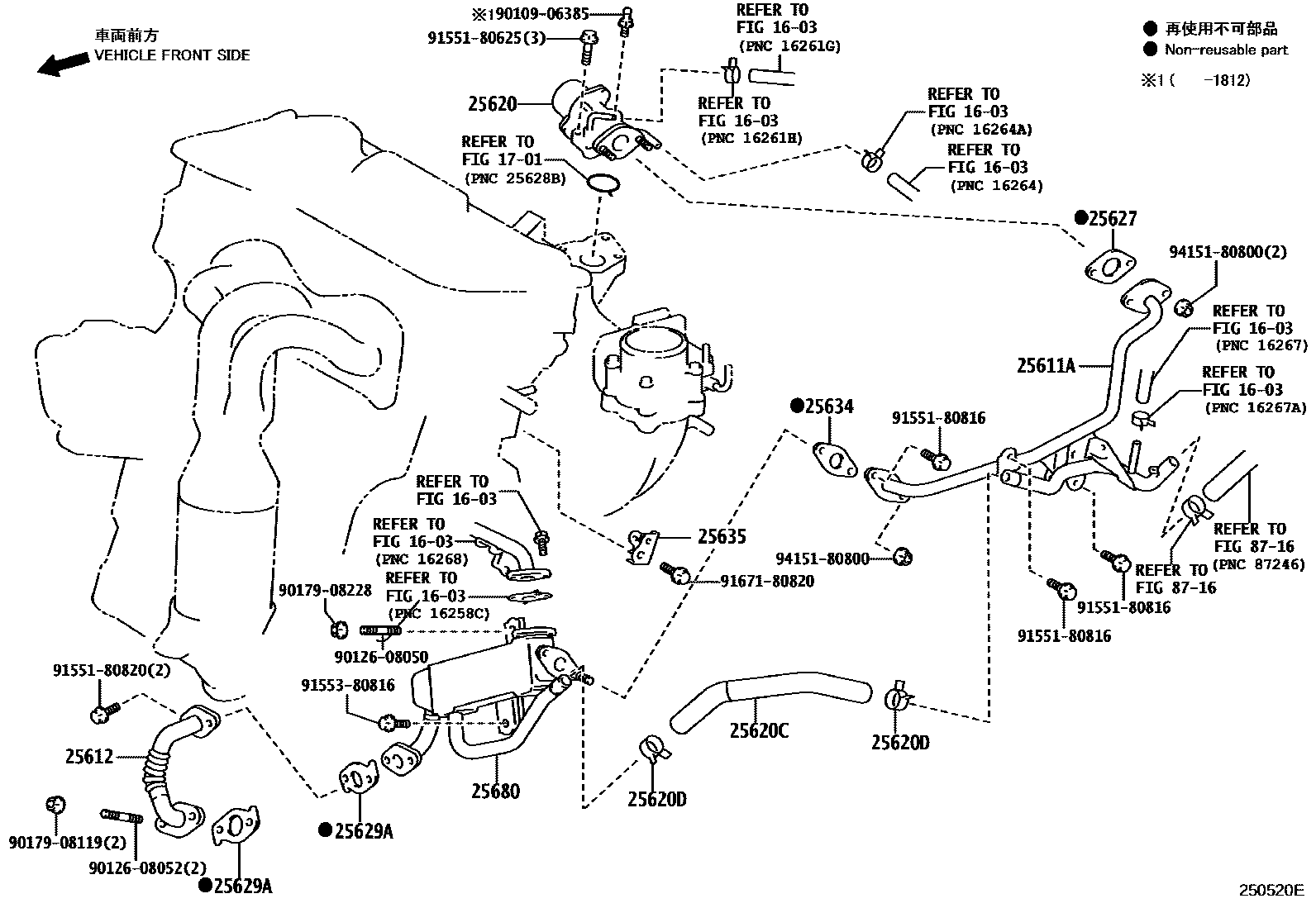

EXHAUST GAS RECIRCULATION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
25611APIPE, EGR, NO.1
main25611-36011i2ARFXE..AYZ1#; 2ARFXE..AYZ1#..LHD..L; 2ARFXE..AYZ1#..RHD..L; 2ARFXE..AYZ15..LHD201407-201709
AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; INDIA SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; MOROCCO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; VIETNAM SPEC
25612PIPE, EGR, NO.2
main25612-36010i2ARFXE..AYZ1#; 2ARFXE..AYZ1#..LHD..L; 2ARFXE..AYZ1#..RHD..L; 2ARFXE..AYZ15..LHD201407-201709
AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; INDIA SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; MOROCCO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; VIETNAM SPEC
25620VALVE ASSY, EGR
main25620-36060i2ARFXE..AYZ1#; 2ARFXE..AYZ1#..LHD..L; 2ARFXE..AYZ1#..RHD..L; 2ARFXE..AYZ15..LHD201407-201709
AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; INDIA SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; MOROCCO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; VIETNAM SPEC
25620CHOSE, WATER BY-PASS, NO.1
25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)
25627GASKET, EGR VALVE
main25627-36010i2ARFXE..AYZ1#; 2ARFXE..AYZ1#..LHD..L; 2ARFXE..AYZ1#..RHD..L; 2ARFXE..AYZ15..LHD201407-201709
AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; INDIA SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; MOROCCO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; VIETNAM SPEC
25629AGASKET, EGR PIPE, NO.2
main25629-36010×2i2ARFXE..AYZ1#; 2ARFXE..AYZ1#..LHD..L; 2ARFXE..AYZ1#..RHD..L; 2ARFXE..AYZ15..LHD201407-201709
AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; INDIA SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; MOROCCO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; VIETNAM SPEC
BELARUS, KAZAKHSTAN SPEC
25634GASKET, EGR PIPE
main25634-36010i2ARFXE..AYZ1#; 2ARFXE..AYZ1#..LHD..L; 2ARFXE..AYZ1#..RHD..L; 2ARFXE..AYZ15..LHD201407-201709
AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; INDIA SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; MOROCCO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; VIETNAM SPEC
25635BRACKET, EGR PIPE, NO.1
25680COOLER ASSY, EGR
main25680-36012i2ARFXE..AYZ1#; 2ARFXE..AYZ1#..LHD..L; 2ARFXE..AYZ1#..RHD..L; 2ARFXE..AYZ15..LHD201407-201709
AZERBAIJAN,ARMENIA,GEORGIA SPEC; BELARUS SPEC; CHILE SPEC; INDIA SPEC; KAZAKHSTAN SPEC; MONTENEGRO SPEC; MOROCCO SPEC; RUSSIA SPEC; SERBIA,MACEDONIA,BOSNIA SPEC; TAIWAN SPEC; VIETNAM SPEC
8716HEATING & AIR CONDITIONING - WATER PIPING
9010906385
main90109-06385
9012608050
main90126-08050
9012608052
main90126-08052
9017908119
main90179-08119
9017908228
main90179-08228
9155180625
main91551-80625
9155180816
main91551-80816
9155180820
main91551-80820
9155380816
main91553-80816
9167180820
main91671-80820
9415180800
main94151-80800
24 parts on this diagram · 1 diagram in section
