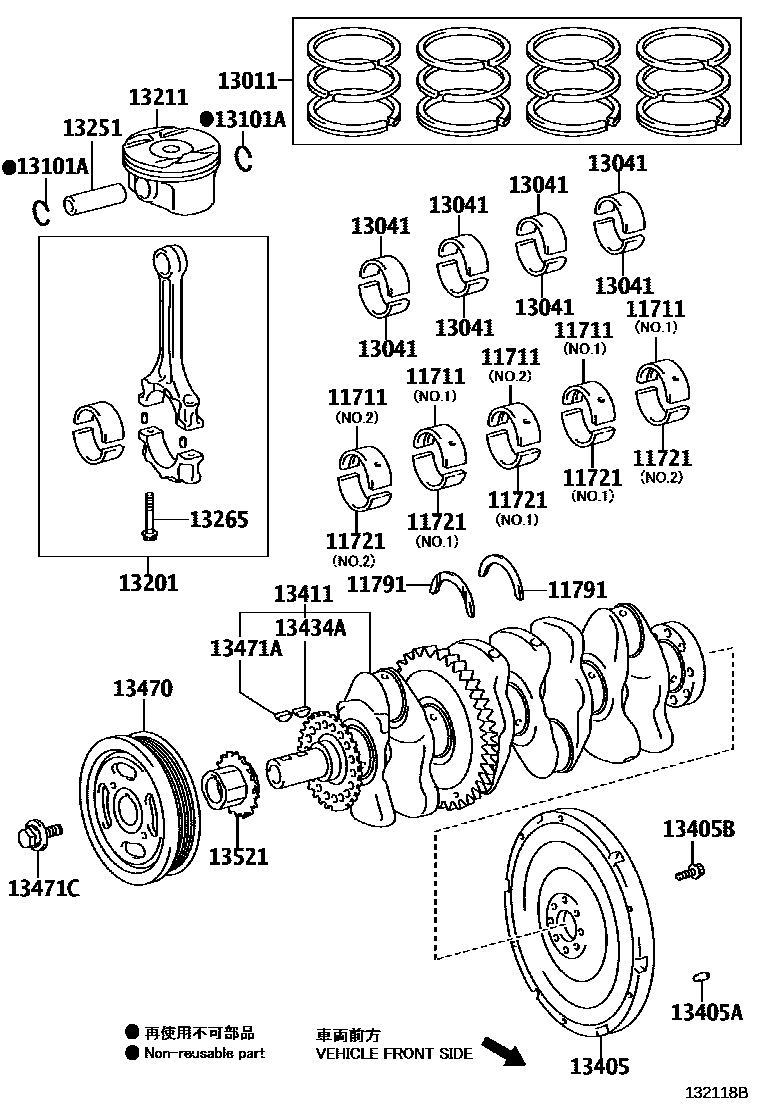

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,NO.1
STD
STD
STD,NO.2
13011RING SET, PISTON
STD
STD
STD
STD
STD,PNC 13101=MARK S
STD
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 1,NO.1,REFER R/M; MARK 1,REFER REPAIR MANUAL
MARK 2,NO.1,REFER R/M; MARK 2,REFER REPAIR MANUAL
MARK 3,NO.1,REFER R/M; MARK 3,REFER REPAIR MANUAL
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,MARK=S
STD,NO MARK
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13211PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
BULGARIA SPEC,MARK A,REFER REPAIR MANUAL; CZECH, HUNGARY, POLAND, SLOVAKIA SPEC,MARK A,REFER REPAIR MANUAL; DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ,MARK A,REFER REPAIR MANUAL; FRANCE SPEC,MARK A,REFER REPAIR MANUAL; ICELAND SPEC,MARK A,REFER REPAIR MANUAL; ISRAEL SPEC,MARK A,REFER REPAIR MANUAL; NORWAY, SWEDEN, FINLAND, DENMARK SPEC,MARK A,REFER REPAIR MANUAL; PORTUGAL, GREECE SPEC,MARK A,REFER REPAIR MANUAL; REUNION SPEC,MARK A,REFER REPAIR MANUAL; ROMANIA SPEC,MARK A,REFER REPAIR MANUAL; SLOVENIA, CROATIA SPEC,MARK A,REFER REPAIR MANUAL; TURKEY SPEC,MARK A,REFER REPAIR MANUAL
BULGARIA SPEC,MARK B,REFER REPAIR MANUAL; CZECH, HUNGARY, POLAND, SLOVAKIA SPEC,MARK B,REFER REPAIR MANUAL; DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ,MARK B,REFER REPAIR MANUAL; FRANCE SPEC,MARK B,REFER REPAIR MANUAL; ICELAND SPEC,MARK B,REFER REPAIR MANUAL; ISRAEL SPEC,MARK B,REFER REPAIR MANUAL; NORWAY, SWEDEN, FINLAND, DENMARK SPEC,MARK B,REFER REPAIR MANUAL; PORTUGAL, GREECE SPEC,MARK B,REFER REPAIR MANUAL; REUNION SPEC,MARK B,REFER REPAIR MANUAL; ROMANIA SPEC,MARK B,REFER REPAIR MANUAL; SLOVENIA, CROATIA SPEC,MARK B,REFER REPAIR MANUAL; TURKEY SPEC,MARK B,REFER REPAIR MANUAL
BULGARIA SPEC,MARK C,REFER REPAIR MANUAL; CZECH, HUNGARY, POLAND, SLOVAKIA SPEC,MARK C,REFER REPAIR MANUAL; DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ,MARK C,REFER REPAIR MANUAL; FRANCE SPEC,MARK C,REFER REPAIR MANUAL; ICELAND SPEC,MARK C,REFER REPAIR MANUAL; ISRAEL SPEC,MARK C,REFER REPAIR MANUAL; NORWAY, SWEDEN, FINLAND, DENMARK SPEC,MARK C,REFER REPAIR MANUAL; PORTUGAL, GREECE SPEC,MARK C,REFER REPAIR MANUAL; REUNION SPEC,MARK C,REFER REPAIR MANUAL; ROMANIA SPEC,MARK C,REFER REPAIR MANUAL; SLOVENIA, CROATIA SPEC,MARK C,REFER REPAIR MANUAL; TURKEY SPEC,MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13470PULLEY ASSY, CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
21 parts on this diagram · 3 diagrams in section
