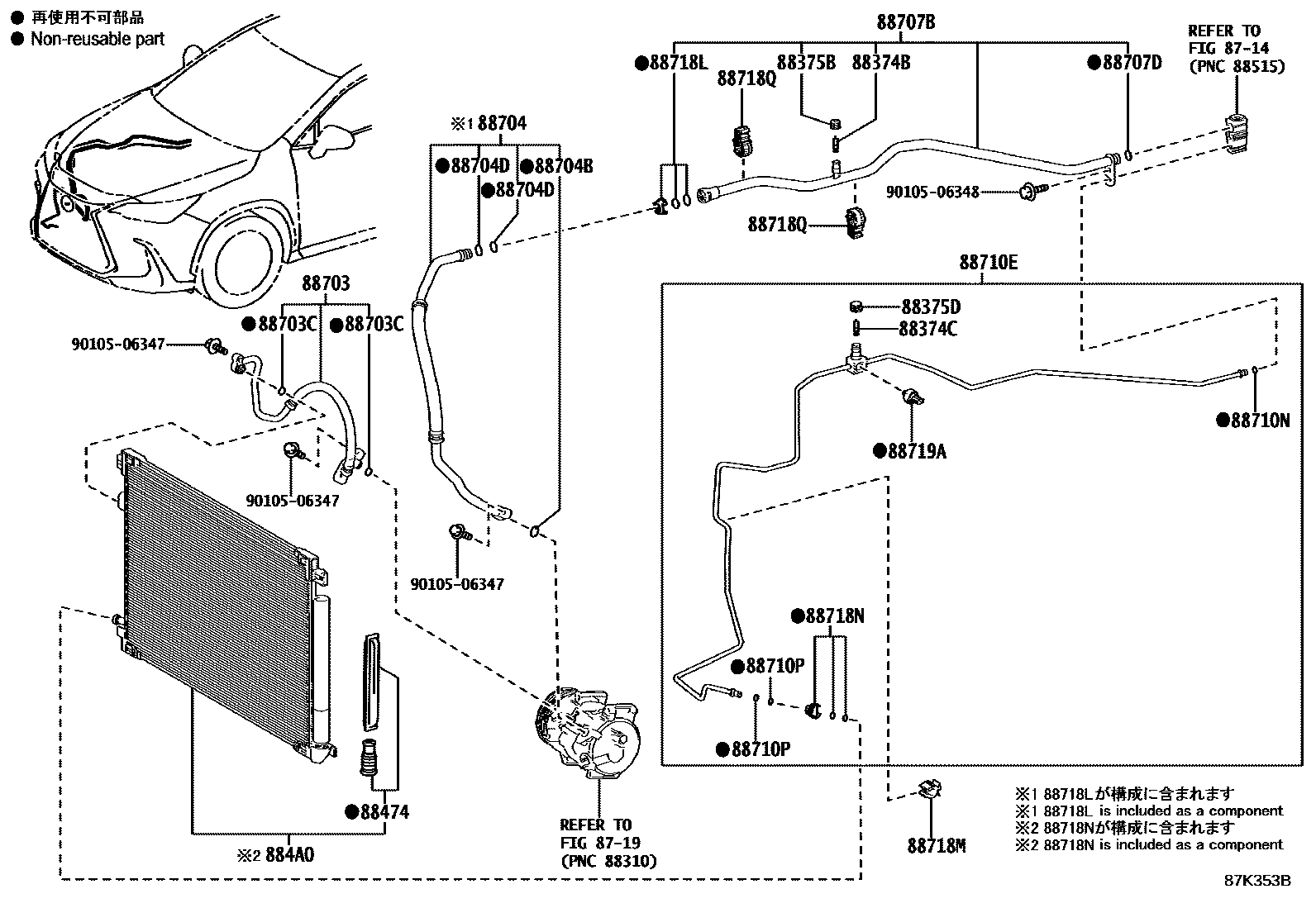

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
AZB,GRZ SPEC; CHILE SPEC; TAIWAN SPEC; UKRAINE SPEC
88375DCAP, SERVICE VALVE, NO.2
AZB,GRZ SPEC; CHILE SPEC; TAIWAN SPEC; UKRAINE SPEC
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
TOWING PACKAGE-1500KG
FINLAND SPEC; NORWAY SPEC; SWEDEN & BALTIC STATES SPEC
88703HOSE SUB-ASSY, DISCHARGE
TOWING PACKAGE-1500KG
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
TOWING PACKAGE-1500KG
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88704DRING, O, NO.2 (FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
AZB,GRZ SPEC&TOWING PACKAGE-1500KG; MOLDOVA SPEC&TOWING PACKAGE-1500KG; UKRAINE SPEC&TOWING PACKAGE-1500KG
TOWING PACKAGE-1500KG
TOWING PACKAGE-1500KG
AZB,GRZ SPEC; CHILE SPEC; MOLDOVA SPEC; MOROCCO SPEC; TAIWAN SPEC; UKRAINE SPEC; VIETNAM SPEC
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=13.4,OD=18.2
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88718MCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
9010506347
main90105-06347
9010506348
main90105-06348
