HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1HEATER ACCESSORY ASSY & BRACK0004 1HEATER ACCESSORY ASSY & BRACK0005 1 0006 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

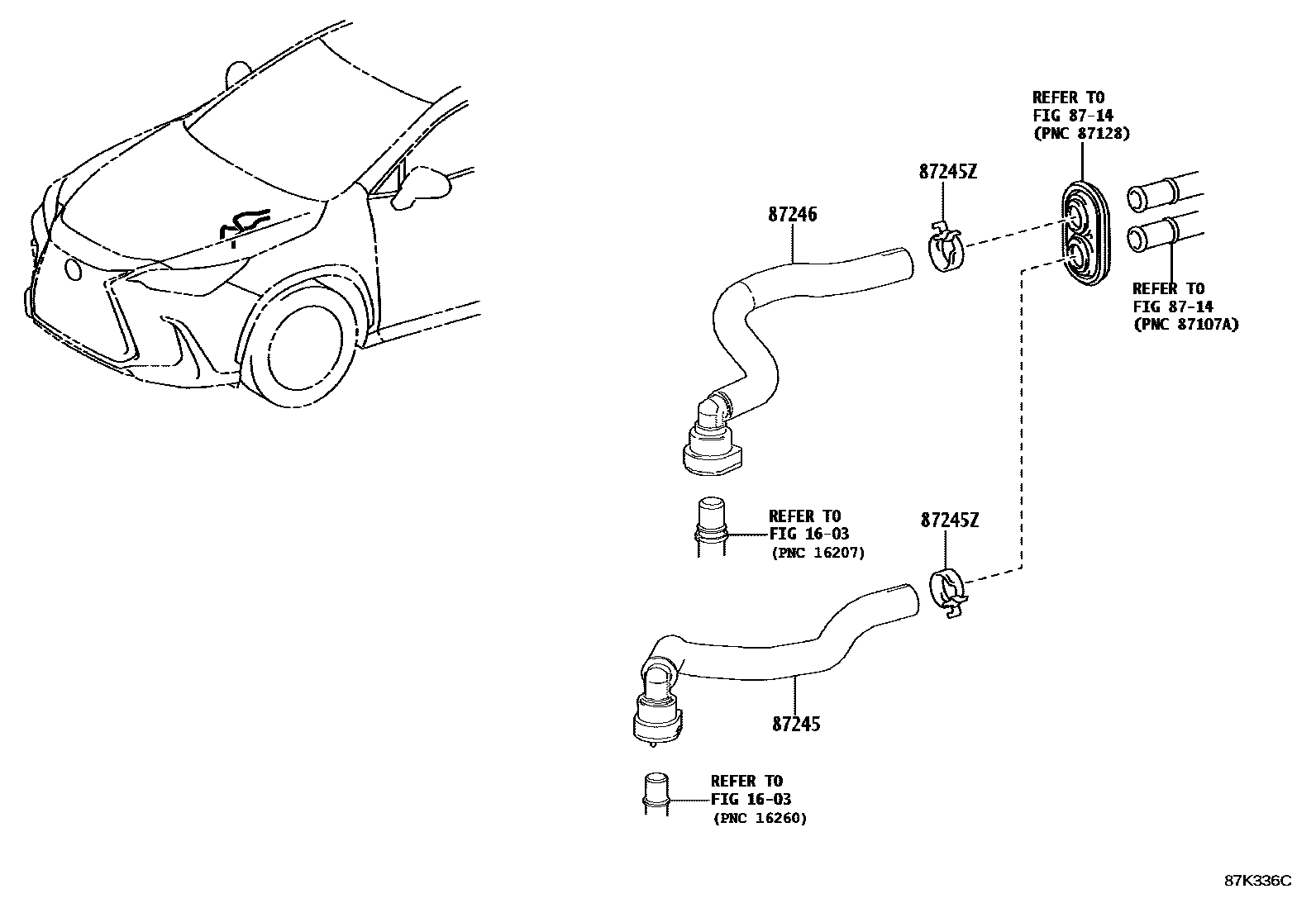

87245HOSE, HEATER WATER, INLET

main87209-42250iMAZA20202403

main87209-42290iAAZH20,25202403

main87209-48440iTAZA25..EUR,GEN202302-202403

main87209-78060iTAZA25202111-202301

main87245-42680iAAZH21,26202403

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501iAAZA2#202403-202506

87246HOSE, HEATER WATER, OUTLET

main87209-42260iMAZA20202201-202403

main87209-42300iAAZA2#,AAZH20,25..CHI,EUR,GEN202111-202403

main87209-42330iAAZH21,26202403

5 parts on this diagram · 6 diagrams in section
