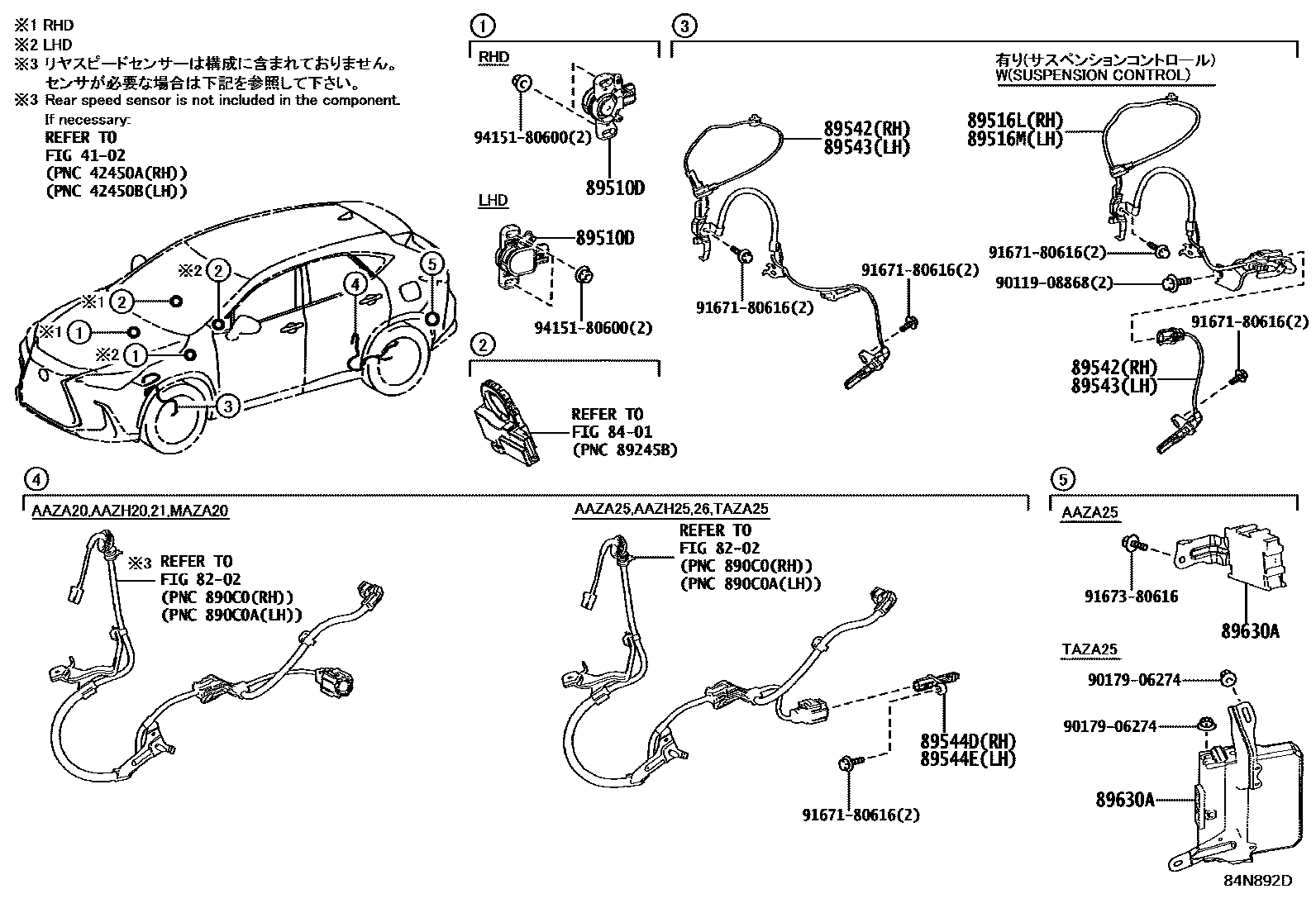

ABS & VSC
4102REAR AXLE SHAFT & HUB
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH
main89516-78070iAAZH20,25..LHD; AAZH25,26..RHD;AAZH26..LHD..EUR; AAZH25..LHD..(EUR,GEN); AAZH26;TAZA25..GCC;AAZH20,25..RHD; TAZA25..EUR,GEN202403
"F SPORT"*(F); "F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK); OVERTRAIL PACKAGE; OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH
main89516-78080iAAZH20,25..LHD; AAZH25,26..RHD;AAZH26..LHD..EUR; AAZH25..LHD..(EUR,GEN); AAZH26;TAZA25..GCC;AAZH20,25..RHD; TAZA25..EUR,GEN202403
"F SPORT"*(F); "F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK); OVERTRAIL PACKAGE; OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
89542SENSOR, SPEED, FRONT RH
*614
main89542-78040iAAZH20,25..LHD; AAZH25,26..RHD;AAZH26..LHD..EUR; AAZH25..LHD..(EUR,GEN); AAZH26;TAZA25..GCC;AAZH20,25..RHD; TAZA25..EUR,GEN202403
"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),*614; "F SPORT"*(F),*614; *614; OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),*614; OVERTRAIL PACKAGE,*614
89543SENSOR, SPEED, FRONT LH
*614
main89543-78040iAAZH20,25..LHD; AAZH25,26..RHD;AAZH26..LHD..EUR; AAZH25..LHD..(EUR,GEN); AAZH26;TAZA25..GCC;AAZH20,25..RHD; TAZA25..EUR,GEN202403
"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),*614; "F SPORT"*(F),*614; *614; OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),*614; OVERTRAIL PACKAGE,*614
89544DSENSOR, SKID CONTROL, REAR RH
89544ESENSOR, SKID CONTROL, REAR LH
89630ACOMPUTER ASSY, 4WD
9011908868
main90119-08868
9017906274
main90179-06274
9167180616
main91671-80616
9167380616
main91673-80616
9415180600
main94151-80600
16 parts on this diagram · 2 diagrams in section
