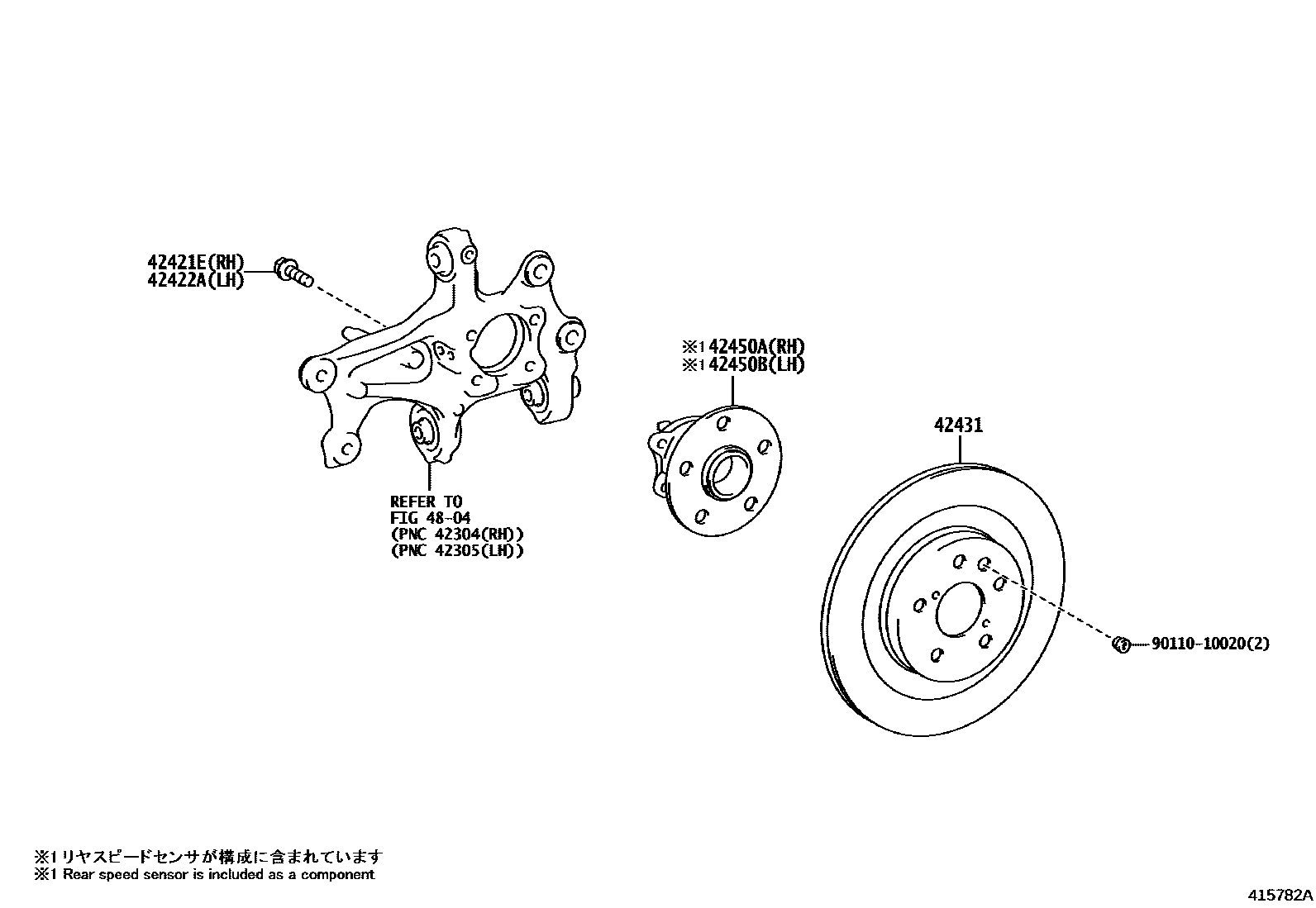

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12016×4iAAZA2#202403-202506

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12016×4iAAZA2#202403-202506

42431DISC, REAR

main42431-78030×2iAAZA2#202403-202506

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-78010iAAZA25202403-202506

main42450-78010iAAZA20,AAZH20,21,MAZA20202111-202403

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-78010iAAZA25,AAZH25,26,TAZA25..CHI,EUR,GEN202111-202403

main42450-78010iAAZH20,21,MAZA20202403

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

9011010020

main90110-10020

7 parts on this diagram · 4 diagrams in section
